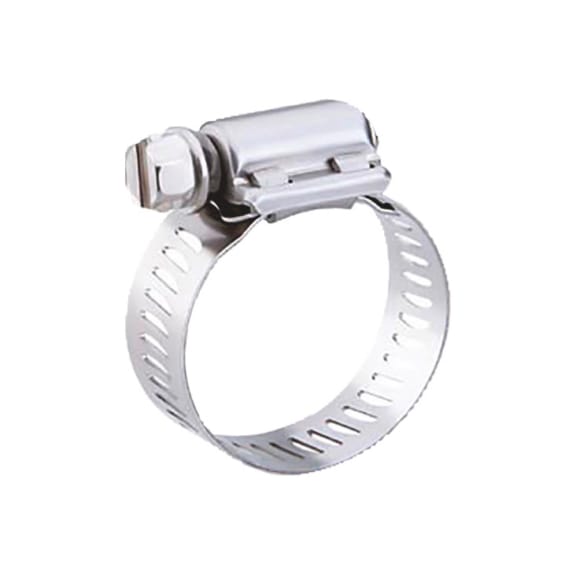

Worm Drive Hose Clamp | Stainless Steel Construction | Enhanced Strength & Stability | by Wurth
The Worm Drive Hose Clamp is designed for automotive and industrial applications, featuring durable stainless steel construction for enhanced strength and stability. With a unique saddle design that interlocks into the band, it ensures even distribution of sealing pressure and higher sealing pressure with lower applied torque. Ideal for securing hoses in machinery and equipment, this clamp is built to last and reduce environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material of clamp band: Stainless steel
- Material of screw: Steel
- Surface of the screw: Zinc plated
- Material of housing: Stainless steel
- Width of band: 1/2 inch (approx. 13 mm)
- Min./max. grip range: 14-27 mm
- Drive type: Slot/hexagon
- Width across flats (SW): 5/16 inch (approx. 8 mm)
- Dimensions (H x L x W): 10mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Housing design provides strength and stability with stainless housing and saddle clinched at 4 points to eliminate housing lift and twist.
- Saddle interlocks into band for enhanced strength.
- Hexagon head steel screw with blade driver slot for ease of installation.
- Extra strength and smoother engagement with more threads per screw and increased torque strength.
- Thicker, stronger shaft with shoulder to prevent jamming into housing.
- Stainless steel band with arcial slots for added strength and smoother worm-gear engagement.
- Even distribution of sealing pressure with no excessive pressure points.
- Higher sealing pressure with lower applied torque.
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper fit and secure fastening.
Applications
- Automotive hose securing
- Industrial hose and coupling fastening
- General purpose hose clamping in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
- Corrosion resistance extends product life, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth worm-drive hose clamp is available now for immediate purchase. Ideal for automotive and industrial hose securing applications.
