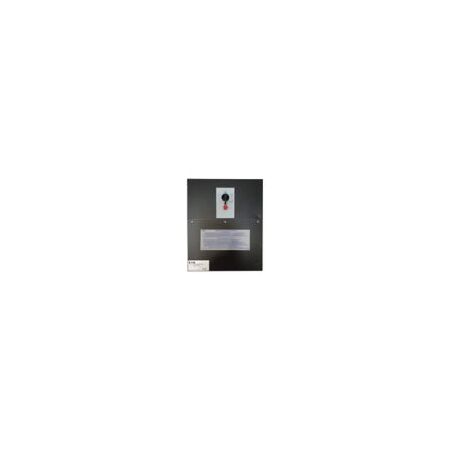

Wraparound Maintenance Bypass Switch | 3-Phase Input | 125A Max Current | Zero Transfer Time | Eaton
The Wraparound Maintenance Bypass Switch features a 3-phase input and 125A maximum current—ideal for data centers and industrial electrical systems. Built for seamless maintenance without power interruption, it ensures efficient power management with zero transfer time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wraparound Maintenance Bypass Switch | 3-Phase Input | 125A Max Current | Zero Transfer Time | Eaton
Brand: Eaton
SKU: MBS31SB125BW
Alternatively Known As: Maintenance Bypass Switch, MBP Enclosure, Eaton Bypass Enclosure, Wraparound Maintenance Bypass, UPS Bypass Switch
Technical Specifications
- Product Name: Eaton Hotswap MBP Maintenance Bypass Enclosure Wraparound Dual Input
- Input nominal voltage: 230V default (220/230/240V)
- Nominal frequency: 50-60 Hz
- Input frequency range: 50Hz-60Hz
- Number of outputs hardwired: 1
- Output nominal voltage: 230V default (220/230/240V)
- Electric current - max: 125A
- Feed type: 2
- Transfer time: 0 ms
- Communication: Voltage-free relay interlock
- Potential free switch contact: Yes
- Altitude: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Input voltage range: 192-264 V
- Output frequency: 50-60 Hz
- Output voltage range: 192-264 V
- Phase (input): Three-phase
- Phase (output): Single-phase
- Construction type: Free standing model
- Input connection: Hardwired/fixed connection
- Dimensions (H x L x W): 492mm x 312mm x 448mm
- Weight: 25 kg
Key Features
- Wraparound maintenance bypass enclosure with dual input
- Supports 3-phase input and single-phase output
- 125A maximum electric current
- Hardwired/fixed input connection
- Zero transfer time (0 ms) for seamless switching
- Voltage-free relay interlock communication
- Potential free switch contact included
- Suitable for altitudes 0-3000m with temperature ranges 0° to 40°C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safety.
Applications
- Data centers and server rooms requiring maintenance bypass
- Industrial and commercial electrical systems
- UPS systems with 3-phase input and single-phase output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables maintenance without power interruption, reducing downtime and energy waste
- Supports efficient power management in critical systems
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton Wraparound MBS Maintenance Bypass Enclosure is available now for immediate purchase. Ideal for industrial and commercial electrical maintenance applications.
