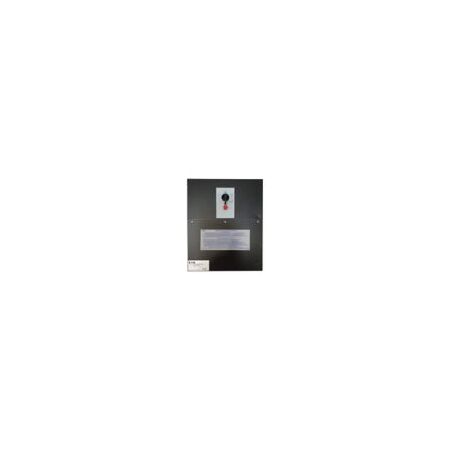

Wraparound Maintenance Bypass Switch | 63A Max Current | 10kVA Power Rating | Bottom Entry by Eaton
The Wraparound Maintenance Bypass Switch features a 63A maximum current and 10kVA power rating—ideal for uninterrupted power supply systems. Built for industrial and commercial applications, it allows maintenance without power interruption, ensuring efficient power management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wraparound Maintenance Bypass Switch | 63A Max Current | 10kVA Power Rating | Bottom Entry by Eaton
Brand: Eaton
SKU: MBS11SB63BW
Alternatively Known As: Maintenance Bypass Switch, UPS Bypass Enclosure, Eaton MBP Wraparound Bypass
Technical Specifications
- Input nominal voltage: 230V default (220/230/240V)
- Input voltage range: 192-264 V
- Output nominal voltage: 230V default (220/230/240V)
- Output voltage range: 192-264 V
- Nominal frequency: 50-60 Hz
- Input frequency range: 50Hz-60Hz
- Output frequency: 50-60 Hz
- Phase (input): Single-phase
- Phase (output): Single-phase
- Feed type: 2
- Number of outputs hardwired: 1
- Auto shutdown function: No
- Altitude operating range: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Dimensions (H x L x W): 492mm x 197mm x 284mm
- Weight: 10 kg
Key Features
- Single-phase input and output
- 63A maximum electric current
- 10kVA power rating
- Bottom entry with 16mm² cable capacity
- Hardwired/fixed input connection
- Voltage-free relay interlock communication
- Potential free switch contact included
- Zero transfer time (0 ms)
- Free standing model construction
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safe operation.
Applications
- Used with Eaton UPS models 9155, 91PS, 9SX
- Industrial and commercial power management systems
- Maintenance bypass for uninterrupted power supply systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables maintenance without power interruption, reducing downtime and energy waste
- Supports efficient power management in critical systems
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton Wraparound MBS Maintenance Bypass Enclosure is available now for immediate purchase. Ideal for industrial and commercial UPS maintenance applications.
