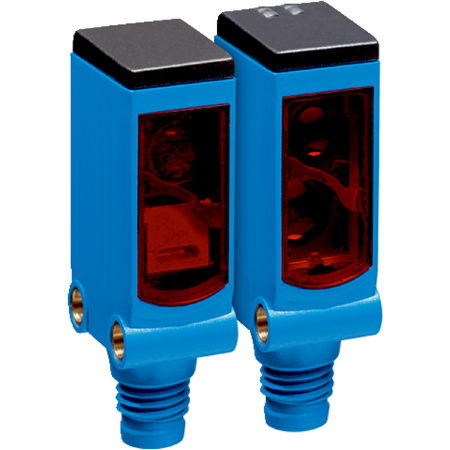

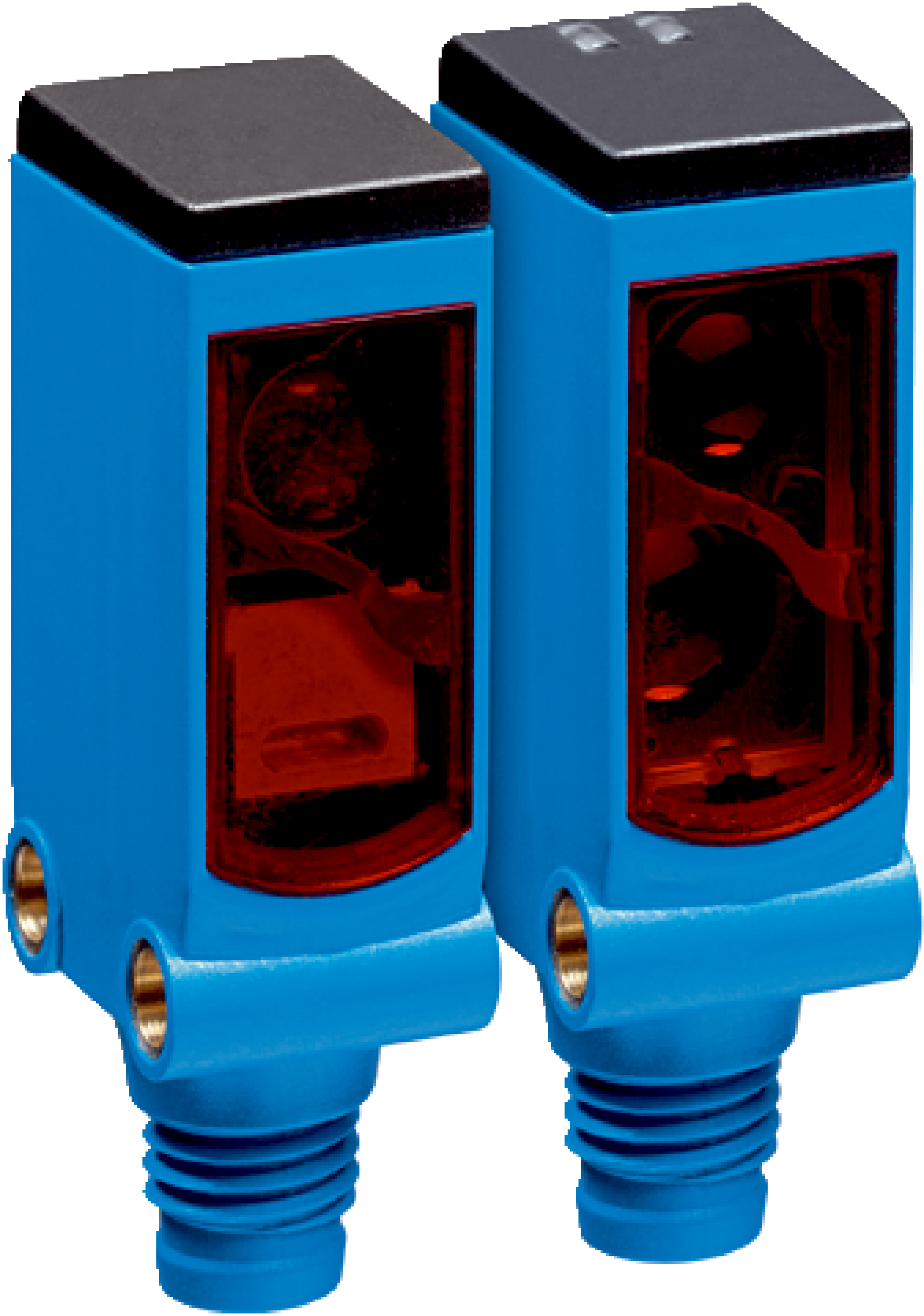

WSE4S-3P2230 | Photoelectric sensors
The SICK WSE4S-3P2230 is a slim through-beam photoelectric sensor offering reliable object detection with a sensing range up to 4.5 meters, featuring robust IP67/IP66 rated ABS housing and fast switching capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WSE4S-3P2230 | Photoelectric sensors
Brand: SICK
SKU: 1067843
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4S sensor, industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Protection class: III
- Output type: PNP digital output
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Enclosure rating: IP67, IP66
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim plastic ABS housing with IP67 and IP66 protection
- Fast response time under 0.5 ms with 1000 Hz switching frequency
- PNP digital output with light/dark switching mode
- Wide operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 20 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE4S-3P2230 photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
