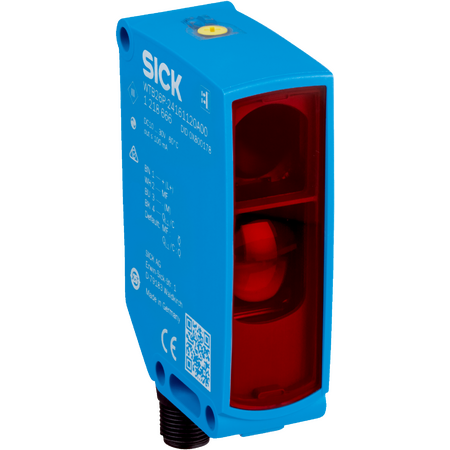

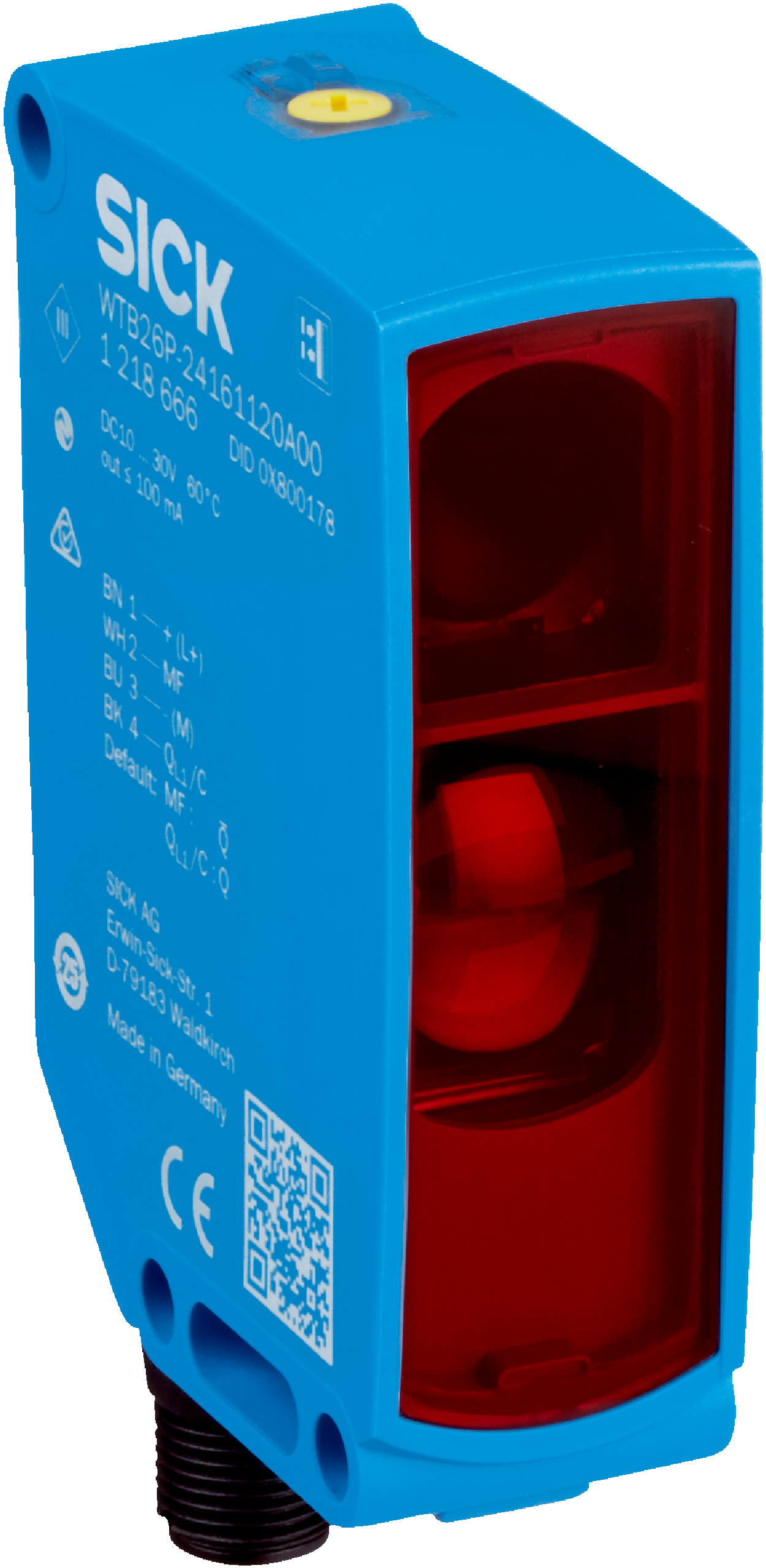

WTB26I-24116120ZZZ | Photoelectric sensors
The SICK WTB26I-24116120ZZZ is a durable photoelectric proximity sensor featuring background suppression, adjustable sensing range up to 2 meters, and robust IP69 protection, ideal for industrial automation and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB26I-24116120ZZZ | Photoelectric sensors
Brand: SICK
SKU: 1222814
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Infrared proximity sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 2000 mm adjustable; recommended 200 mm to 800 mm
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 14 mm at 1000 mm distance
- Switching outputs: 2 complementary push-pull (PNP/NPN), dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Response time: ≤ 500 µs; switching frequency up to 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®; front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 30 mm to 2000 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 14 mm diameter at 1000 mm
- BluePilot teach-turn adjustment for easy sensing range setting
- Dual complementary push-pull digital outputs (PNP/NPN)
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB26I-24116120ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
