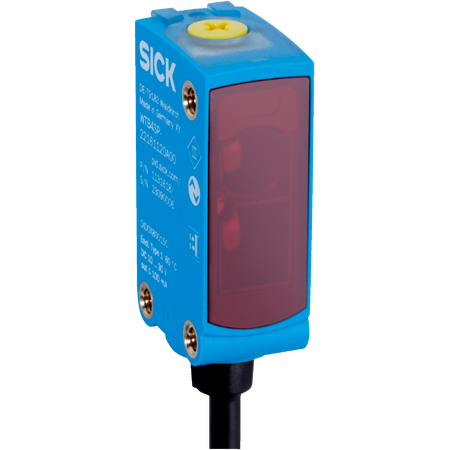

WTB4SP-5H162220A00 | Photoelectric sensors

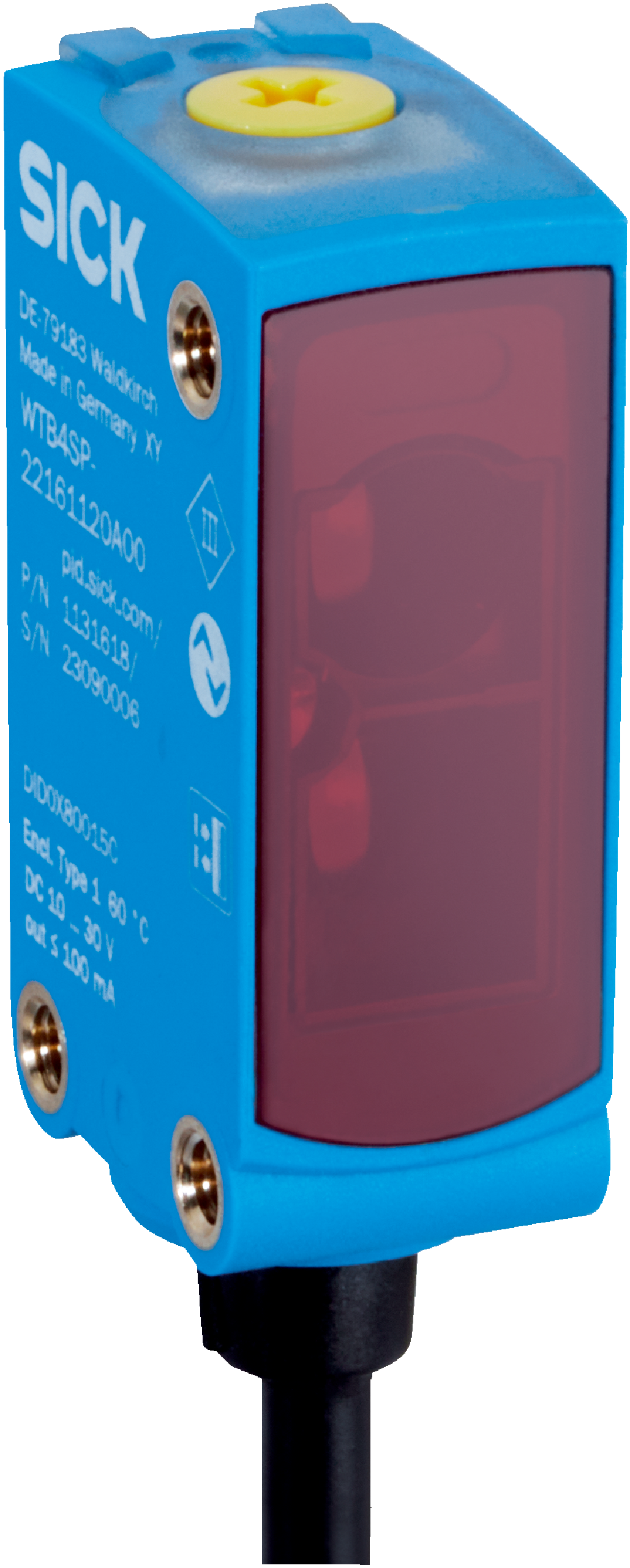

The SICK WTB4SP-5H162220A00 is a high-precision photoelectric proximity sensor featuring background suppression and NarrowBeam technology, ideal for industrial object detection with IO-Link communication and robust IP66/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB4SP-5H162220A00 | Photoelectric sensors
Brand: SICK
SKU: 1142135
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, NarrowBeam photoelectric sensor, IO-Link photoelectric sensor, SICK proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 130 mm, adjustable switching threshold 10 mm to 130 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 1.8 mm at 70 mm distance
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Cable: 4-wire, 3 m length, PVC insulated
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and NarrowBeam technology
- Sensing range from 4 mm to 130 mm with adjustable switching threshold
- PinPoint LED visible red light with 635 nm wavelength
- High precision with smallest detectable object size of 0.1 mm at 70 mm distance
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Robust housing made of plastic VISTAL® with IP66/IP67 protection rating
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- LED indicators for sensing range, operating status, and object detection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny, poorly remitting, and tilted objects
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SP-5H162220A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
