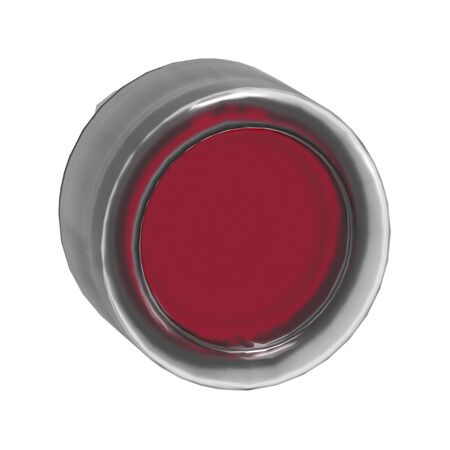

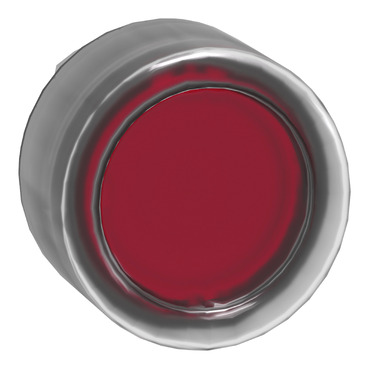

XB4 Push Button Head Spring Return Red | Illuminated Actuator | 22mm Mounting | by Clipsal
The XB4 Push Button Head Spring Return Red is designed for illuminated push button applications, featuring a durable metal construction and a spring return mechanism for momentary operation. Ideal for industrial control panels and automation systems, this red actuator provides clear visual indication and universal LED compatibility, ensuring reliable performance in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: XB4 Push Button Head Spring Return Red | Illuminated Actuator | 22mm Mounting | by Clipsal
Brand: Clipsal
SKU: SCHZB4BW543
Alternatively Known As: XB4 push button, Harmony XB4 red push button, spring return push button, SCHZB4BW543, Clipsal red push button head
Technical Specifications
- Actuator type: Head for illuminated push button
- Operation: Spring return (momentary)
- Material: Metal
- Color: Red flush
- Mounting diameter: 22mm
- LED compatibility: Universal
- Protection: Clear boot
- Marking: Unmarked
- Dimensions (H x L x W): 29mm x 40mm x 29mm
- Weight: 0.1 kg
Key Features
- Head for illuminated push button
- Spring return mechanism for momentary operation
- Red flush actuator for clear visual indication
- 22mm diameter mounting
- Metal construction for durability
- Universal LED compatibility
- Clear boot for protection
- Unmarked for flexible application
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards and correct operation.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Manufacturing equipment
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Universal LED compatibility supports energy-efficient indicator solutions
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal XB4 Push Button Head Spring Return Red SCHZB4BW543 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery applications.
