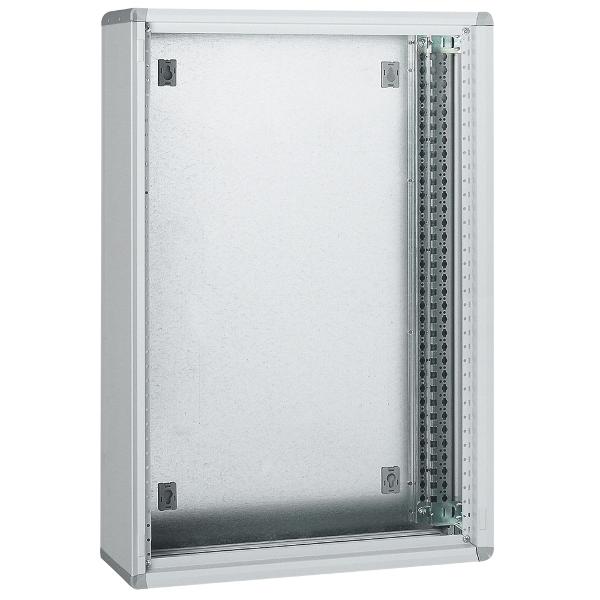

XL³ IP43 Metal Enclosure 800 | 24 Module Capacity | Fireproof to 750°C | RAL 7035 Color | @Each of 1 | by Legrand
The XL³ IP43 Metal Enclosure 800 is designed for robust electrical distribution, featuring a 24 module capacity and fireproof protection up to 750°C. Ideal for public buildings and commercial installations, this durable metal enclosure ensures safety and compliance with AS/NZS 3000 standards, making it a reliable choice for electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: XL³ IP43 Metal Enclosure 800 | 24 Module Capacity | Fireproof to 750°C | RAL 7035 Color | @Each of 1 | by Legrand
Brand: Legrand
SKU: 20402
Alternatively Known As: XL3 800 Metal Distribution Enclosure, Legrand XL3 IP43 Cabinet, XL³ 800 Electrical Enclosure
Technical Specifications
- Protection rating: IP43 and IK08 with kit and door, IP30 and IK07 without door
- Fire resistance: 750 °C for 5 seconds (IEC 60695-2-1)
- Material: Metal enclosure
- Color: Cabinet RAL 7035, plinth RAL 7004
- Module capacity: 24 modules per row
- Supplied flat with uprights, adjustable cable entry plate, and joining accessories
- Dimensions (H x L x W): 660mm x 230mm x 1250mm
- Weight: 28 kg
Key Features
- IP43 and IK08 protection rating with kit and door
- Fireproof to 750 °C for 5 seconds according to IEC 60695-2-1
- Metal enclosure with RAL 7035 cabinet and RAL 7004 plinth
- Capacity for 24 modules per row
- Supplied flat with functional uprights fitted on the back
- Adjustable cable entry plate and joining accessories included
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Installation in public buildings
- Electrical distribution and protection systems
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements
- Fireproof design enhances safety and reduces risk of fire damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand XL³ IP43 Metal Enclosure 800 24 Module/Row is available for immediate purchase, ideal for electrical distribution in public and commercial buildings.
