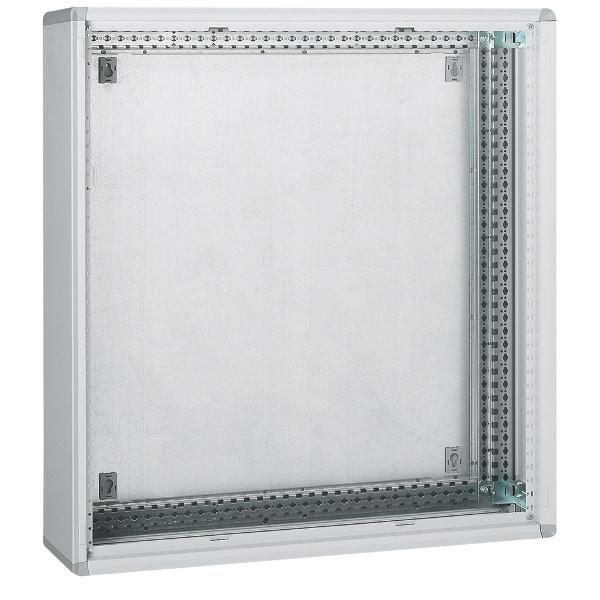

XL³ IP43 Metal Enclosure 800 | IP43 & IK08 Rated | Fireproof to 750°C | 24/36 Module Capacity | @Each of 1 | by Legrand
The XL³ IP43 Metal Enclosure 800 is designed for robust electrical distribution, featuring an IP43 and IK08 protection rating, ensuring durability in public and commercial installations. With a fire resistance of 750°C for 5 seconds, this enclosure is perfect for safeguarding electrical components while accommodating 24 and 36 modules per row. Its metal construction and adjustable cable entry plate make it a reliable choice for professional electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: XL³ IP43 Metal Enclosure 800 | IP43 & IK08 Rated | Fireproof to 750°C | 24/36 Module Capacity | @Each of 1 | by Legrand
Brand: Legrand
SKU: 20407
Alternatively Known As: XL3 800 Metal Distribution Enclosure, Legrand XL3 IP43 Cabinet, XL³ 800 Electrical Enclosure
Technical Specifications
- Protection rating: IP43 - IK08 with kit and door, IP30 - IK07 without door
- Fire resistance: 750 °C for 5 seconds (IEC 60695-2-1)
- Capacity: 24 and 36 modules per row
- Finish: Cabinets RAL 7035, plinths RAL 7004
- Supplied flat with functional uprights fitted on the back
- Includes adjustable cable entry plate and joining accessories
- Dimensions (H x L x W): 910mm x 230mm x 1250mm
- Weight: 32 kg
Key Features
- IP43 and IK08 protection rating with kit and door
- Fireproof to 750 °C for 5 seconds according to IEC 60695-2-1
- Metal enclosure construction
- Capacity for 24 and 36 modules per row
- RAL 7035 cabinets with RAL 7004 plinths
- Supplied flat with functional uprights fitted on the back
- Adjustable cable entry plate and joining accessories included
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Installation in public buildings
- Electrical distribution and protection
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements
- Fireproof design enhances safety and reduces risk of fire damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand XL³ IP43 Metal Enclosure 800 is available for immediate purchase, ideal for electrical distribution in public buildings and commercial installations.
