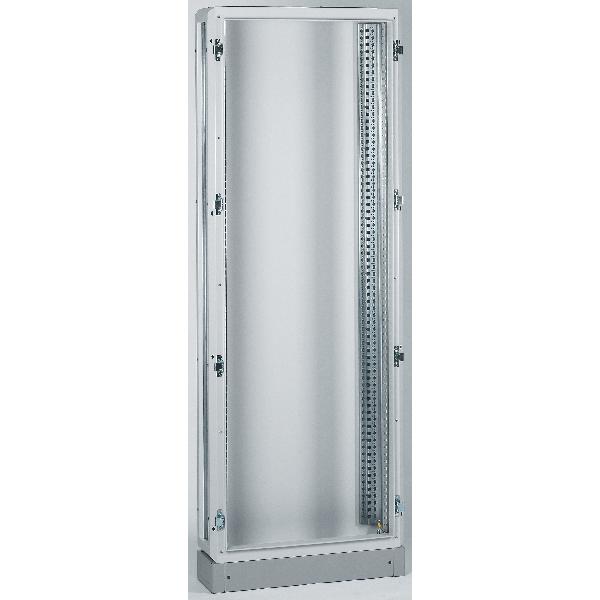

XL³ IP55 Metal Enclosure 800 | 24 Module Capacity | IK08 Impact Resistance | RAL 7035 Finish | @Each of 1 | by Legrand
The XL³ IP55 Metal Enclosure 800 is designed for robust electrical distribution in industrial and urban settings. With a 24 module capacity and IK08 impact resistance, this enclosure ensures safety and durability. Its fireproof design withstands temperatures up to 750°C for 5 seconds, making it ideal for public building installations and compliant with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: XL³ IP55 Metal Enclosure 800 | 24 Module Capacity | IK08 Impact Resistance | RAL 7035 Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 20453
Alternatively Known As: XL3 800 IP55 Metal Distribution Enclosure, Legrand XL3 24 Module Cabinet, IP55 Electrical Enclosure
Technical Specifications
- IP Rating: IP55
- Impact Resistance: IK08 on door
- Material: Metal enclosure with RAL 7035 finish
- Plinth Color: RAL 7004
- Device Capacity: Up to 630 A
- Fire Resistance: 750°C for 5 seconds (IEC 60695-2-1)
- Module Capacity: 24 modules per row
- Installation: Suitable for industrial and urban indoor use
- Joinable horizontally
- Dimensions (H x L x W): 1595mm x 225mm x 700mm
- Weight: 40.6 kg
Key Features
- IP55 rated distribution cabinet with cable sleeves and doors
- IK08 impact resistance on door
- Metal enclosure finished in RAL 7035 with plinths in RAL 7004
- Supports devices up to 630 A
- Fireproof to 750°C for 5 seconds according to IEC 60695-2-1
- Modular capacity of 24 modules per row
- Can be joined horizontally for extended configurations
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial indoor electrical distribution
- Urban indoor electrical installations
- Public building electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction extends product lifespan reducing waste
- Fireproof design enhances safety and reduces risk of fire damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand XL³ IP55 Metal Enclosure 800 24 Module is available for immediate purchase, ideal for industrial, urban, and public building electrical distribution applications.
