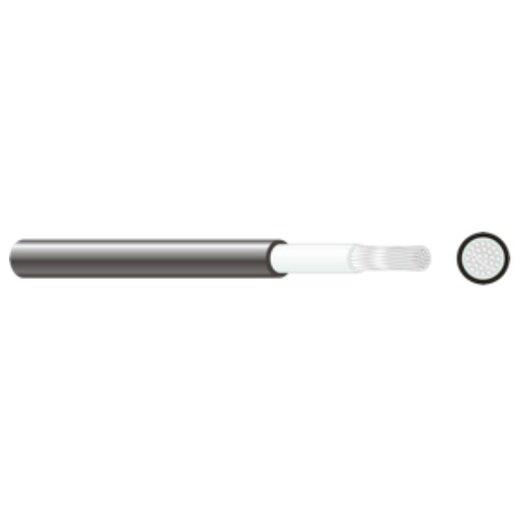

XLPE Aluminium 240mm 4 Core Power Cable | UV Stabilised | Halogen Free Insulation | @KM of 0.10 | by Electra Cables
The XLPE Aluminium 240mm 4 Core Power Cable is designed for high-capacity power distribution, featuring a UV stabilised sheath and halogen-free insulation for enhanced safety. Ideal for commercial and industrial applications, this cable is perfect for underground and overhead mains power supply, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: XLPE Aluminium 240mm 4 Core Power Cable | UV Stabilised | Halogen Free Insulation | @KM of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: ALX42400-B
Alternatively Known As: 240mm 4 Core Aluminium XLPE Cable, ALX42400-B, 4C 240mm2 Aluminium Power Cable, XLPE 4 Core Aluminium Mains Cable
Technical Specifications
- Conductor: Aluminium, stranded
- Insulation: Cross-linked Polyethylene (XLPE)
- Core size: 240mm²
- Number of cores: 4
- Voltage rating: 0.6/1kV
- Sheath: UV stabilised, halogen free
- Operating temperature: -25°C to +90°C
- Complies with AS/NZS 4026 and AS/NZS 5000.1
- Dimensions (H x L x W): 60mm x 1000mm x 60mm
- Weight: 1.8 kg
Key Features
- XLPE insulated aluminium conductor for high current capacity
- 4 core design for three-phase and neutral applications
- UV stabilised and suitable for direct burial
- Low smoke, halogen free insulation for enhanced safety
- High resistance to chemicals, moisture, and abrasion
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations. Proper cable handling and termination tools are required.
Applications
- Power distribution in commercial and industrial installations
- Underground and overhead mains power supply
- Suitable for use in switchboards and substations
- Ideal for large infrastructure projects requiring high current capacity
Standards & Compliance
- Complies with AS/NZS 5000.1 – Electric cables – Polymeric insulated – For working voltages up to and including 0.6/1 (1.2) kV
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke, halogen free insulation reduces toxic emissions in case of fire
- Aluminium conductor is lightweight and recyclable
- UV stabilised sheath extends cable lifespan and reduces replacement frequency
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Electra Cables XLPE Aluminium 240mm 4 Core Power Cable (ALX42400-B) is available for immediate purchase. Ideal for high-capacity power distribution in commercial, industrial, and infrastructure projects.
