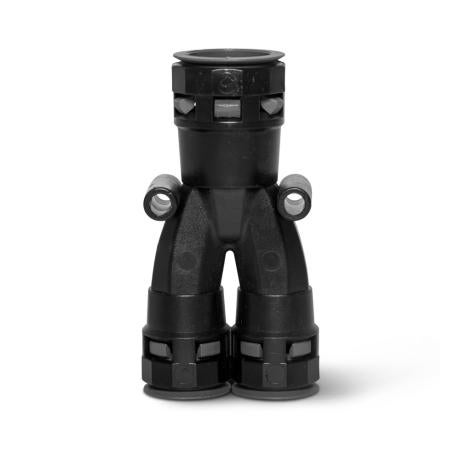

Y-Dist Nylon Conduit Connector | 20mm to 2x16mm | IP66 Rated | Easy Assembly | by Wattmaster
The Y-Dist Nylon Conduit Connector is designed for efficient branching from a 20mm conduit to two 16mm conduits, making it ideal for industrial and commercial electrical installations. Manufactured from high-quality polyamide (Nylon 6), it features an IP66 protection rating and is easy to assemble with its quick-click design. Perfect for ensuring safe and reliable conduit connections in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Y-Dist Nylon Conduit Connector | 20mm to 2x16mm | IP66 Rated | Easy Assembly | by Wattmaster
Brand: Wattmaster
SKU: ALCYKD-171212N
Alternatively Known As: Y Distributor Nylon Conduit Connector, Nylon Y Conduit Splitter, Nylon Conduit Branch Connector
Technical Specifications
- Material: Polyamide (Nylon 6)
- Conduit sizes: 20mm main conduit, 2x16mm branch conduits
- Protection rating: IP66 standard, IP68/IP69K with ORJ sealing ring
- Temperature range: -40°C to +105°C (150°C short term)
- Compliance: AS/IEC 60204 (Safety of machinery)
- Includes two fixing holes for bolt attachment
- Dimensions (H x L x W): 40mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Y distributor connectors for connecting one large conduit to two smaller conduits
- Manufactured from high-quality polyamide (Nylon 6)
- Includes two holes for fixing with bolts
- Easy click quick assembly and removal
- High tensile strength and watertightness
- IP66 protection or IP68/IP69K protection with ORJ sealing ring
- Free of halogens, phosphorus, and cadmium
- Temperature range from -40°C to +105°C (150°C short term)
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Electrical conduit installations requiring branching from a single large conduit to two smaller conduits
- Industrial and commercial electrical wiring systems
- Machinery safety conduit connections
Standards & Compliance
- Complies with AS/NZS 60204 - Safety of machinery electrical equipment standards
Environmental Benefits
- Free of halogens, phosphorus, and cadmium, reducing environmental toxicity
- Durable nylon construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Y-Dist Nylon Conduit Connector 20mm + 2x16mm is available for immediate purchase, ideal for electrical conduit branching in industrial and commercial applications.
