Trade Discount 17%

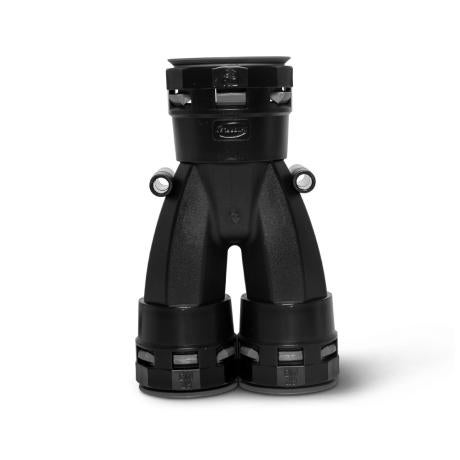

Y-Dist Nylon Conduit Distributor | 40mm Main & 2x32mm Branch | IP66 Rated | by Wattmaster
The Y-Dist Nylon Conduit Distributor is designed for efficient branching from a 40mm conduit to two 32mm conduits, making it ideal for industrial and commercial electrical installations. Constructed from high-quality polyamide (Nylon 6) and featuring an IP66 protection rating, this distributor ensures durability and watertightness, perfect for compliance with safety standards in machinery and equipment wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Y-Dist Nylon Conduit Distributor | 40mm Main & 2x32mm Branch | IP66 Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCYKD-362929N
Alternatively Known As: Nylon Conduit Y Distributor, Nylon Conduit Branch Connector, Y Splitter for Nylon Conduit
Technical Specifications
- Material: Polyamide (Nylon 6)
- Conduit sizes: 40mm main conduit, 2x 32mm branch conduits
- Protection rating: IP66 standard, IP68/IP69K with ORJ sealing ring
- Temperature range: -40°C to +105°C (150°C short term)
- Compliant with AS/IEC 60204 (Safety of machinery)
- Includes two fixing holes for bolt attachment
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 0.1 kg
Key Features
- Y Distributor connectors for connecting a single large conduit to two smaller conduits
- Manufactured from high-quality polyamide (Nylon 6)
- Includes two holes for fixing with bolts
- Easy click quick assembly and removal
- High tensile strength and watertightness
- IP66 protection or IP68/IP69K protection with ORJ sealing ring
- Free of halogens, phosphorus, and cadmium
- Temperature range: -40°C to +105°C (150°C short term)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP protection.
Applications
- Electrical conduit installations requiring branching from a larger conduit to two smaller conduits
- Industrial and commercial electrical wiring systems
- Machinery and equipment wiring conforming to safety standards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Free of halogens, phosphorus, and cadmium, reducing environmental toxicity
- Durable nylon construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Y-Dist Nylon Conduit Distributor 40mm + 2x32mm is available for immediate purchase, ideal for electrical conduit branching in industrial and commercial applications.
