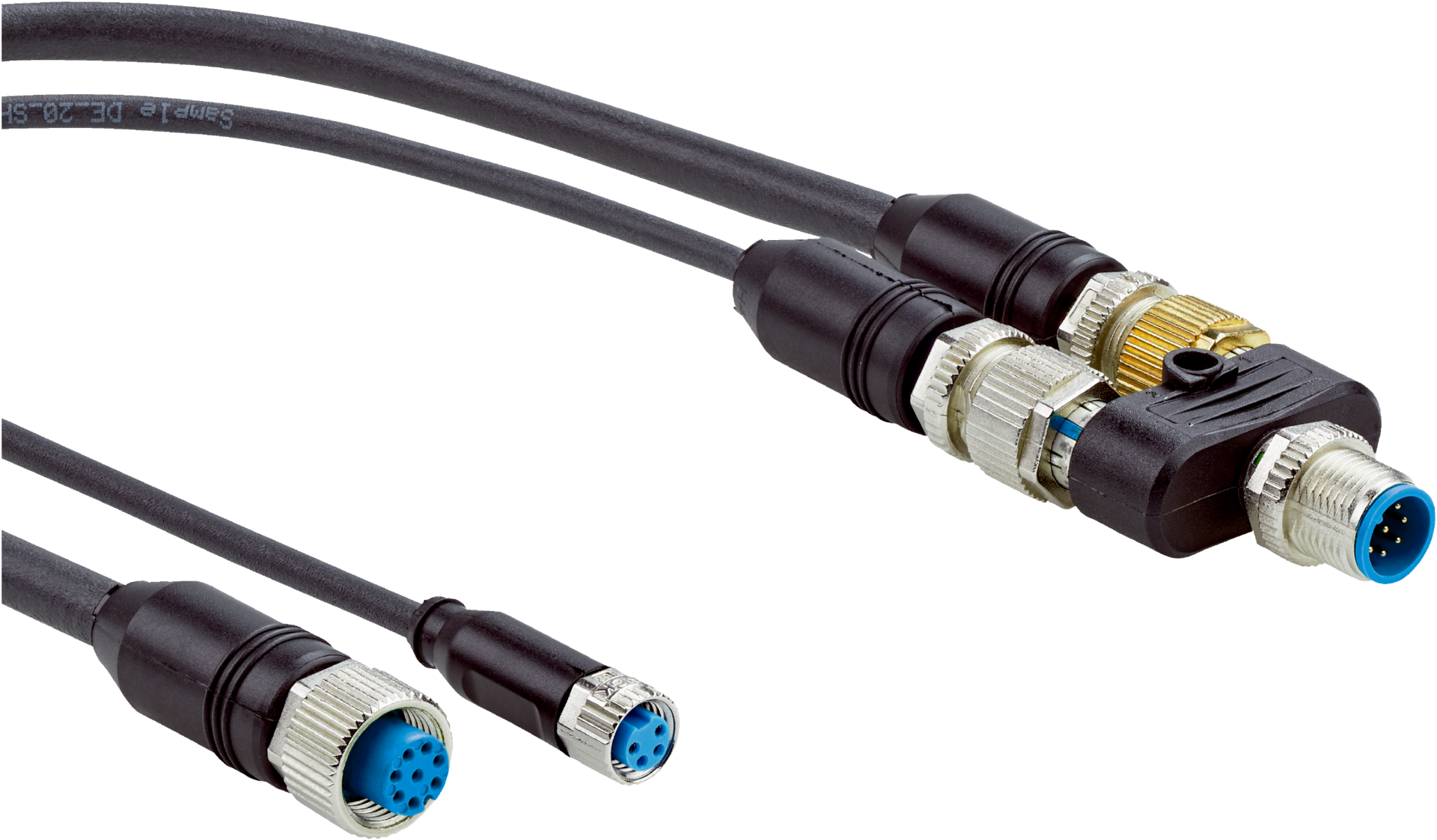

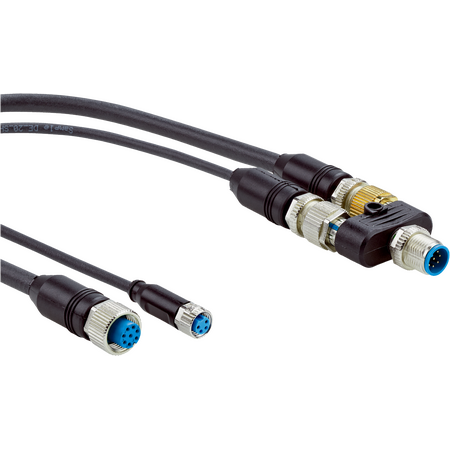

Y-Distributor Cable Assembly | M12 to M8 Y-Splitter | IP67 Rated | Shielded for Interference Protection | by SICK
The Y-Distributor Cable Assembly is designed for seamless connectivity in industrial automation systems, featuring a robust M12 to M8 Y-splitter configuration. With an IP67 rating for dust and water resistance, this cable ensures reliable performance in harsh environments, making it ideal for sensor networking and machine connectivity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Y-Distributor Cable, Sensor Y-Cable, M12 to M8 Y-Splitter Cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, A-coded
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Female connector, M8, 4-pin, A-coded
- Connecting cable length: 0.2 m
- Cable material: PUR, halogen-free
- Conductor cross section: 0.25 mm²
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Shielding: Shielded
- Reference voltage: ≤ 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Contamination rating: 3
- Operating temperature: –25 °C to +80 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 20mm x 200mm x 50mm
- Weight: 0.1 kg
Key Features
- Shielded cable for interference protection
- Halogen-free PUR cable material for safety and durability
- IP67 rated enclosure for dust and water resistance
- Flexible use in temperatures from -25°C to +80°C
- Multiple connector types: Male M12 8-pin, Female M12 8-pin, Female M8 4-pin
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Sensor networking and signal distribution
- Machine connectivity in manufacturing environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable material reduces environmental impact in case of disposal or fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A28-C20S01MYAAX Y-Distributor Cable Assembly is available for immediate purchase, ideal for industrial automation and sensor networking applications.
