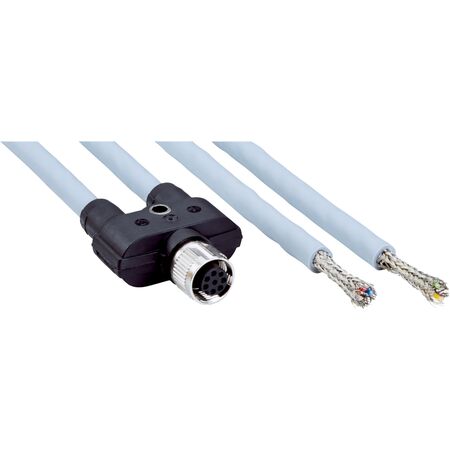

Y-junctions M12 8-Pin A-Coded | 2m PUR Cable | IP65/IP67 Rated | by SICK
Y-junctions with M12 8-pin A-coded female connector and 2m PUR cable are perfect for industrial automation systems. Designed for reliable sensor connections, this shielded cable ensures minimal electromagnetic interference and operates in a wide temperature range of -5 °C to +70 °C. Ideal for factory automation and machine building, it features robust materials for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, A-coded
- Connection type head B: Flying leads
- Connection type head C: Flying leads
- Connecting cable length: 2 m
- Cable material: PUR
- Conductor cross section: 0.25 mm²
- Housing material: PUR
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Shielded
- Bending radius (flexible use): 57 mm
- Enclosure rating: IP65 / IP67
- Operating temperature (flexible use): -5 °C to +70 °C
- Operating temperature (stationary): -40 °C to +80 °C
- Dimensions (H x L x W): 20mm x 2000mm x 50mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, A-coded for secure connection
- 2 m PUR connecting cable with 0.25 mm² conductor cross section
- Shielded cable for interference protection
- High durability with zinc die-cast, nickel-plated locking nut
- Robust PUR housing and cable material
- IP65 / IP67 rated for dust and water resistance
- Wide operating temperature range: -5 °C to +70 °C (flexible use), -40 °C to +80 °C (stationary)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems requiring reliable sensor connections
- Factory automation for signal distribution
- Machine building and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A28-020XXXXLEAX Y-junction is available for immediate purchase, ideal for industrial automation and sensor connection applications.
