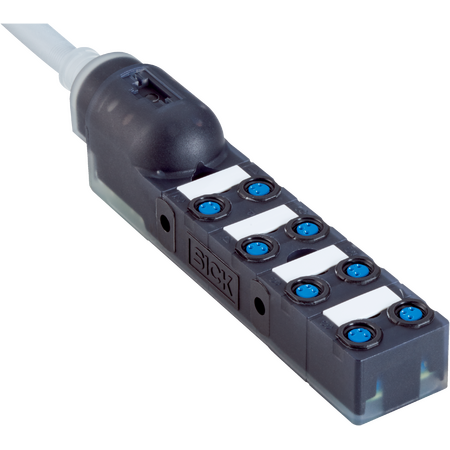

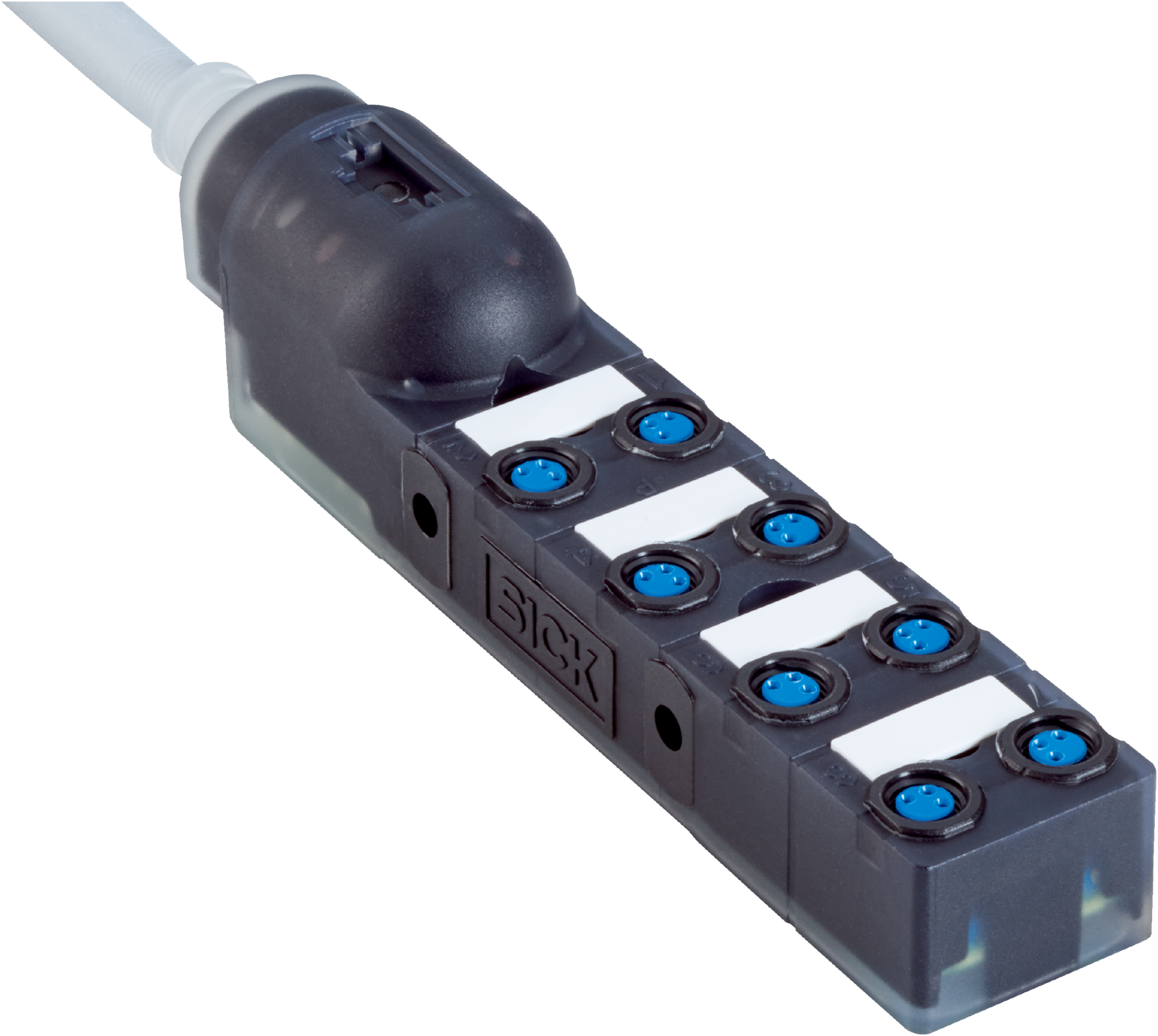

Y8A38A2-LXXXUCA050 | Connectors and cables
The SICK Y8A38A2-LXXXUCA050 is a robust 8-slot connector and cable assembly designed for industrial automation, featuring a 5 m halogen-free PUR cable, IP65/IP67 protection, and high durability for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Y8A38A2-LXXXUCA050 | Connectors and cables
Brand: SICK
SKU: 2115729
Alternatively Known As: 8-slot M8 Connector Cable Assembly, Industrial Sensor Connector Cable, SICK 8-slot Cable Harness
Technical Specifications
- Switching output: PNP
- Shielding: Unshielded
- Number of slots: 8
- Slot connection type: M8, 3-pin, A-coded, female connector
- Root port connection type: Flying leads
- Connecting cable: 5 m, 10-wire, PUR, halogen-free
- Cable diameter: 9.2 mm
- Cable color: Gray
- Conductor cross section: 2 x 0.75 mm² + 8 x 0.34 mm²
- Traversing speed: 2 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 7.5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature drag chain operation: –5 °C to +60 °C
- Distributor box temperature: –20 °C to +72 °C
- Bending cycles: ≤ 5,000,000
- Tightening torque slots: 0.4 Nm
- Reference voltage: ≤ 24 V DC
- Current loading: 10 A
- Overvoltage category: III
- Enclosure rating: IP65 / IP67
- UL File No.: E238799
- Authorizations: UL, CE
- Dimensions (H x L x W): 30mm x 5000mm x 100mm
- Weight: 0.3 kg
Key Features
- 8-slot connector with M8, 3-pin, A-coded female connectors
- Unshielded 5 m PUR halogen-free cable with 10 wires
- High current loading capacity of 10 A
- IP65/IP67 rated enclosure for dust and water protection
- Operating temperature range suitable for flexible and stationary use
- Durable with up to 5,000,000 bending cycles
- Overvoltage category III for industrial safety
- Includes 10 labeling plates for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation and control systems
- Sensor and actuator connectivity
- Factory and process automation
- Robotics and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free cable reduces environmental impact and improves safety in case of fire
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Y8A38A2-LXXXUCA050 connector and cable assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
