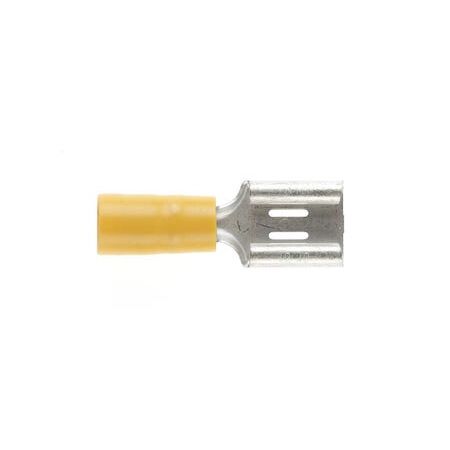

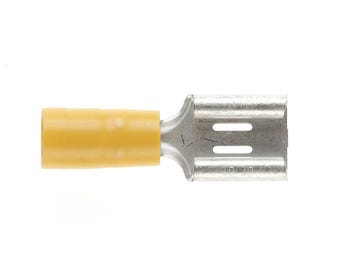

Yellow Quick Connect Terminal | 9.5x0.8mm | Double Grip | PVC Insulated by Cabac
Yellow quick connect terminal with 9.5x0.8mm size and double grip design—ideal for electrical wiring and connections. Built for reliability, with PVC insulation and compliance to AS 3169 and AS 4437 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Yellow Quick Connect 9.5*0.8mm Tab Dg
Brand: Cabac
SKU: QC5.5-9.5DG
Alternatively Known As: Quick Connect Terminal, Pre-insulated Terminal, Double Grip Terminal, Electrical Connector Terminal
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa
- Ductile Rating: 6% min
- Final Metal State: Annealed
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating Material: Tin with 99.9% Tin Content, 2.5 microns thickness
- Insulation Material: PVC
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Torque Recommendations: Varying by thread diameter, e.g., 3mm thread requires 2 Nm torque
- Dimensions (H x L x W): 0.8mm x 20mm x 9.5mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Translucent nylon in fully insulated quick connector reduces installation errors
- Voltage rating 300V
- Double grip - separate crimp barrels for conductor and insulation
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- All terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type. Professional installation by a qualified electrician is recommended for safety and compliance.
Applications
- Electrical wiring and connections in switchgear
- Contactors and terminal blocks
- General electrical and power connectivity applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- PVC insulation designed to minimize installation errors, reducing waste
- Compliant with international standards ensuring safe and efficient electrical connections
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Yellow Quick Connect 9.5x0.8mm Tab Double Grip Terminal is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and standard-compliant terminals.
