YF2A14-010UA3M8U14 | Connectors and cables

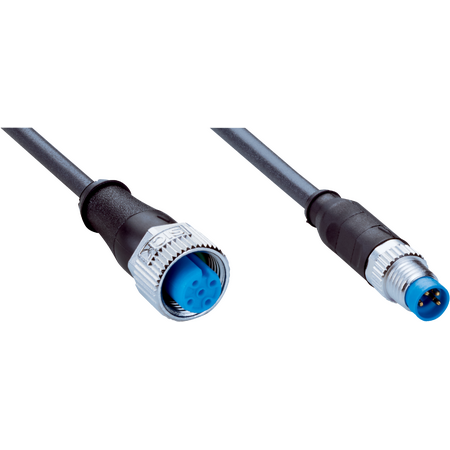

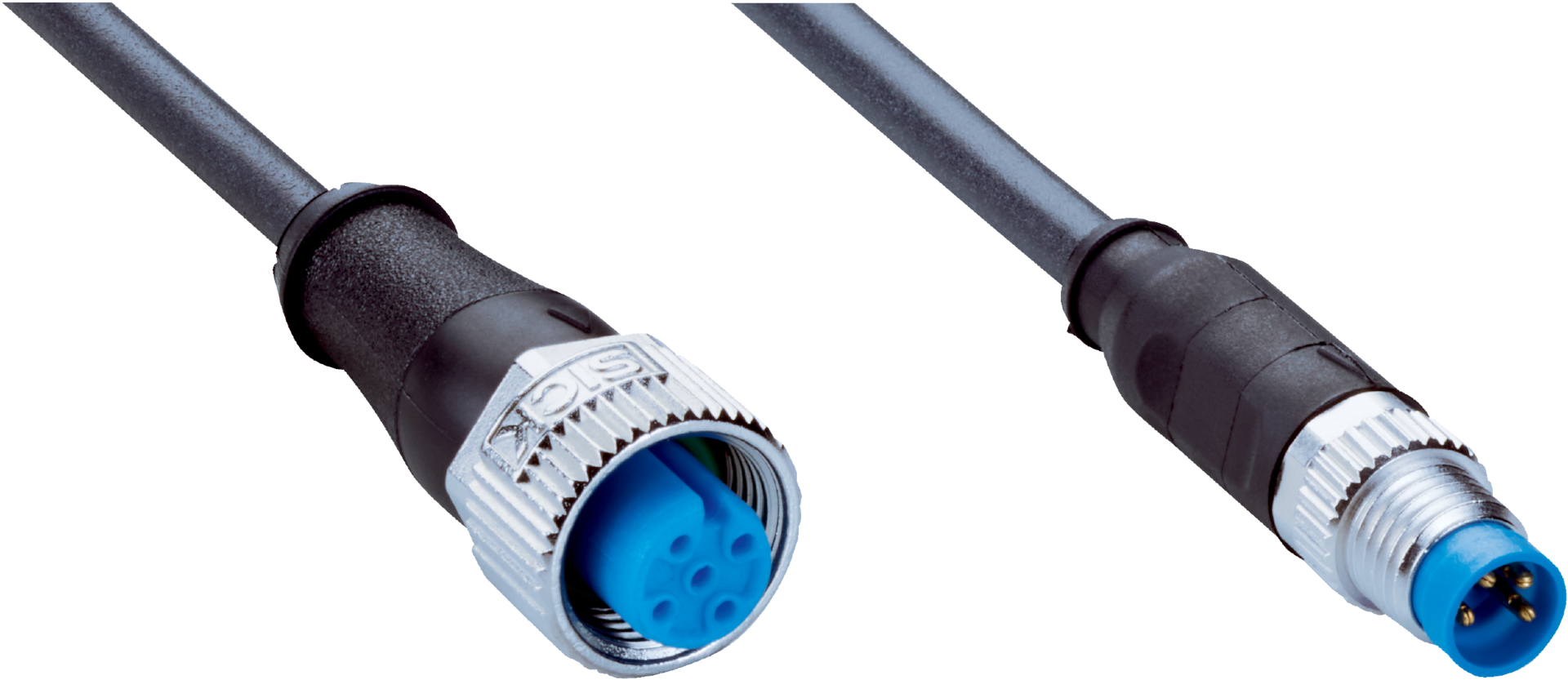

The SICK YF2A14-010UA3M8U14 is a durable sensor/actuator cable featuring M12 and M8 connectors, designed for industrial automation with high flexibility, robust materials, and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A14-010UA3M8U14 | Connectors and cables
Brand: SICK
SKU: 2134295
Alternatively Known As: Sensor cable M12 to M8, Actuator cable M12 M8, Industrial sensor connector cable, SICK YF2A14 cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable length: 1 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Temperature range: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12 4-pin straight A-coded connector and Male M8 4-pin straight A-coded connector
- Screw connection locking plug
- Cable jacket made of halogen-free PUR
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Torsion cycles up to 2,000,000 with 180°/1 m torsion force
- Operating temperature range from -40 °C to +85 °C depending on use
- Flame retardant according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials and high bending cycles extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-010UA3M8U14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics requiring reliable sensor connections.
