YF2A14-020UA3M8U14 | Connectors and cables

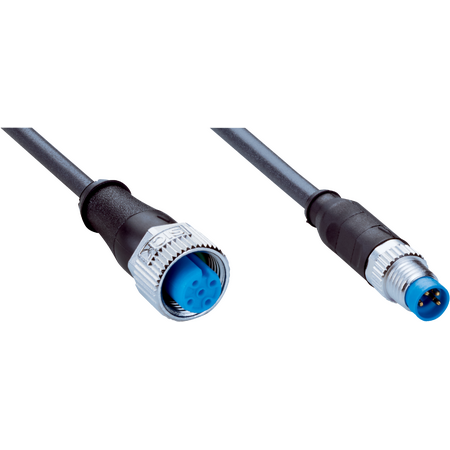

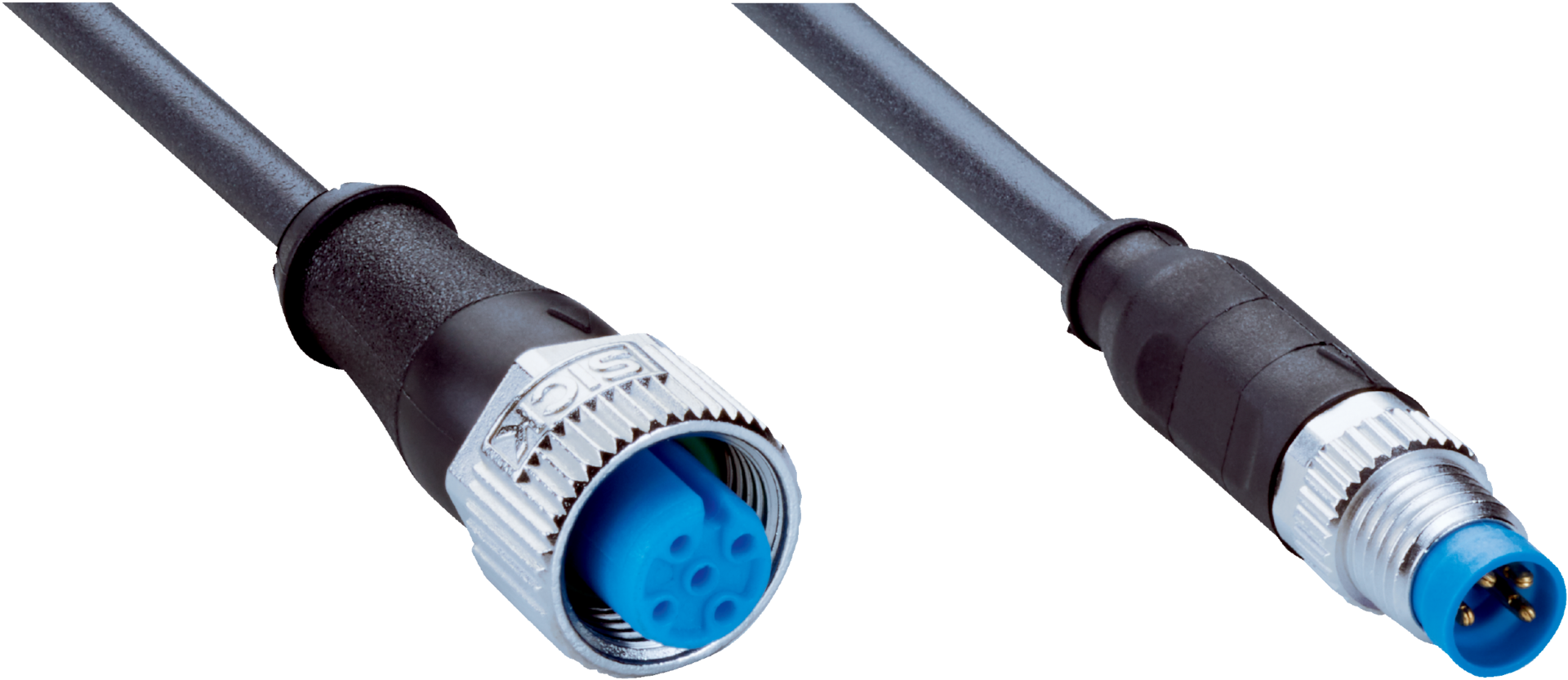

The SICK YF2A14-020UA3M8U14 is a durable sensor/actuator cable featuring M12 female and M8 male connectors, designed for industrial applications including robotics and drag chain operation with high resistance to bending and torsion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A14-020UA3M8U14 | Connectors and cables
Brand: SICK
SKU: 2096112
Alternatively Known As: Sensor cable M12 to M8, Actuator cable M12 M8, Industrial sensor connector cable, Robot sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable: 2 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, straight, A-coded
- Male connector M8, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut material: Zinc die-cast nickel-plated (female), nickel-plated brass (male)
- Seal material: FKM
- Cable length: 2 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Unshielded cable
- High bending radius and torsion cycles for durability
- Operating temperature range: -40 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Current loading: 4 A
- UL and cULus certified
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A14-020UA3M8U14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
