YF2A25-C60UB6XLEAX | Connectors and cables

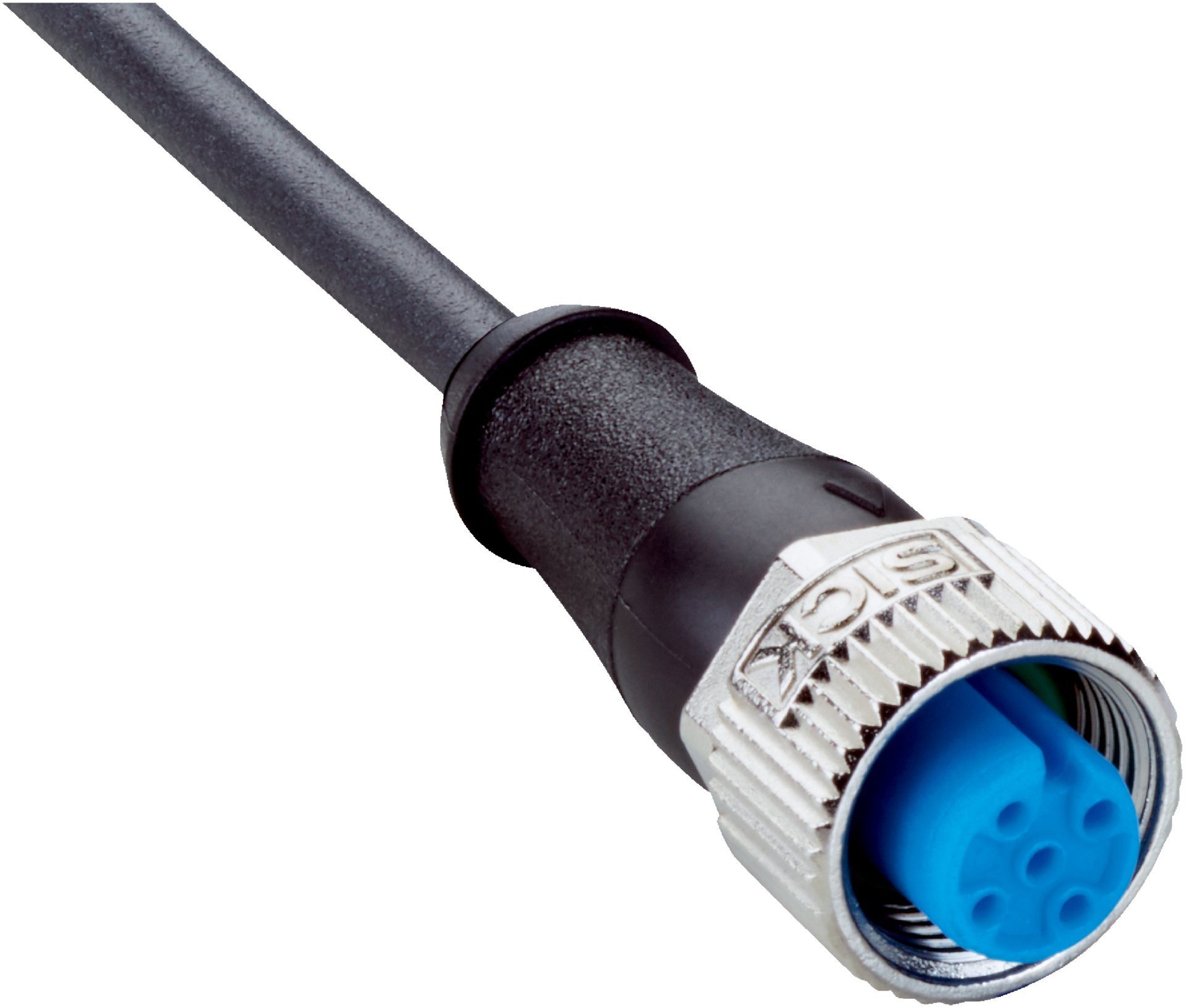

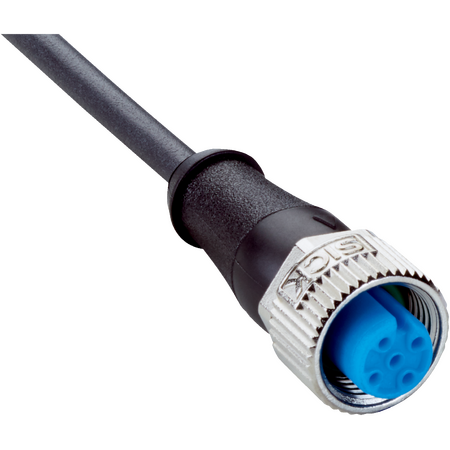

The SICK YF2A25-C60UB6XLEAX is a high-performance sensor/actuator cable featuring a female M12 connector and a 0.6 m PUR halogen-free cable, designed for robust industrial applications including robotics and drag chain operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A25-C60UB6XLEAX | Connectors and cables
Brand: SICK
SKU: 2145581
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 Female, PUR Sensor Cable, Industrial Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 0.6 m, 5-wire, PUR, halogen-free
- Cable diameter: 5.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 60 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Bending cycles: 5,000,000
- Torsion cycles: 2,000,000
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –40 °C to +80 °C, Drag chain operation –25 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 5-pin, straight, A-coded connector
- Screw connection locking plug
- Cable length 0.6 m, 5-wire, PUR, halogen-free
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000 and bending cycles up to 5,000,000
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A25-C60UB6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
