YF2A28-015UA6XLEAX | Connectors and cables

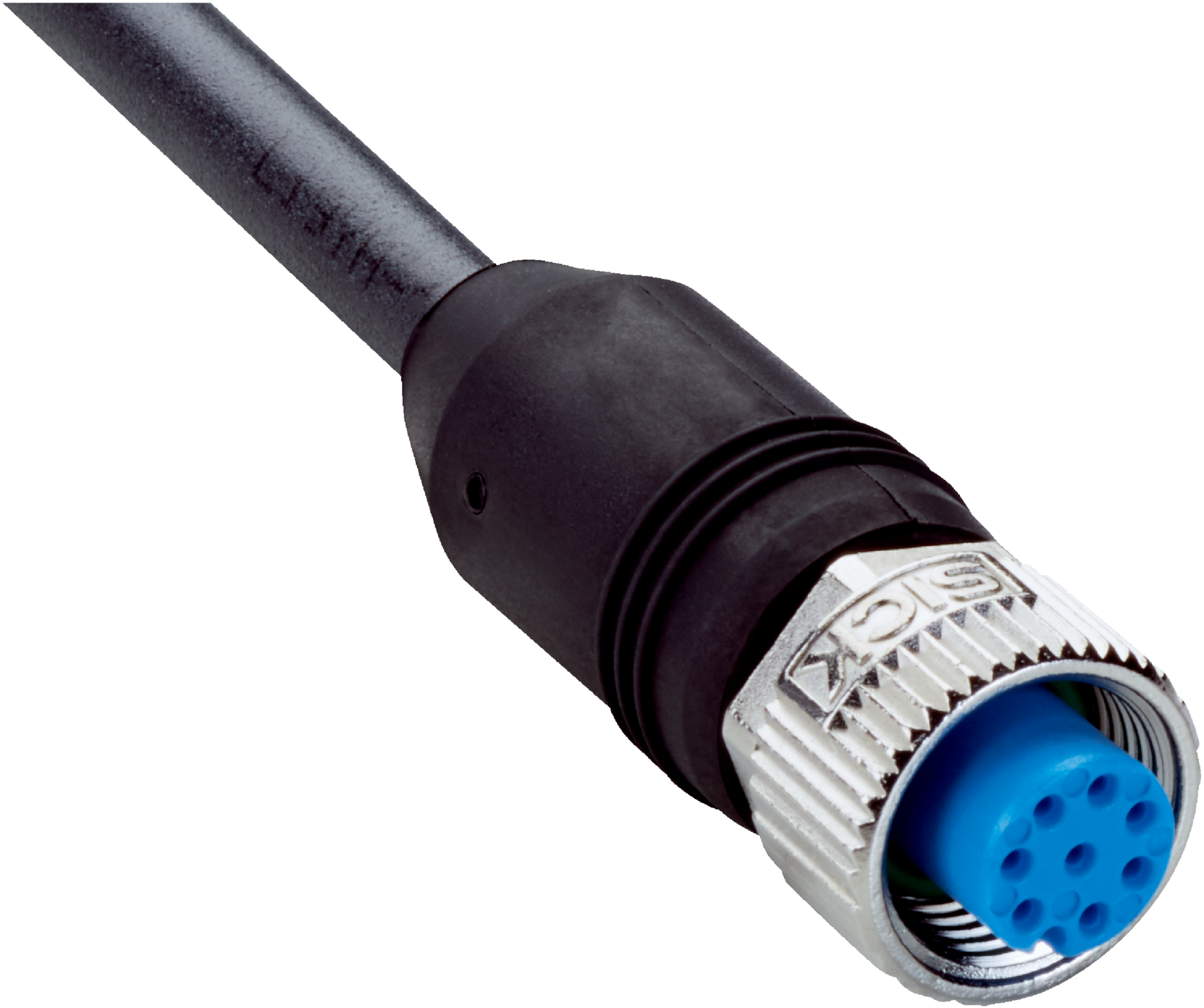

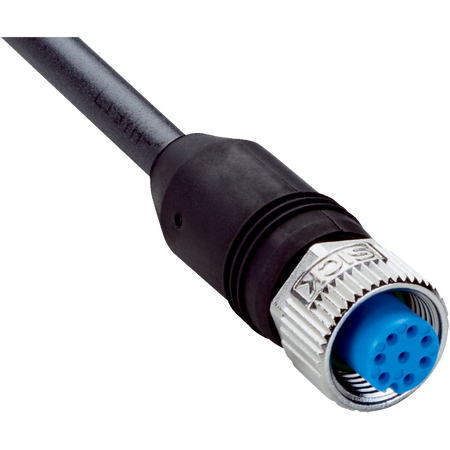

The SICK YF2A28-015UA6XLEAX is a high-performance M12 8-pin female connector with a 1.5 m shielded PUR cable, designed for sensor and actuator applications in industrial environments including robots and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A28-015UA6XLEAX | Connectors and cables
Brand: SICK
SKU: 2123361
Alternatively Known As: M12 8-pin female connector cable, Sensor actuator cable M12, Shielded M12 connector cable, Industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1.5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Bending cycles: 5,000,000
- Torsion cycles: 2,000,000
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 1500mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- Halogen-free PUR cable jacket, black color
- Shielded 8-wire cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Torsion cycles up to 2,000,000 and bending cycles up to 5,000,000
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials and high cycle ratings extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-015UA6XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
