YF2A2D-100UV1XLEAX | Connectors and cables

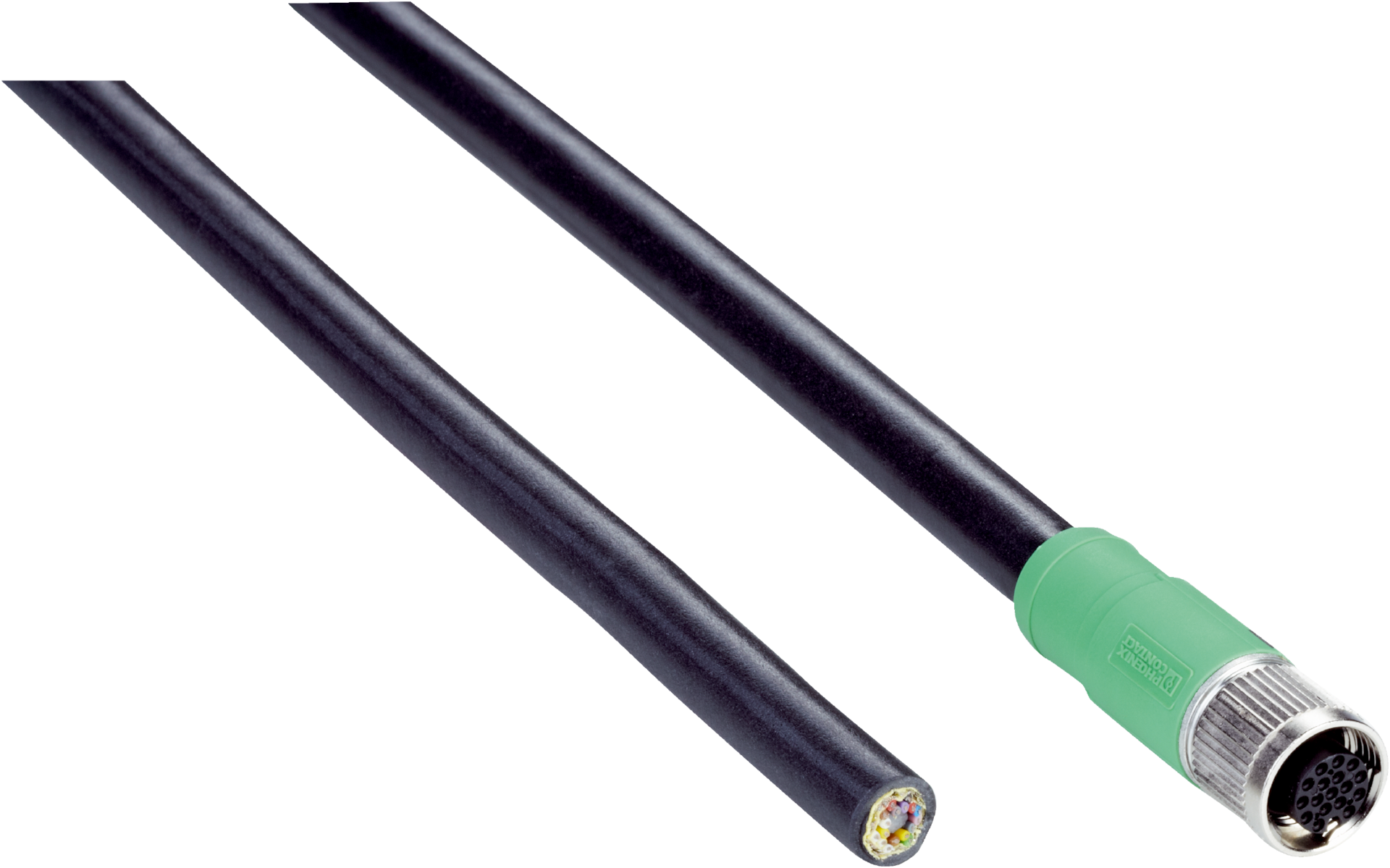

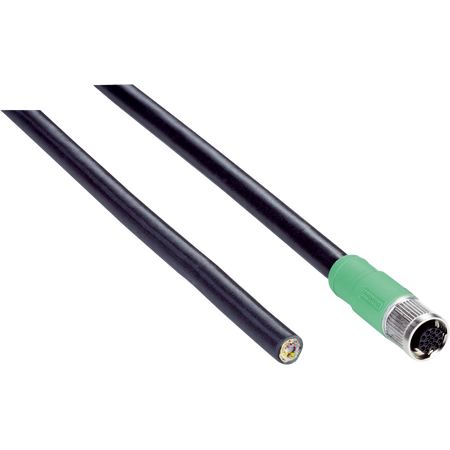

The SICK YF2A2D-100UV1XLEAX is a 17-pin M12 female connector with a 10 m PUR cable, designed for sensor and actuator applications in industrial environments including robot drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A2D-100UV1XLEAX | Connectors and cables
Brand: SICK
SKU: 6048817
Alternatively Known As: M12 17-pin female connector cable, Sensor actuator cable, PUR shielded cable M12 connector
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Connector color: Black
- Locking nut material: CuZn, nickel-plated brass
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable wires: 17-wire
- Jacket material: PUR
- Cable diameter: 9.2 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded twisted pair
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≤ 4,000,000
- Reference voltage: ≤ 30 V
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +90 °C
- Dimensions (H x L x W): 20mm x 10000mm x 20mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- Cable length: 10 m, 17-wire, PUR jacket
- Shielded twisted pair cable for sensor/actuator applications
- Locking nut made of nickel-plated brass (CuZn)
- High bending cycles up to 4,000,000
- Enclosure rating IP65/IP67 for robust protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +90 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A2D-100UV1XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor/actuator applications.
