YF2A85-050UB6M2A85 | Connectors and cables

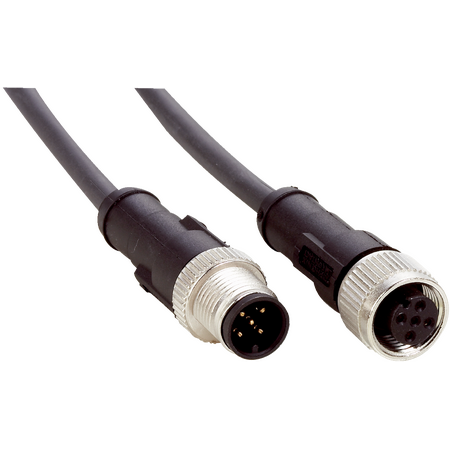

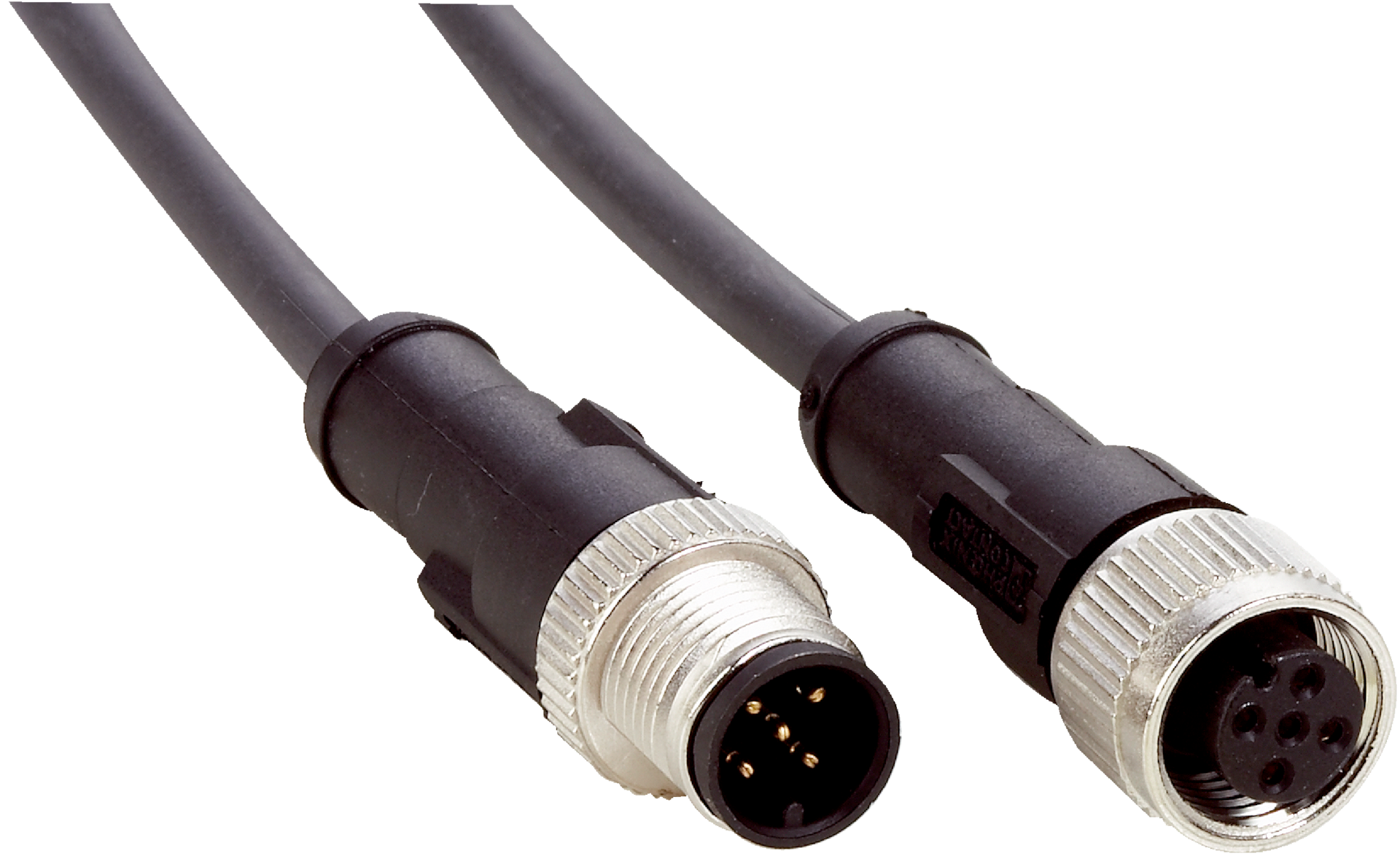

The SICK YF2A85-050UB6M2A85 is a durable M12 5-pin sensor/actuator cable with quick screw locking connectors, suitable for use in robot drag chain operations and zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A85-050UB6M2A85 | Connectors and cables
Brand: SICK
SKU: 2096119
Alternatively Known As: M12 5-pin sensor cable, M12 actuator cable, SICK sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 5 m, 5-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 5 x 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Operating temperature stationary position: -40°C to +80°C
- Operating temperature head: -25°C to +90°C
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP68
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 5mm x 5000mm x 5mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Quick screw locking plug connector
- Shielded sensor/actuator cable
- Halogen-free PUR jacket
- High bending cycles ≥ 4,000,000
- Operating temperature range: -25°C to +90°C (head)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies.
Available Now
The SICK YF2A85-050UB6M2A85 M12 5-Pin Sensor/Actuator Cable is available now for immediate purchase. Ideal for industrial automation, robotics, and sensor applications.
