YF2AP3-150PA1XLEAX | Connectors and cables

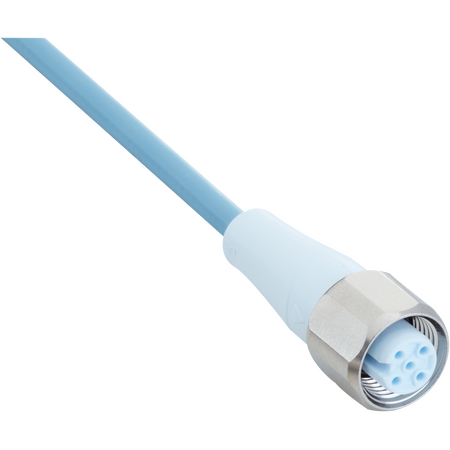

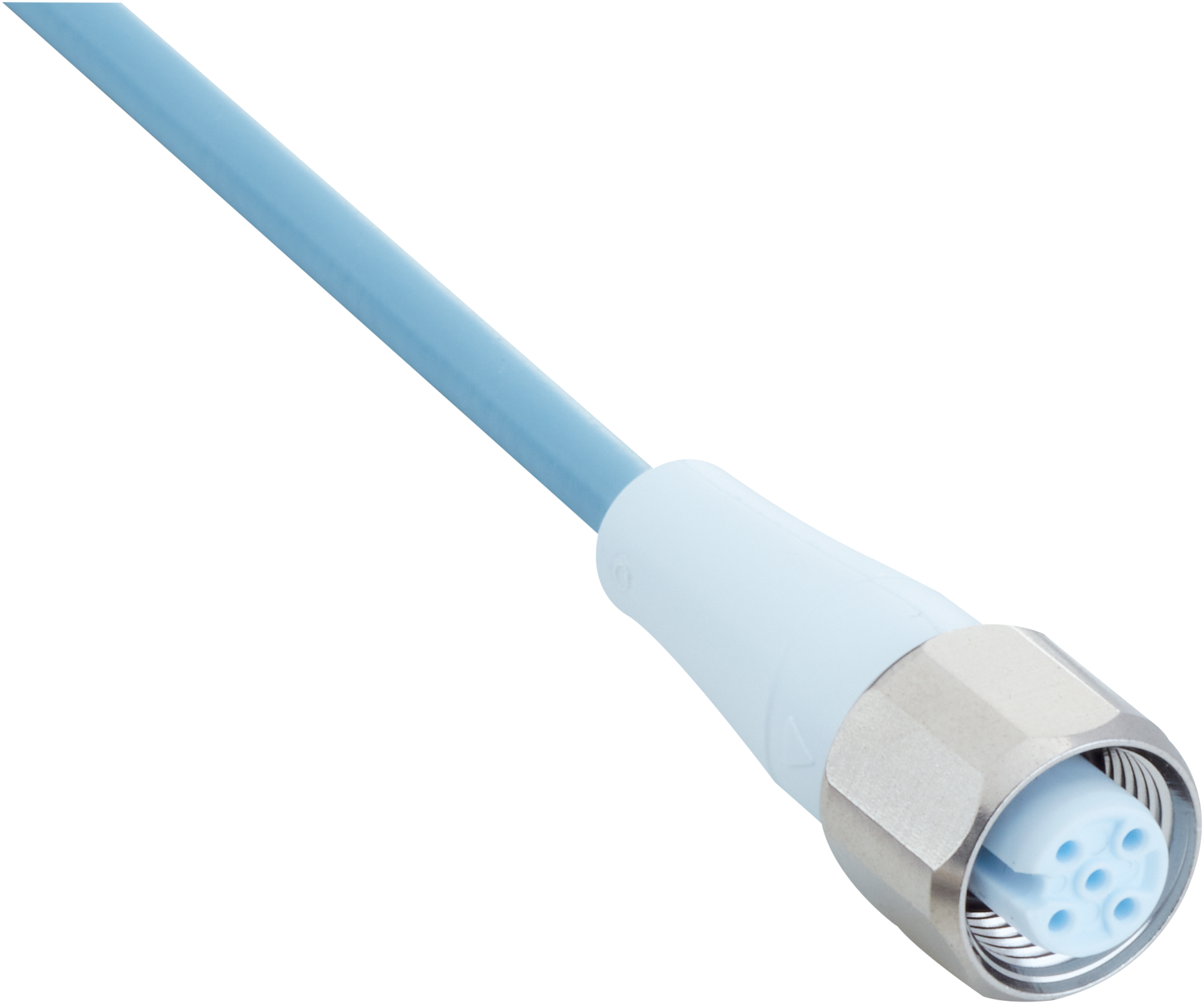

The SICK YF2AP3-150PA1XLEAX is a durable M12 3-pin female connector with a 15 m flying leads cable designed for industrial sensor and actuator applications, featuring high IP ratings and robust mechanical properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2AP3-150PA1XLEAX | Connectors and cables
Brand: SICK
SKU: 2146863
Alternatively Known As: M12 Female Connector Cable, Sensor Actuator Cable, Industrial Connector Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable diameter: 4.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +105 °C, Stationary position -40 °C to +105 °C, Drag chain operation -25 °C to +105 °C, Head -25 °C to +85 °C
- Bending cycles: 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP68 / IP69K
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 14mm x 15000mm x 14mm
- Weight: 0.2 kg
Key Features
- Female M12, 3-pin, straight, A-coded connector
- Screw locking plug connector with stainless steel locking nut
- 15 m long, 3-wire unshielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use, stationary, and drag chain operation
- Operating temperature range from -40 °C to +105 °C depending on use
- IP65/IP68/IP69K enclosure rating for harsh environments
- High durability with 4,000,000 bending cycles and 2,000,000 torsion cycles
- Torsion force 180° per meter and acceleration ≤ 10 m/s²
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Robotics drag chain operations
- Machine building requiring robust cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- High resistance to environmental factors minimizes failure and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YF2AP3-150PA1XLEAX connector cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable sensor and actuator connections.
