YF8U14-010UA3M8U14 | Connectors and cables

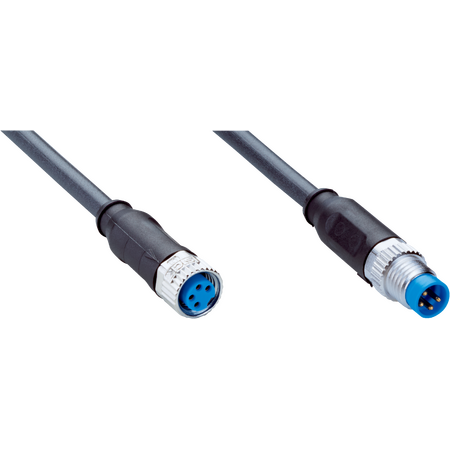

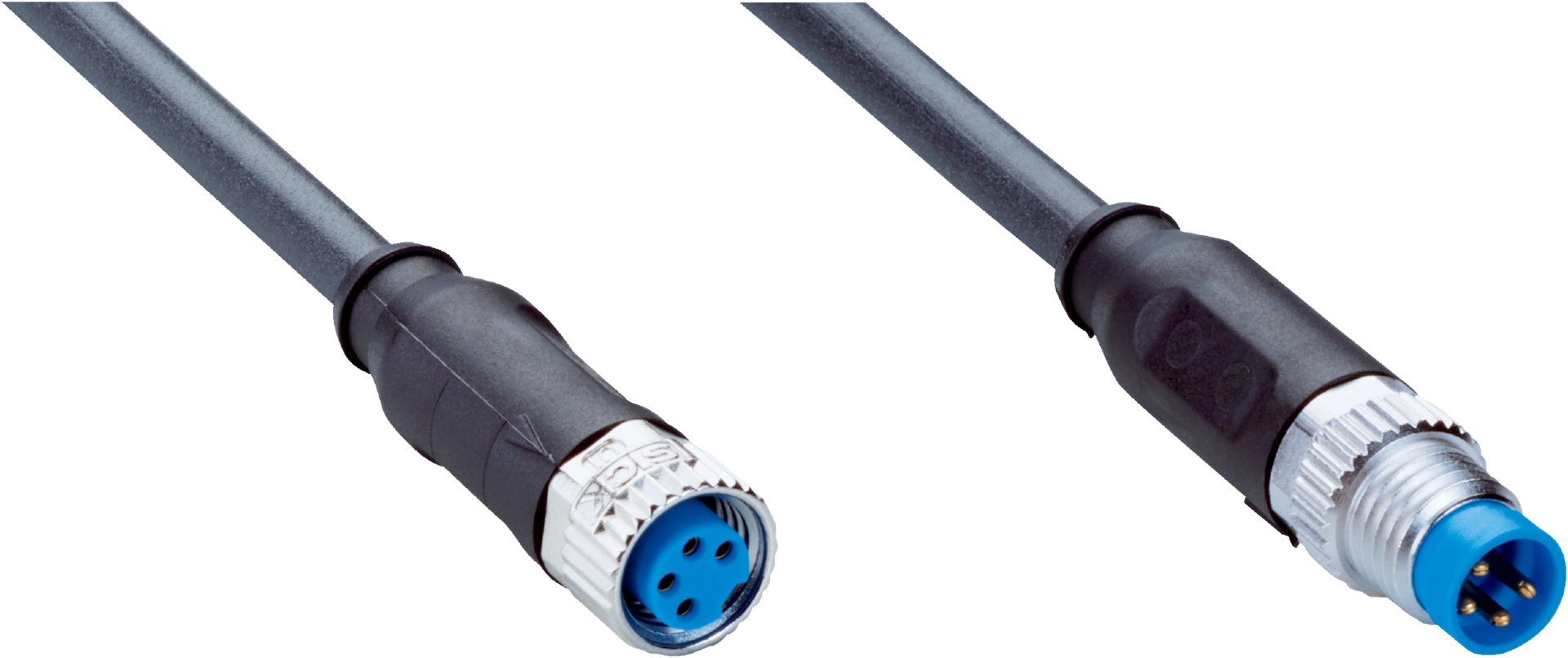

The SICK YF8U14-010UA3M8U14 is a durable M8 4-pin sensor/actuator cable with screw locking connectors, designed for use in industrial environments including robots and drag chain operations, featuring high flexibility and robust IP65/IP66K/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U14-010UA3M8U14 | Connectors and cables
Brand: SICK
SKU: 2143896
Alternatively Known As: M8 4-pin sensor cable, M8 actuator cable, M8 connector cable, sensor actuator connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 1 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary > 5 x cable diameter, Drag chain > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 1000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, straight, A-coded
- Male connector M8, 4-pin, straight, A-coded
- Screw connection locking plug
- Cable is 1 m long, 4-wire, PUR, halogen-free
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000
- Nominal voltage 300 V AC, current loading 4 A
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U14-010UA3M8U14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
