YG2A14-010S01M2A13 | Connectors and cables

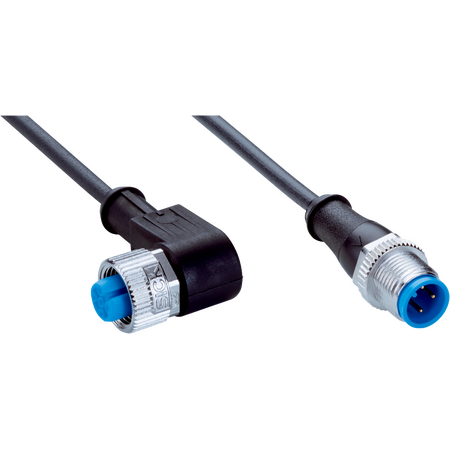

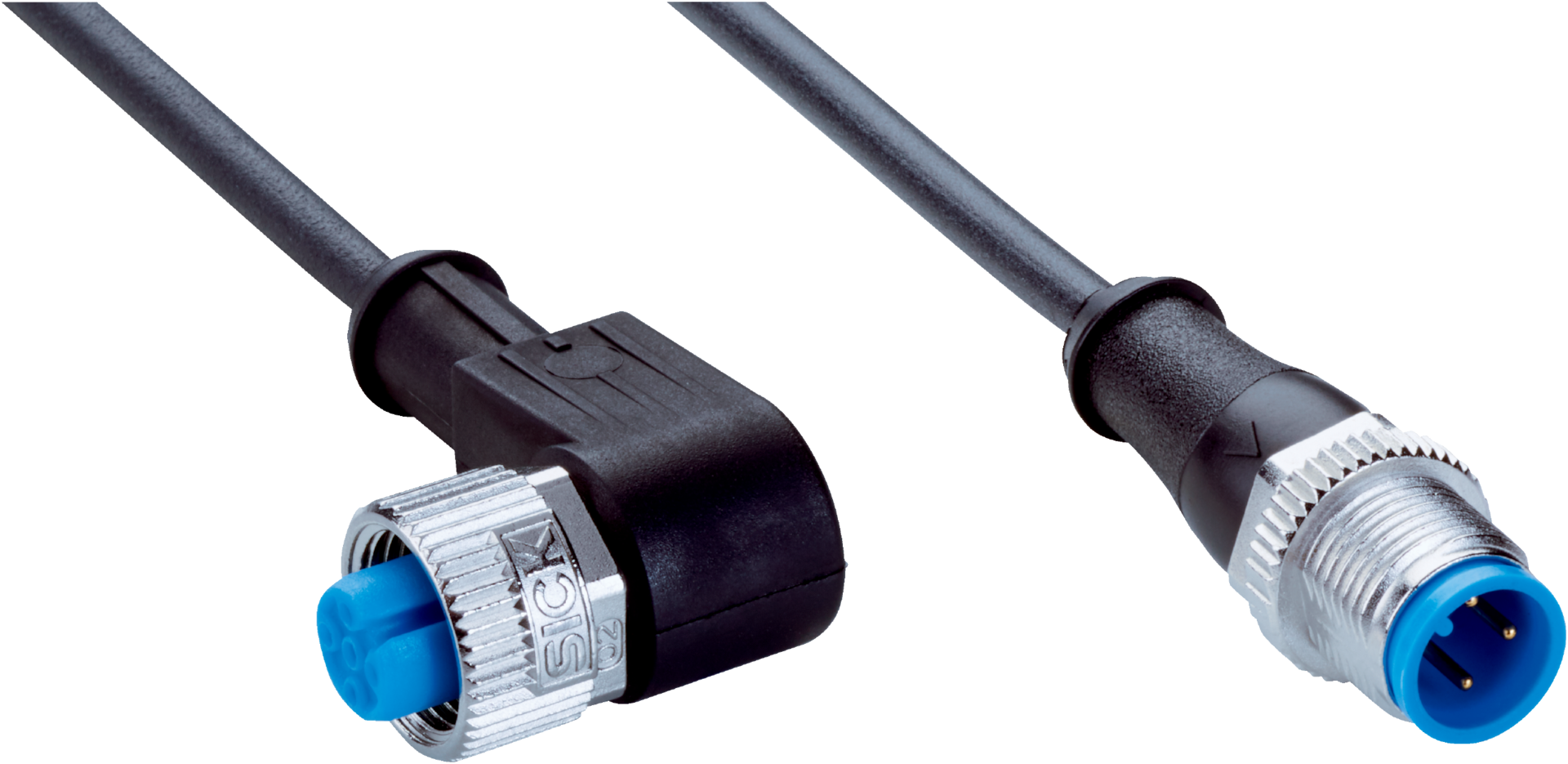

The SICK YG2A14-010S01M2A13 is a durable M12 4-pin connector cable designed for industrial applications including chemical and lubricant zones, featuring high protection ratings and drag chain suitability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-010S01M2A13 | Connectors and cables
Brand: SICK
SKU: 2105151
Alternatively Known As: M12 4-pin connector cable, angled female to straight male M12 cable, industrial connector cable, drag chain cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Male connector, M12, 4-pin, straight
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 1 m, 3-wire, PUR
- Jacket material: PUR
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: ≤ 5,000,000
- Rated impulse voltage: 2.5 kV
- Traversing speed: ≤ 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Special feature: Drag chain use
- Enclosure rating: IP65 / IP66K / IP67
- Authorizations: CE, UL
- Dimensions (H x L x W): 12mm x 1000mm x 12mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, angled on head A
- Male connector M12, 4-pin, straight on head B
- Connector material made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Cable length 1 m with 3-wire PUR jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP66K / IP67 rated enclosure for protection
- Specially designed for drag chain use
- CE and UL authorized
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial automation and control systems
- Chemical zones
- Zones with oils and lubricants
- Drag chain use environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High resistance to chemicals and oils extends product life
- Energy-efficient manufacturing and compliance with RoHS standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG2A14-010S01M2A13 connector cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
