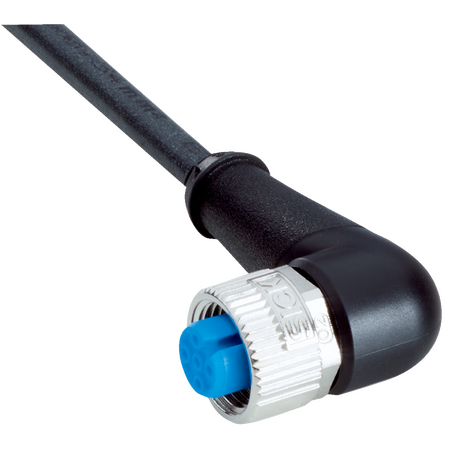

YG2A14-015UB3XLEAX | Connectors and cables

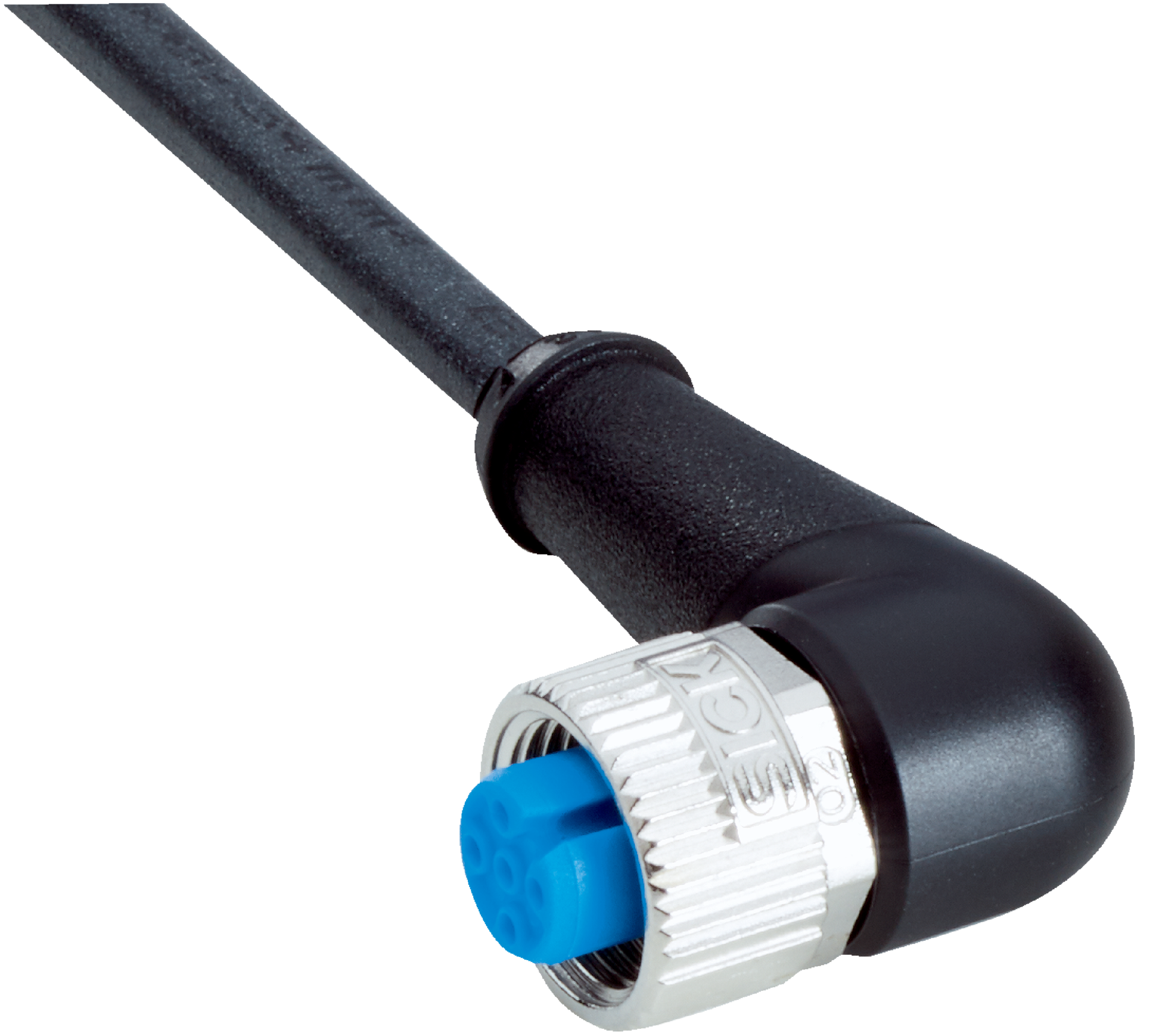

The SICK YG2A14-015UB3XLEAX is a durable M12 4-pin female connector with a 1.5 m PUR halogen-free cable, designed for sensor and actuator applications in industrial environments including robot and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-015UB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2119005
Alternatively Known As: M12 4-pin female connector cable, Sensor actuator cable, PUR cable connector, Industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1.5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Temperature range flexible use: -25 °C to +80 °C
- Temperature range stationary position: -40 °C to +80 °C
- Temperature range drag chain operation: -25 °C to +80 °C
- Temperature range head: -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 1500mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin angled A-coded connector
- Screw locking plug connector
- Cable length 1.5 m, 4-wire PUR halogen-free jacket
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion capability of 180° per meter with 2,000,000 torsion cycles
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones and zones with oils and lubricants
- Suitable for robot and drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-015UB3XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and flexible cabling solutions.
