YG2A14-020UB3N2A14 | Connectors and cables

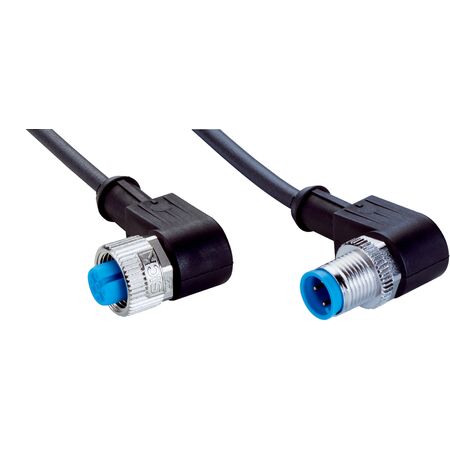

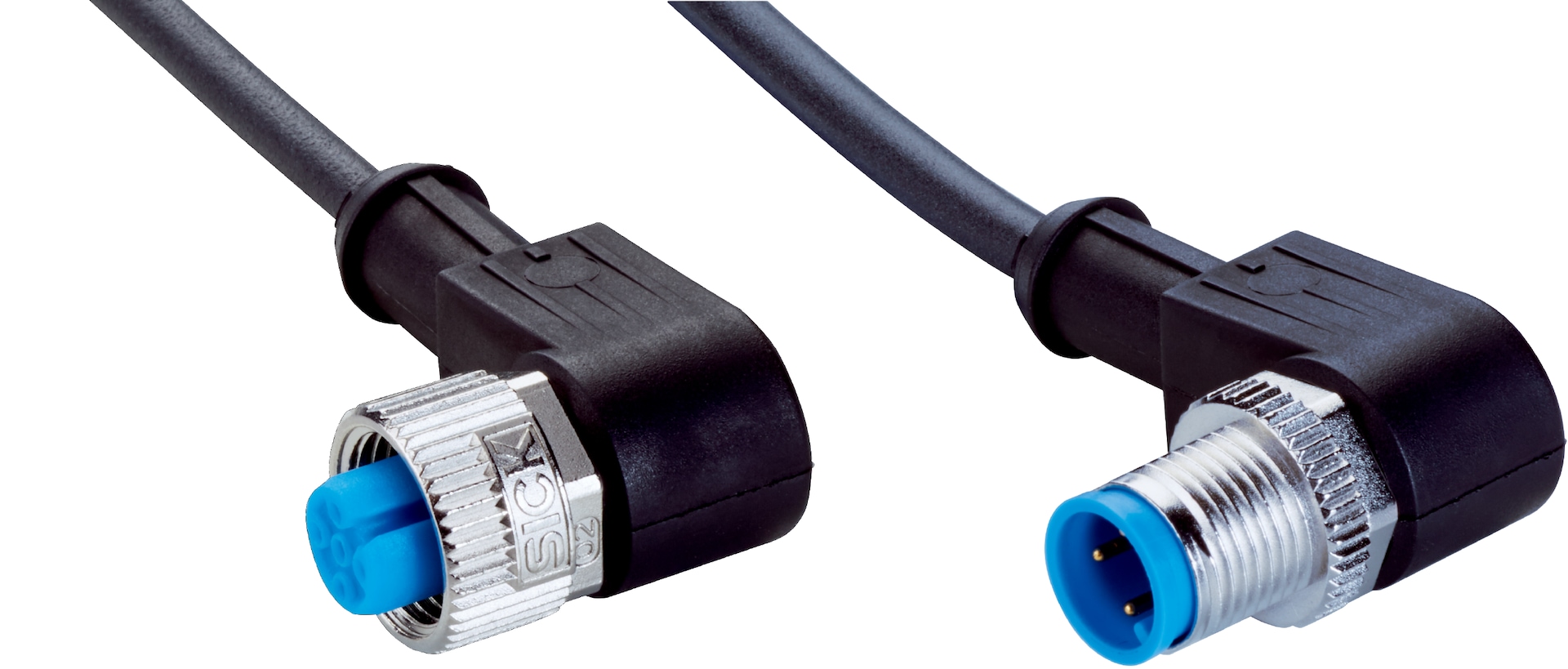

The SICK YG2A14-020UB3N2A14 is a durable M12 4-pin sensor/actuator cable with angled connectors, designed for industrial applications including robotics and drag chain operation, featuring high flexibility and robust materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-020UB3N2A14 | Connectors and cables
Brand: SICK
SKU: 2111265
Alternatively Known As: M12 4-pin sensor cable, M12 angled connector cable, sensor actuator cable 2m, PUR halogen-free cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Male connector, M12, 4-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 2 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Temperature range flexible use: -25 °C to +80 °C
- Temperature range stationary position: -40 °C to +80 °C
- Temperature range drag chain operation: -25 °C to +80 °C
- Temperature range head: -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded on head A
- Male connector, M12, 4-pin, angled, A-coded on head B
- Screw connection locking plug
- Cable length 2 m, 4-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion force 180° / 1 m with 2,000,000 torsion cycles
- Nominal voltage 300 V AC, current loading 4 A
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-020UB3N2A14 M12 4-pin sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
