YG2A14-150UB3XLEAX | Connectors and cables

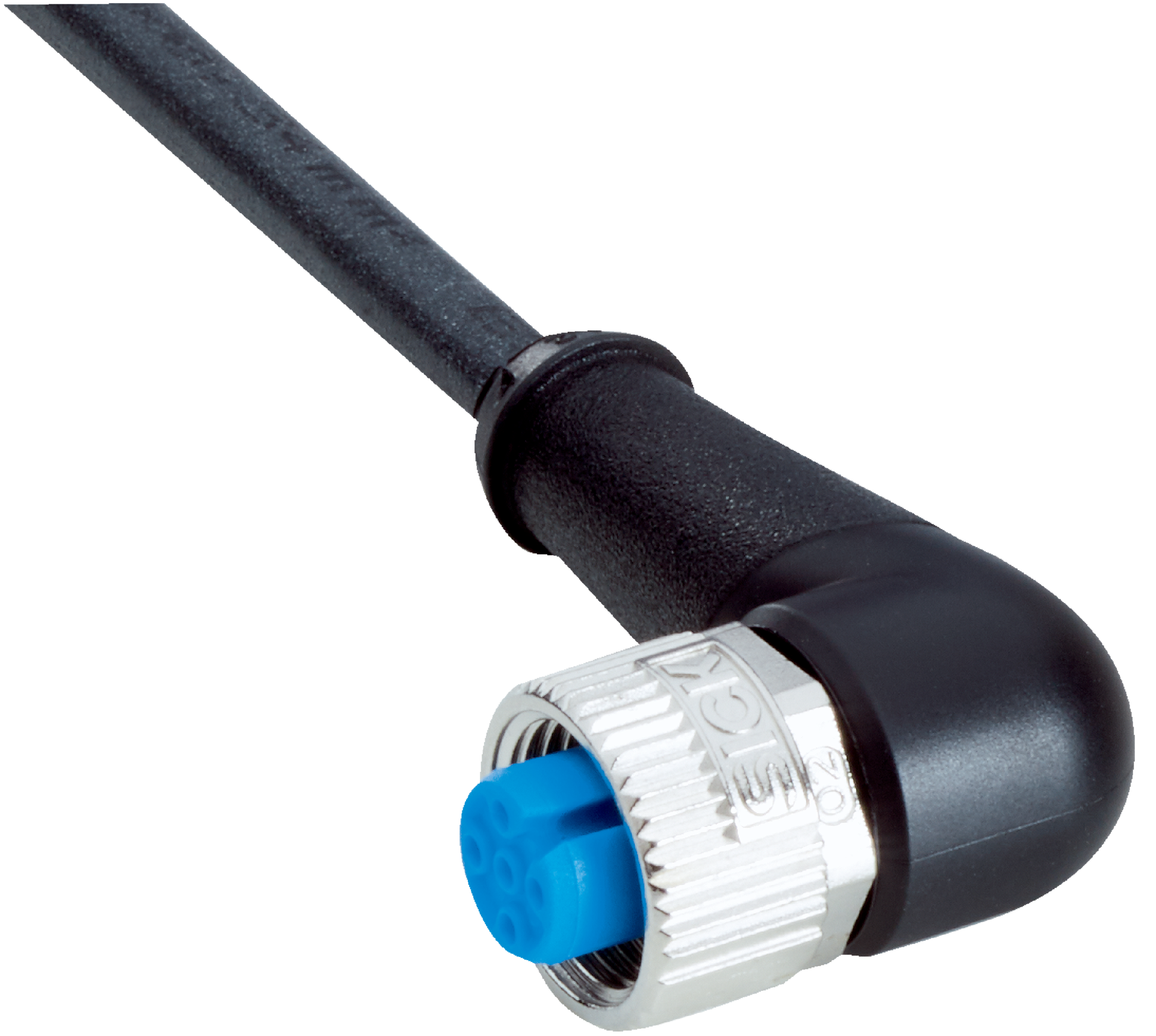

The SICK YG2A14-150UB3XLEAX is a durable M12 4-pin female connector with a 15m PUR halogen-free cable, designed for sensor and actuator applications in industrial automation with high resistance to bending, torsion, and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

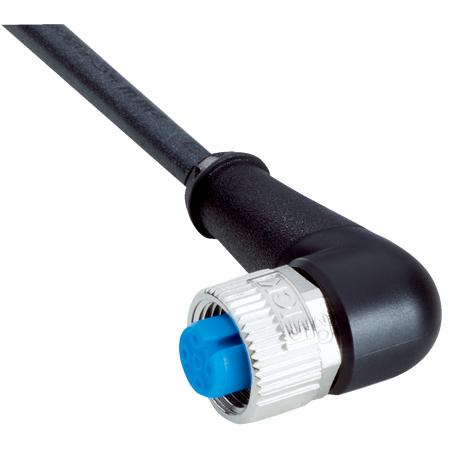

Product Name/Title: YG2A14-150UB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2095769
Alternatively Known As: M12 4-pin female connector cable, Sensor connector cable, PUR halogen-free sensor cable, Industrial automation connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25°C to +80°C, Stationary -40°C to +80°C, Drag chain -25°C to +80°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 15000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 4-pin angled A-coded connector
- 15 m PUR halogen-free cable with 4 wires
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- High bending radius and torsion resistance with 10,000,000 bending cycles
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in automation systems
- Robotics and drag chain operation
- Use in uncontaminated zones and zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-150UB3XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor/actuator applications requiring durable and reliable connections.
