YG2A15-020UB5XLEAX Connectors and cables

BRAND: SICK
SKU: 2095772
$36.10 List price: $45.40
+ −
30 Days Return Electricians Unlock Trade Access

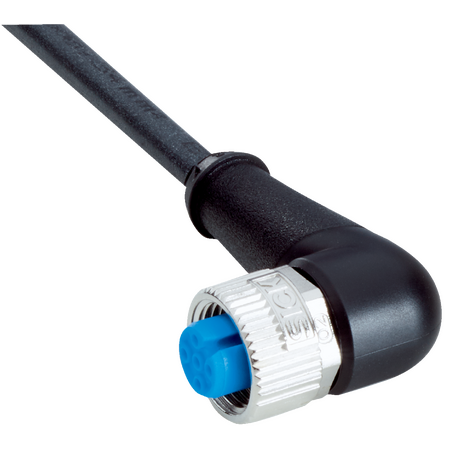

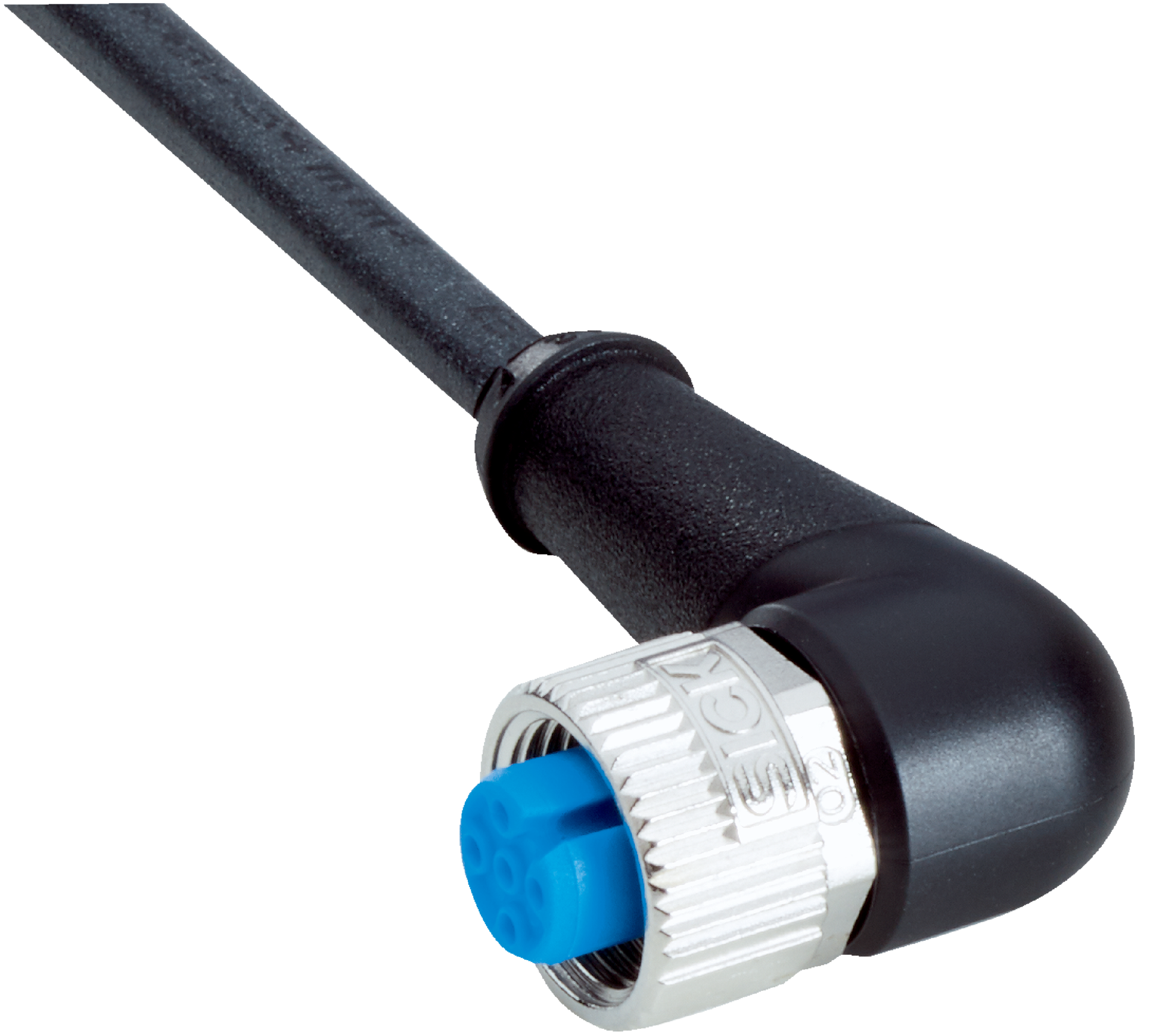

The SICK YG2A15-020UB5XLEAX is a durable M12 5-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial

Product Name/Title: YG2A15-020UB5XLEAX | Connectors and cables

Brand: SICK

SKU: 2095772

Alternatively Known As: M12 5-pin female connector cable, Sensor actuator cable M12, SICK M12 connector cable, Industrial sensor cable M12

Technical Specifications
  • Connection type head A: Female connector, M12, 5-pin, angled, A-coded
  • Connection type head B: Flying leads
  • Locking plug connector: Screw connection
  • Connector material: TPU
  • Locking nut material: Zinc die-cast, nickel-plated
  • Seal material: FKM
  • Tightening torque: 0.6 Nm
  • Cable length: 2 m
  • Cable type: 5-wire, PUR, halogen-free
  • Cable diameter: 4.8 mm
  • Conductor cross section: 0.34 mm²
  • Shielding: Unshielded
  • Nominal voltage: 300 V AC
  • Test voltage: 2,500 V AC
  • Rated impulse voltage: 1.5 kV
  • Current loading: ≤ 4 A
  • Traversing speed: 3 m/s
  • Travelling distance: 10 m
  • Acceleration: ≤ 10 m/s²
  • Signal type: Sensor/actuator cable
  • Torsion force: 180° / 1 m
  • Bending cycles: 10,000,000
  • Torsion cycles: 2,000,000
  • Cycles per minute: 35
  • Operating temperature flexible use: –25 °C to +80 °C
  • Operating temperature stationary position: –40 °C to +80 °C
  • Operating temperature drag chain operation: –25 °C to +80 °C
  • Operating temperature head: –25 °C to +85 °C
  • Enclosure rating: IP65 / IP66K / IP67
  • Contamination rating: 3
  • Insulation resistance: 100 MΩ
  • Overvoltage category: III
  • Specific insulation resistance: 30 mΩ
  • Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
  • Dimensions (H x L x W): 13mm x 2000mm x 13mm
  • Weight: 0.1 kg
Key Features
  • Female M12, 5-pin angled A-coded connector
  • Screw connection locking plug
  • TPU connector material with zinc die-cast nickel-plated locking nut
  • PUR halogen-free 2 m cable with 5 wires
  • Unshielded cable with 0.34 mm² conductor cross section
  • High bending radius suitable for flexible use, stationary position, and drag chain operation
  • Operating temperature range from -40 °C to +85 °C depending on use
  • IP65 / IP66K / IP67 enclosure rating
  • Flame retardant cable according to UL 1581 and IEC 60332 standards
  • High durability with 10,000,000 bending cycles and 2,000,000 torsion cycles
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling and connectors to ensure proper connection and compliance with safety standards.
Applications
  • Sensor and actuator cable applications
  • Use in uncontaminated zones
  • Zones with oils and lubricants
  • Robot drag chain operation
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free PUR cable reduces harmful emissions in case of fire
  • Flame retardant materials enhance safety and reduce environmental impact
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty details.

Available Now

The SICK YG2A15-020UB5XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications including robot drag chain operations.
