YG2A24-010UB4XLEAX | Connectors and cables

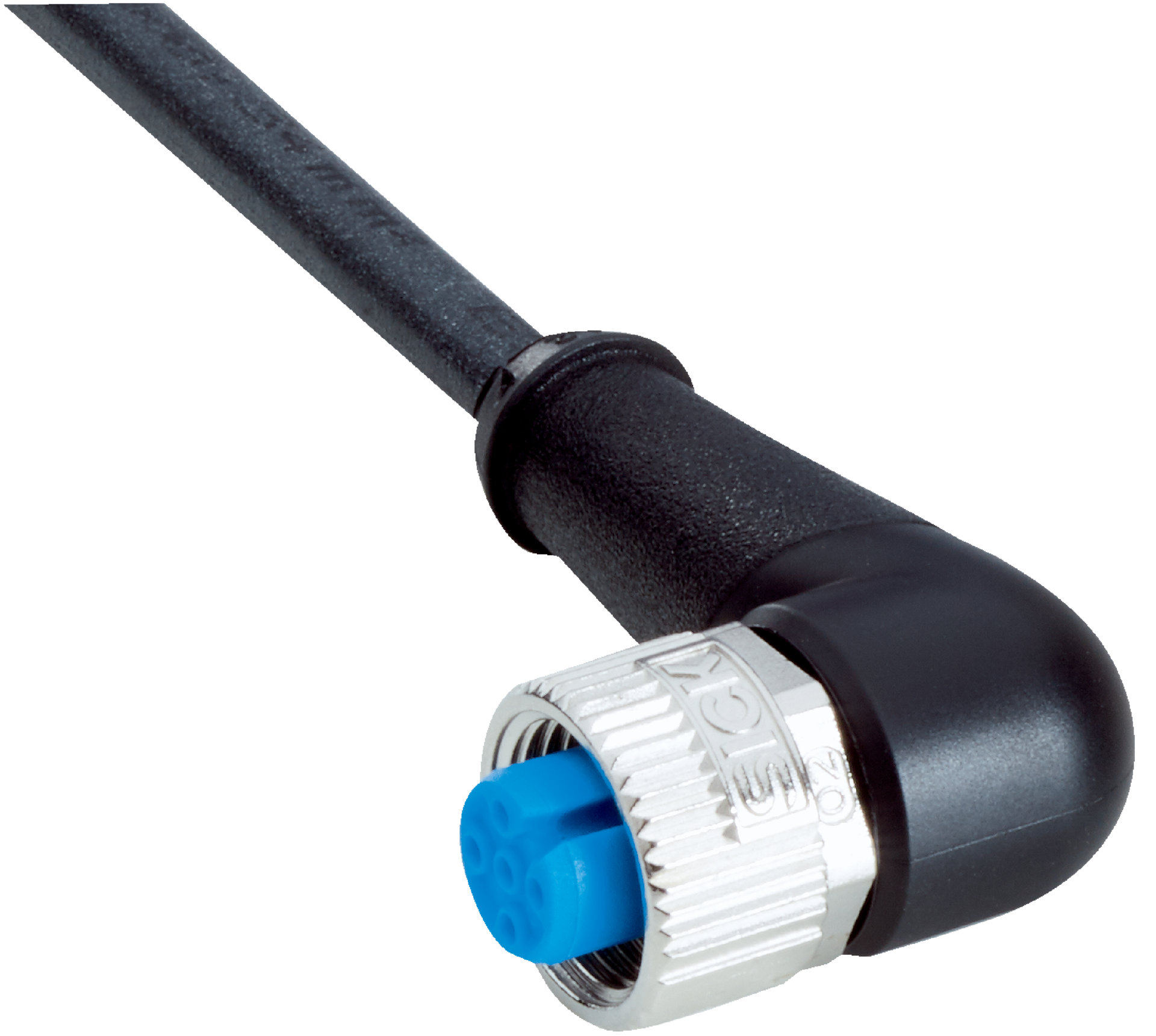

The SICK YG2A24-010UB4XLEAX is a high-quality M12 4-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial environments including robots and drag chains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

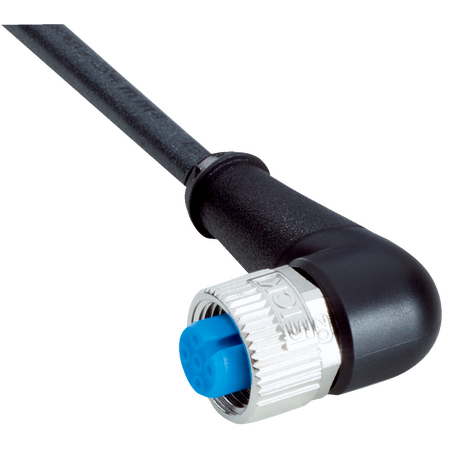

Product Name/Title: YG2A24-010UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2145734
Alternatively Known As: M12 4-pin female connector cable, Sensor actuator cable M12, Industrial connector cable, SICK sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin angled A-coded connector
- Screw locking plug connector
- TPU connector material with zinc die-cast nickel-plated locking nut
- PUR halogen-free cable jacket, black color
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones
- Zones with oils and lubricants
- Robot and drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A24-010UB4XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor applications.
