YG2A28-030UA6M2A28 | Connectors and cables

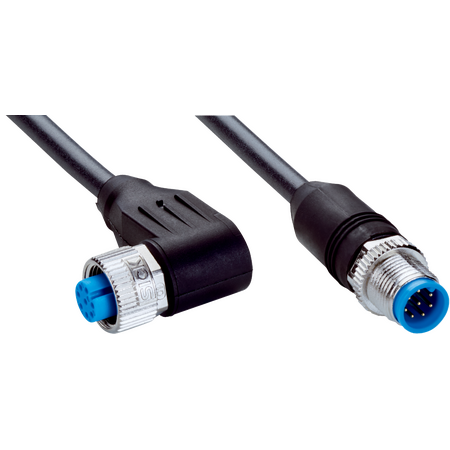

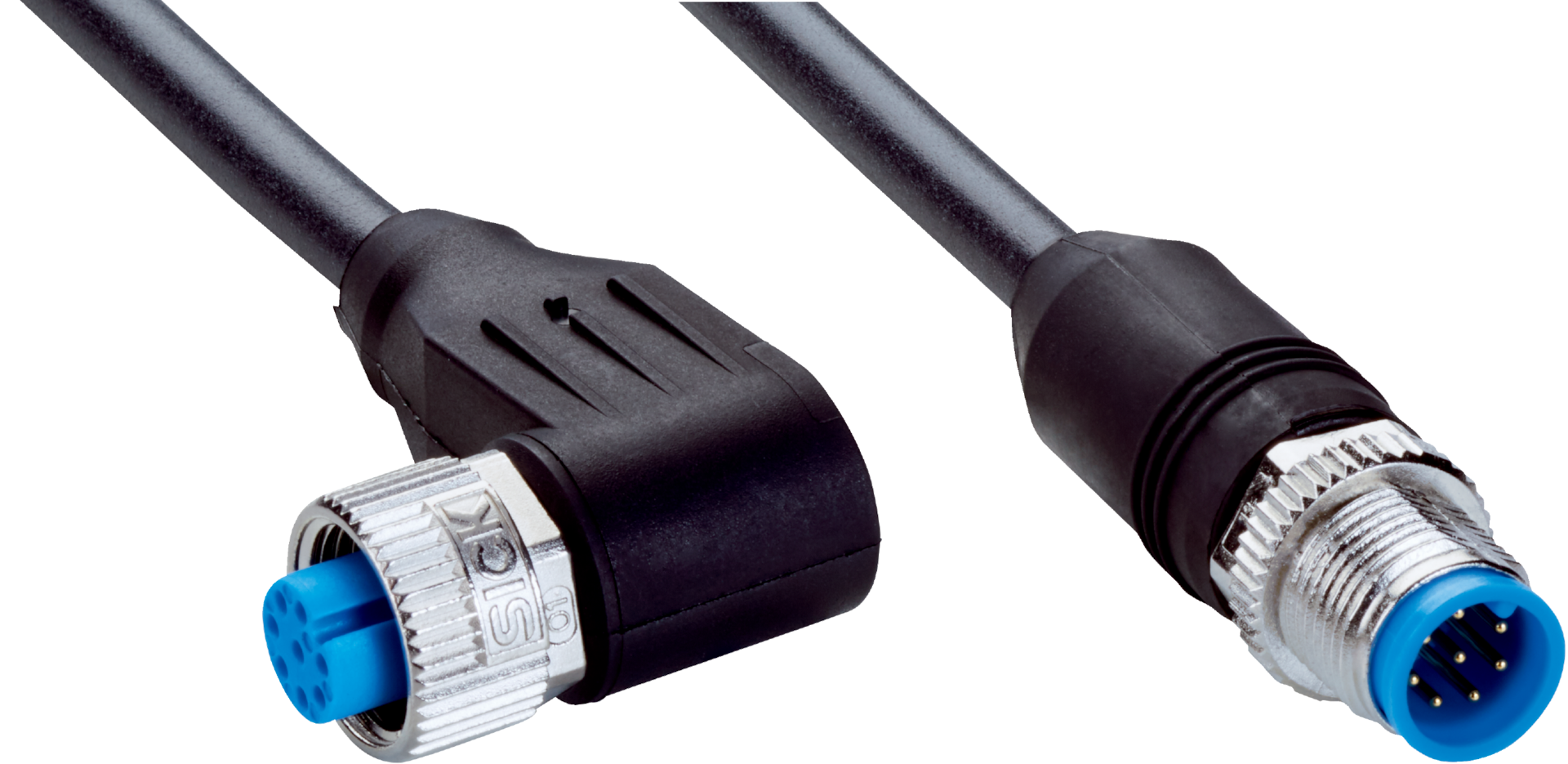

The SICK YG2A28-030UA6M2A28 is a durable M12 8-pin sensor/actuator cable with angled female and straight male connectors, designed for industrial automation and robotics with high resistance to bending, torsion, and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A28-030UA6M2A28 | Connectors and cables
Brand: SICK
SKU: 2123373
Alternatively Known As: M12 8-pin sensor cable, M12 8-pin actuator cable, SICK sensor connector cable, industrial sensor cable M12
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Male connector, M12, 8-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Bending cycles: 5,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, angled, A-coded
- Male connector, M12, 8-pin, straight, A-coded
- Screw connection locking plug
- Shielded 3 m PUR halogen-free cable
- High bending radius and torsion resistance
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact in case of disposal or fire.
- Flame retardant materials enhance safety and reduce fire hazards.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A28-030UA6M2A28 M12 8-pin sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
