YG8U14-010UA3M2A14 | Connectors and cables

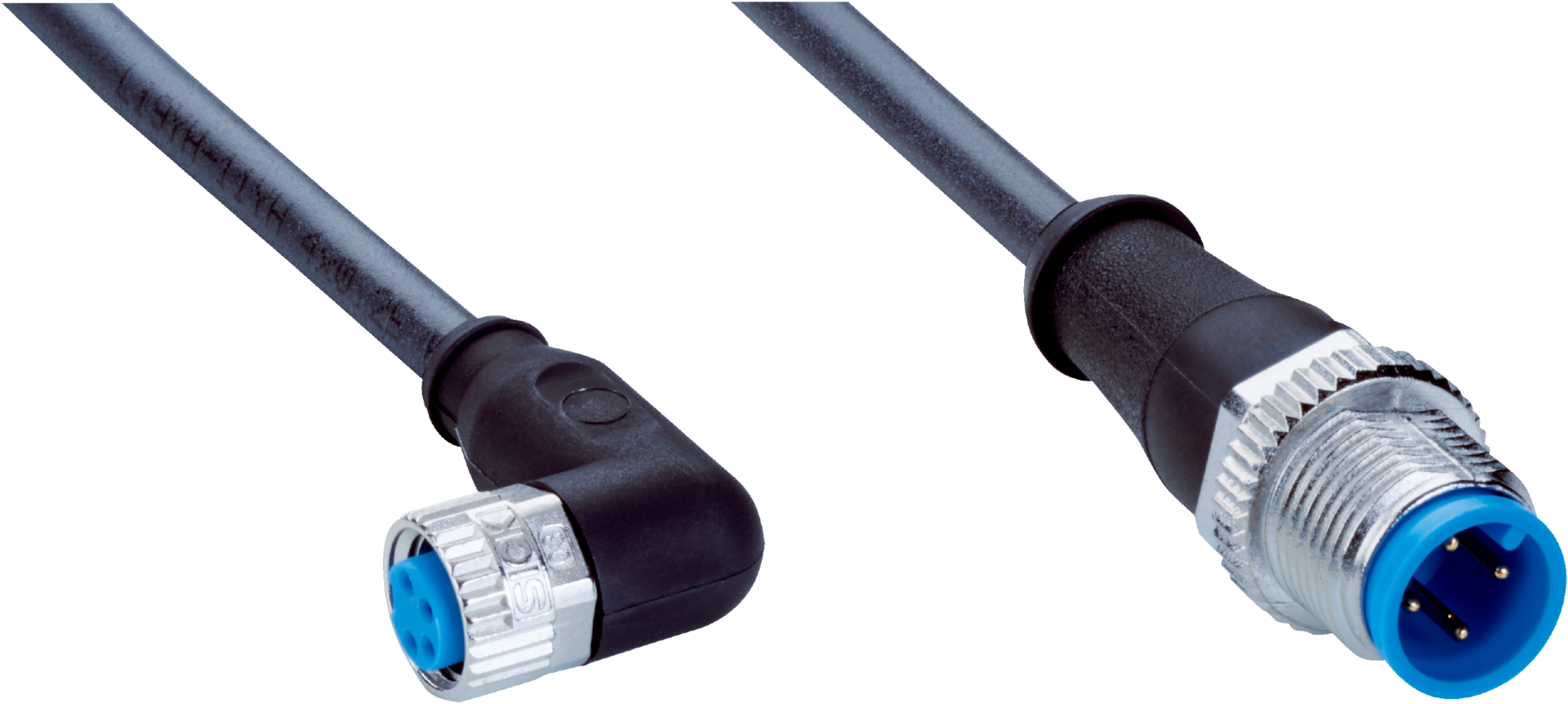

The SICK YG8U14-010UA3M2A14 is a durable M8 to M12 sensor/actuator cable with high protection ratings and flexible use in industrial and robotic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

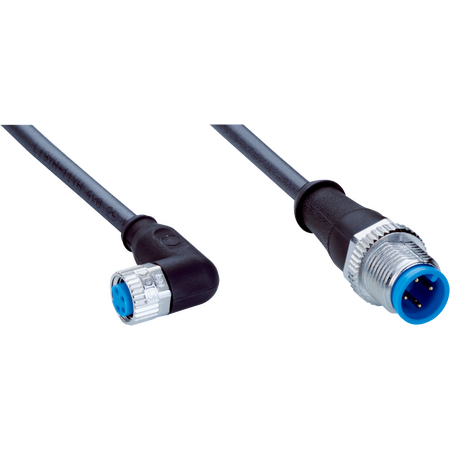

Product Name/Title: YG8U14-010UA3M2A14 | Connectors and cables
Brand: SICK
SKU: 2145842
Alternatively Known As: M8 to M12 sensor cable, sensor actuator cable, industrial connector cable, PUR halogen-free cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable length: 1 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -25°C to +80°C, Stationary -40°C to +80°C, Drag chain -25°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, angled, A-coded
- Male connector M12, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material TPU with zinc die-cast nickel-plated locking nut
- Cable is 1 m long, 4-wire, PUR, halogen-free
- Operating temperature range from -40°C to +85°C depending on use
- High bending radius and torsion cycles for durability
- Enclosure rating IP65 / IP66K / IP67 for protection
- Flame retardant according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG8U14-010UA3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications.
