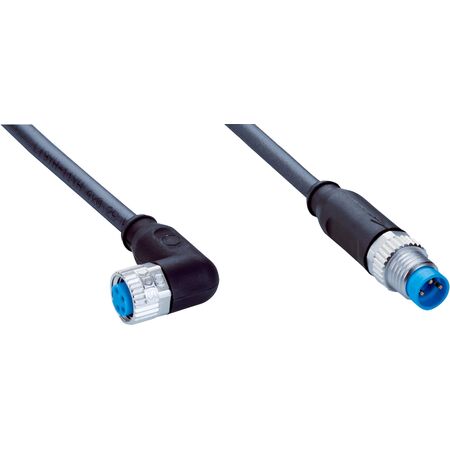

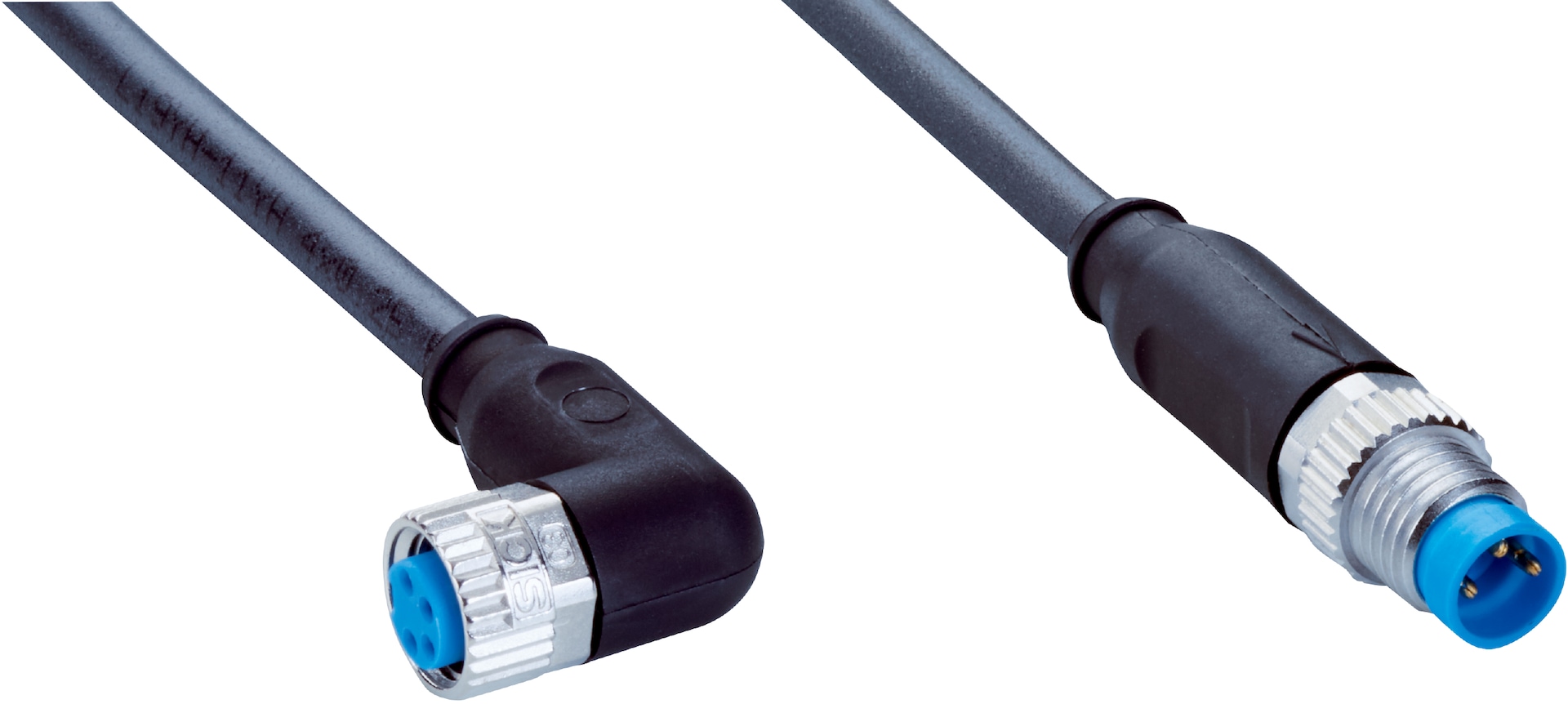

YG8U14-030UA1M8U13 | Connectors and cables
The SICK YG8U14-030UA1M8U13 is a durable sensor/actuator cable featuring M8 connectors, designed for use in industrial environments including robots and drag chain applications, with high resistance to bending and harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U14-030UA1M8U13 | Connectors and cables
Brand: SICK
SKU: 2124574
Alternatively Known As: M8 Sensor Cable, M8 Actuator Cable, Industrial Sensor Connector Cable, Robot Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 3 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 3000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled, A-coded
- Male connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 3 m, 3-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000
- Current loading up to 4 A
- Nominal voltage 300 V AC, test voltage 2,500 V AC
- Flame retardant according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YG8U14-030UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
