YG8U14-100UB3XLEAX | Connectors and cables

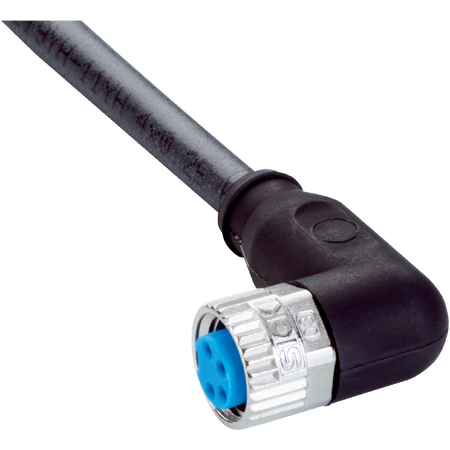

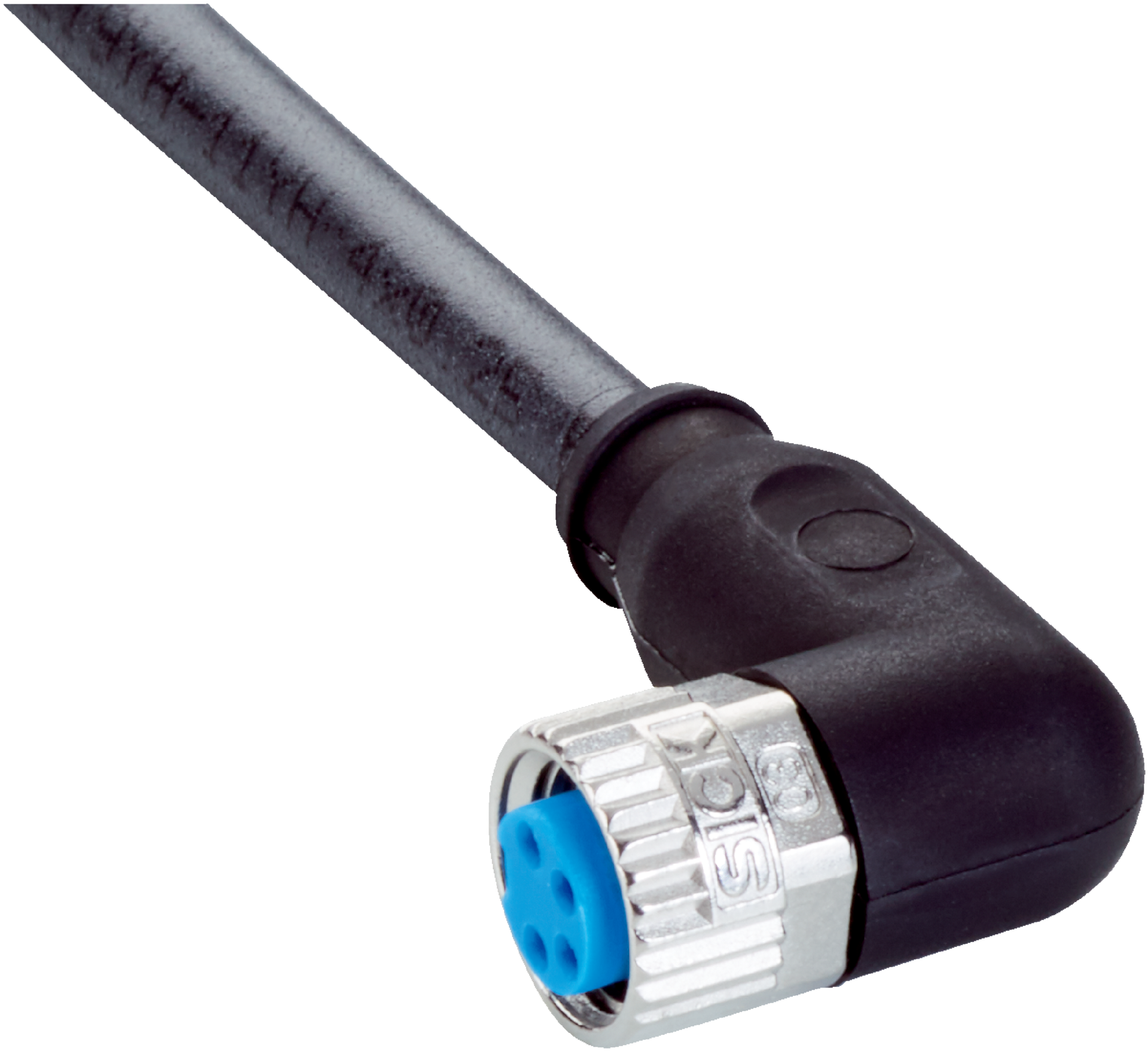

The SICK YG8U14-100UB3XLEAX is a durable M8 4-pin female connector with a 10-meter PUR halogen-free cable, designed for sensor and actuator applications in industrial environments including robotics and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U14-100UB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2101508
Alternatively Known As: M8 4-pin sensor cable, M8 female connector cable, PUR sensor cable 10m, SICK sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 10000mm x 9mm
- Weight: 0.2 kg
Key Features
- Female M8, 4-pin angled A-coded connector
- 10 m PUR halogen-free 4-wire cable
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable jacket according to UL 1581 and IEC standards
- High torsion resistance with 2,000,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Zones with oils and lubricants
- Robotics
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YG8U14-100UB3XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and flexible cabling.
