YG8U14-C60UA3XLEAX | Connectors and cables

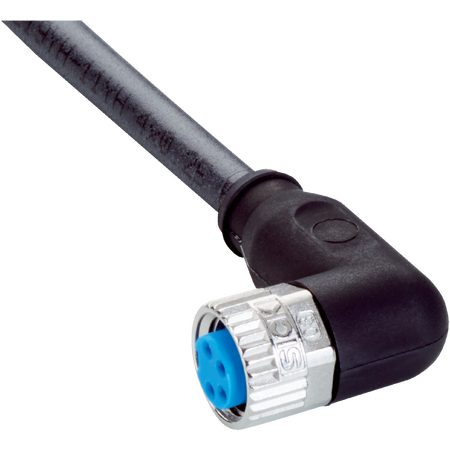

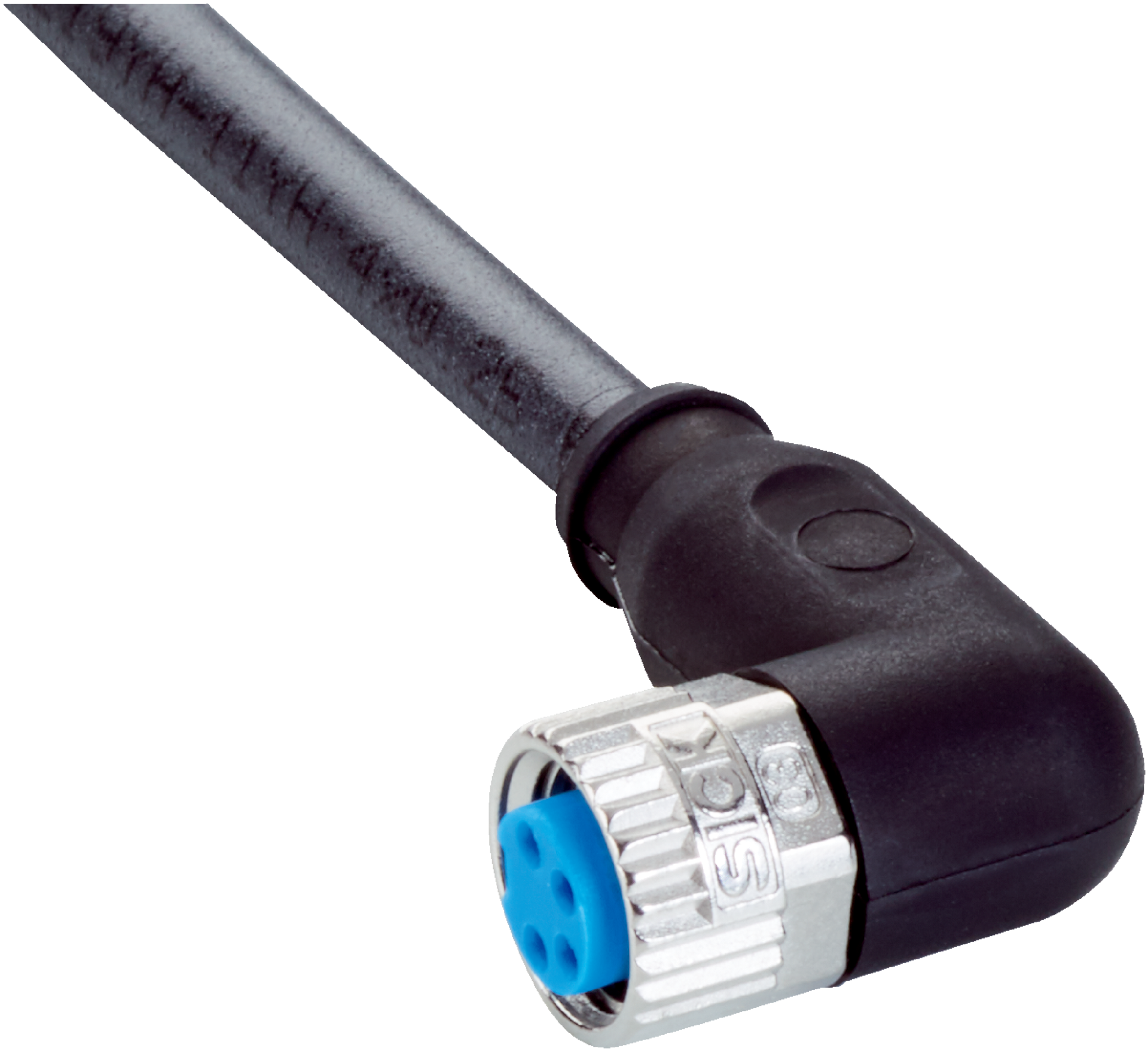

The SICK YG8U14-C60UA3XLEAX is a durable sensor/actuator cable featuring a female M8 angled connector and a 0.6 m halogen-free PUR cable, designed for industrial automation and robotics with high flexibility and protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U14-C60UA3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145828
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 Connector, SICK Sensor Connector Cable, Industrial Automation Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 0.6 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 15mm x 600mm x 9mm
- Weight: 0.1 kg
Key Features
- Female M8, 4-pin angled A-coded connector
- Screw locking plug connector
- Cable length 0.6 m, 4-wire PUR halogen-free jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Torsion capability of 180° per meter with 2,000,000 torsion cycles
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U14-C60UA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
