YG8U24-100UB4XLEAX | Connectors and cables

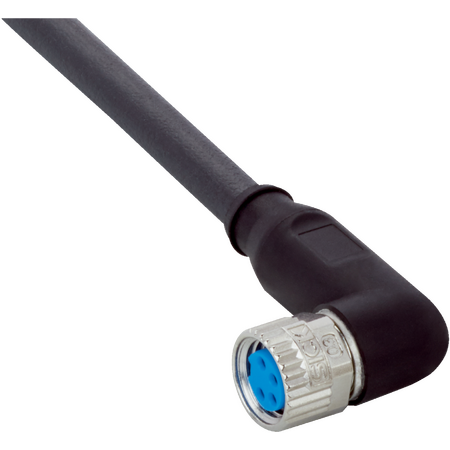

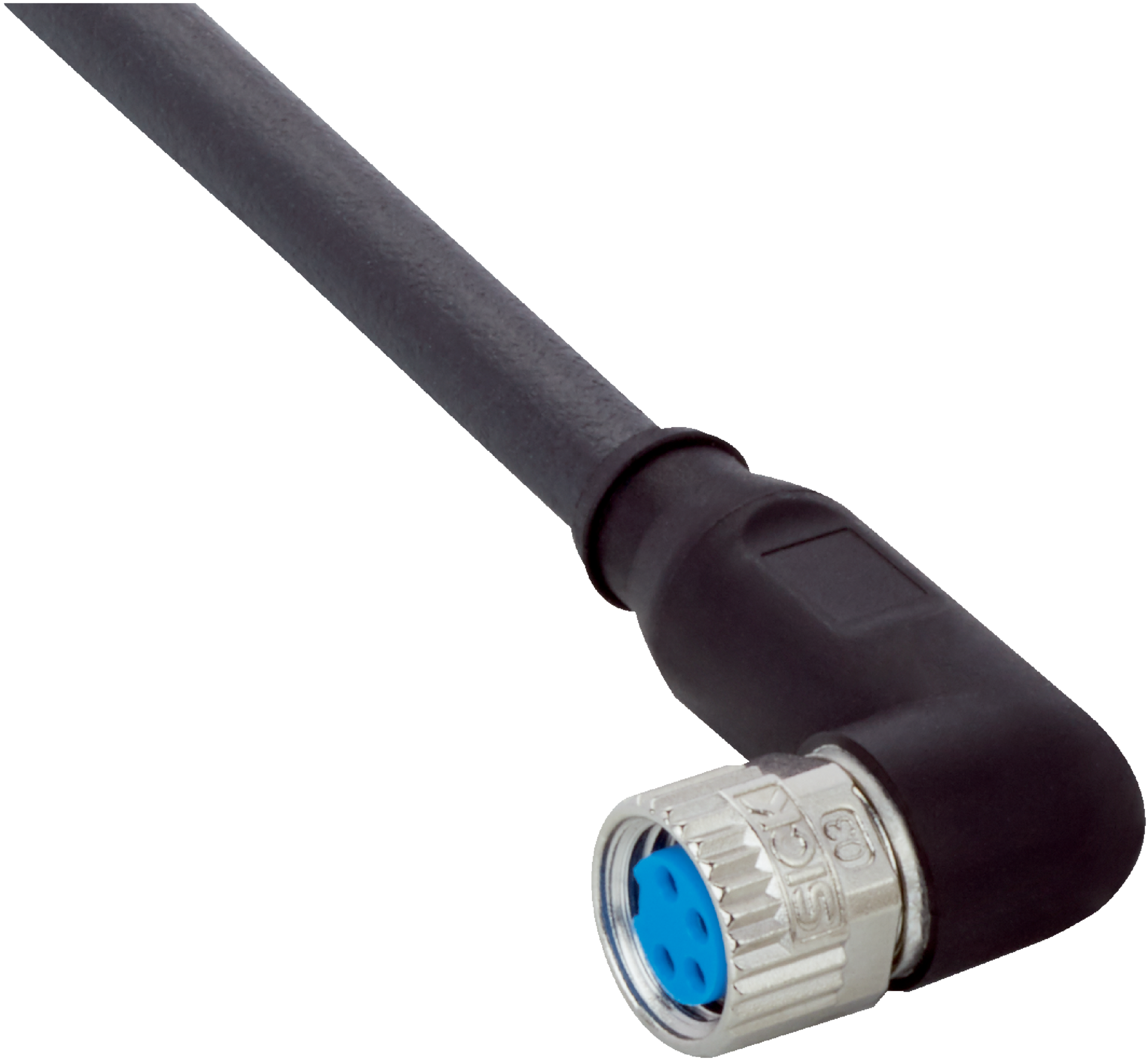

The SICK YG8U24-100UB4XLEAX is a durable sensor/actuator cable featuring a female M8 4-pin angled connector and a 10 m PUR halogen-free cable, designed for industrial automation in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG8U24-100UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2114706
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 4-pin, PUR Sensor Cable, Industrial Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Temperature range flexible use: -25 °C to +80 °C
- Temperature range stationary position: -40 °C to +80 °C
- Temperature range drag chain operation: -25 °C to +80 °C
- Bending cycles: 5,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 10000mm x 9mm
- Weight: 0.15 kg
Key Features
- Female M8, 4-pin angled A-coded connector
- 10 m PUR halogen-free cable with 4 wires
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- High torsion resistance with 2,000,000 torsion cycles
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U24-100UB4XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and reliable connectivity.
