YI2A14-100UB3N2A14 | Connectors and cables

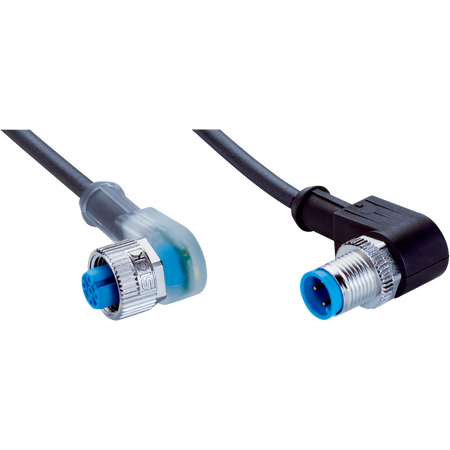

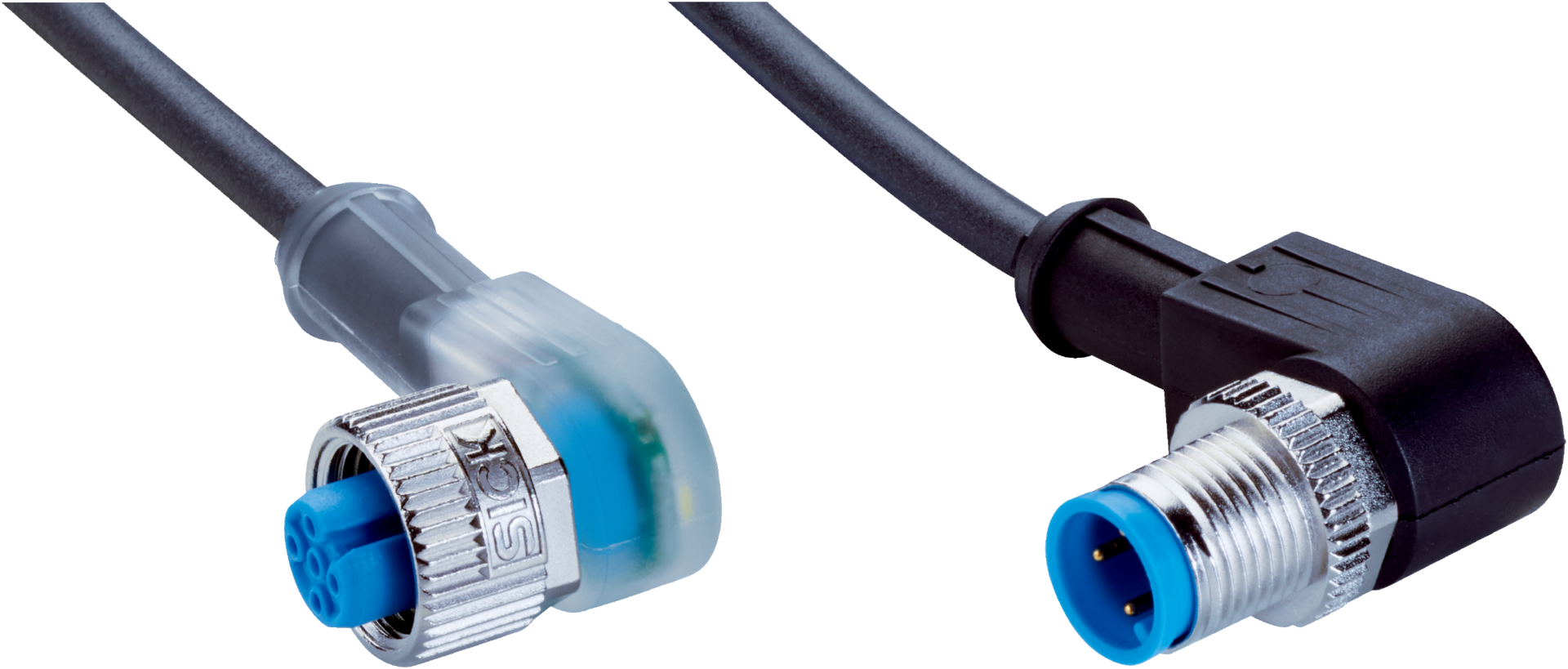

The SICK YI2A14-100UB3N2A14 is a durable M12 4-pin sensor/actuator cable with angled connectors, LED indicator, and high resistance to bending and torsion, ideal for industrial automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YI2A14-100UB3N2A14 | Connectors and cables
Brand: SICK
SKU: 2145705
Alternatively Known As: M12 4-pin sensor cable, M12 angled connector cable, sensor actuator cable 10m, PUR halogen-free cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Male connector, M12, 4-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 10,000,000
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Current loading: 4 A
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Rated impulse voltage: 0.8 kV
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded on head A
- Male connector, M12, 4-pin, angled, A-coded on head B
- Screw connection locking plug
- TPU connector material with zinc die-cast, nickel-plated locking nut
- PUR halogen-free cable jacket
- 10 m length, 4-wire cable with 0.34 mm² conductor cross section
- Unshielded cable
- LED function indicator
- High bending radius and torsion cycles for durability
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67
- Suitable only for PNP sensors
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YI2A14-100UB3N2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
