YI2A15-C60UB5XLEAX | Connectors and cables

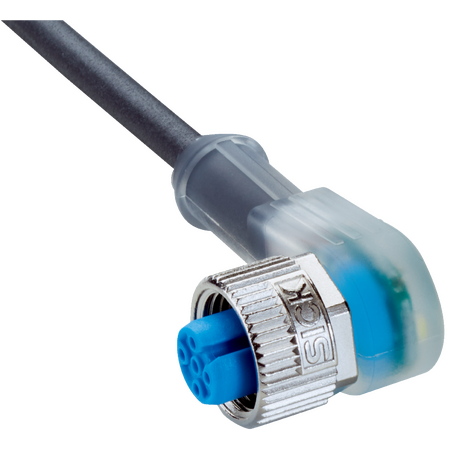

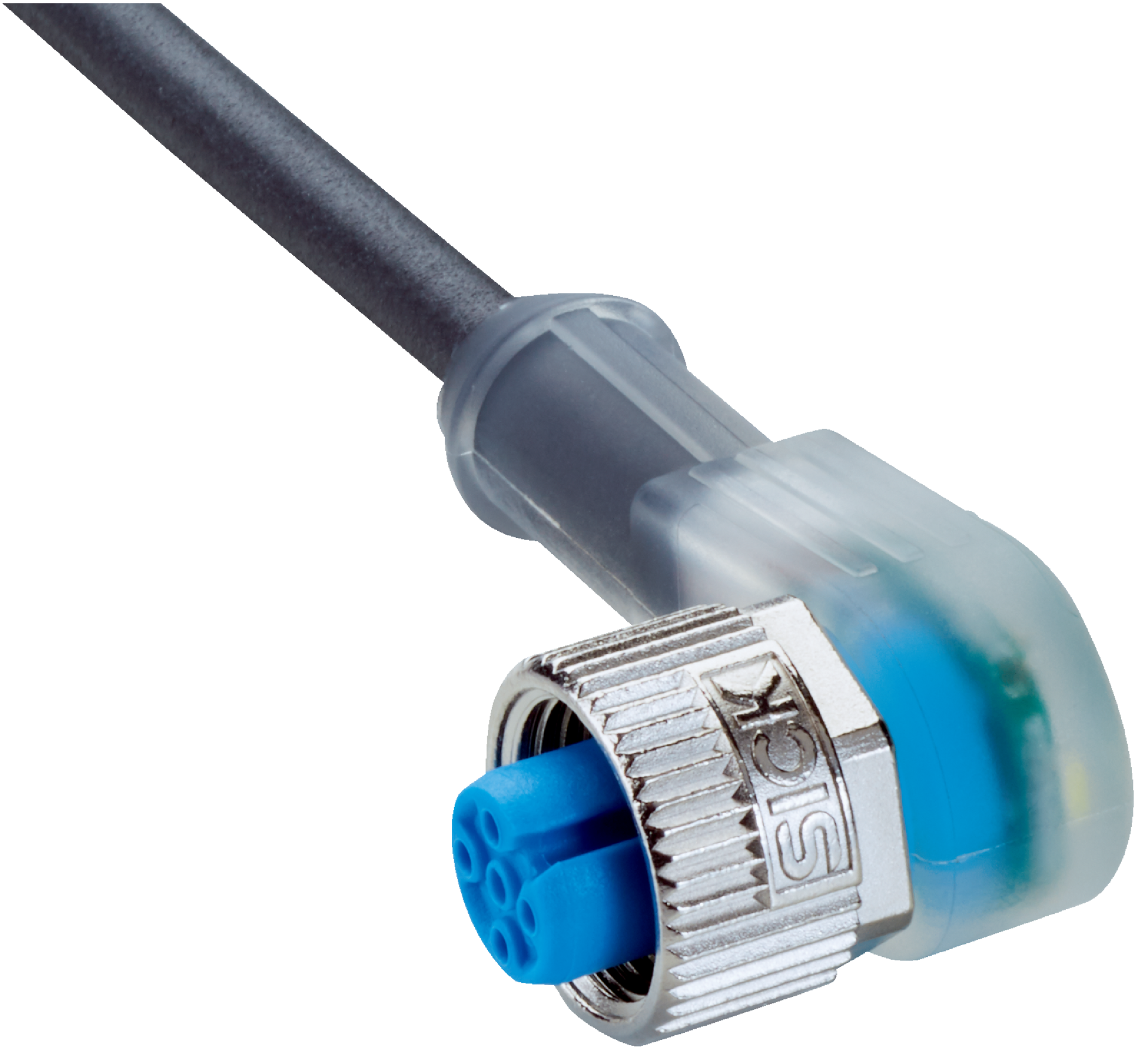

The SICK YI2A15-C60UB5XLEAX is a durable M12 5-pin female connector cable with a 0.6m halogen-free PUR jacket, designed for sensor and actuator applications in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YI2A15-C60UB5XLEAX | Connectors and cables
Brand: SICK
SKU: 2145544
Alternatively Known As: M12 5-pin female connector cable, SICK sensor cable, angled M12 connector cable, PUR halogen-free sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –40 °C to +80 °C, Drag chain operation –25 °C to +80 °C
- Bending cycles: 10,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,500 V AC
- Reference voltage: 24 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, angled, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast, nickel-plated locking nut
- Halogen-free PUR cable jacket
- LED function indicator
- High bending radius and torsion cycles for durability
- IP65 / IP66K / IP67 enclosure rating
- Suitable only for PNP sensors
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YI2A15-C60UB5XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
