YI8U14-030UA3XLEAX | Connectors and cables

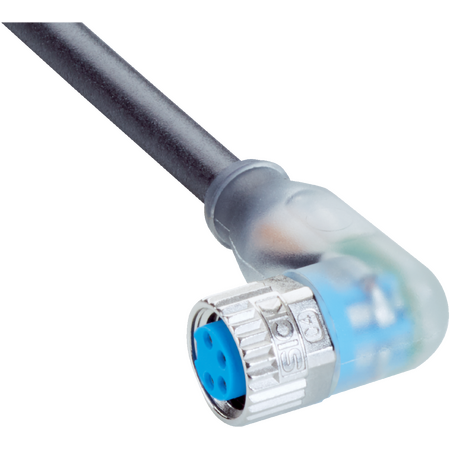

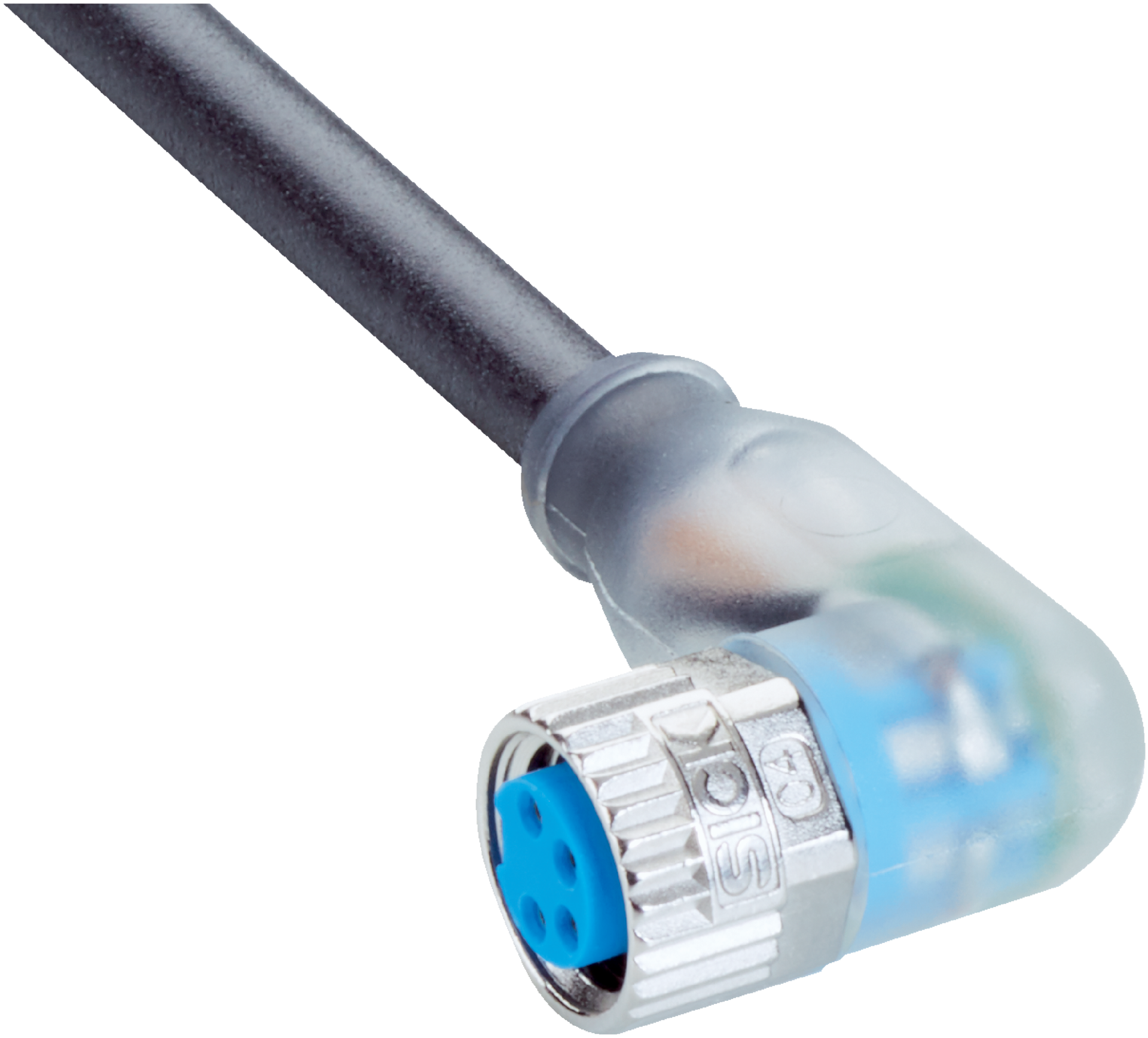

The SICK YI8U14-030UA3XLEAX is a high-quality sensor/actuator cable featuring a female M8 4-pin angled connector, 3 m halogen-free PUR cable, and robust IP65/IP66K/IP67 protection, ideal for industrial automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YI8U14-030UA3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145833
Alternatively Known As: M8 4-pin sensor cable, SICK sensor cable, actuator cable with M8 connector, PUR sensor cable, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 3 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Temperature range flexible use: -25 °C to +80 °C
- Temperature range stationary position: -40 °C to +80 °C
- Temperature range drag chain operation: -25 °C to +80 °C
- Bending cycles: 10,000,000
- Display LED: Yes
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 24 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 3000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled, A-coded
- Screw connection locking plug connector
- Transparent TPU connector material
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 3 m, 4-wire, PUR, halogen-free cable
- Cable diameter 4.5 mm, conductor cross section 0.25 mm²
- Unshielded cable
- Bending radius suitable for flexible use, stationary position, and drag chain operation
- Display LED indicator
- Nominal voltage 300 V AC, test voltage 2,500 V AC
- Current loading 4 A
- IP65 / IP66K / IP67 enclosure rating
- LED function indicator
- Operating temperature range from -40 °C to +85 °C depending on use
- Flame retardant cable according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YI8U14-030UA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
