YI8U14-C60UA3M2A14 | Connectors and cables

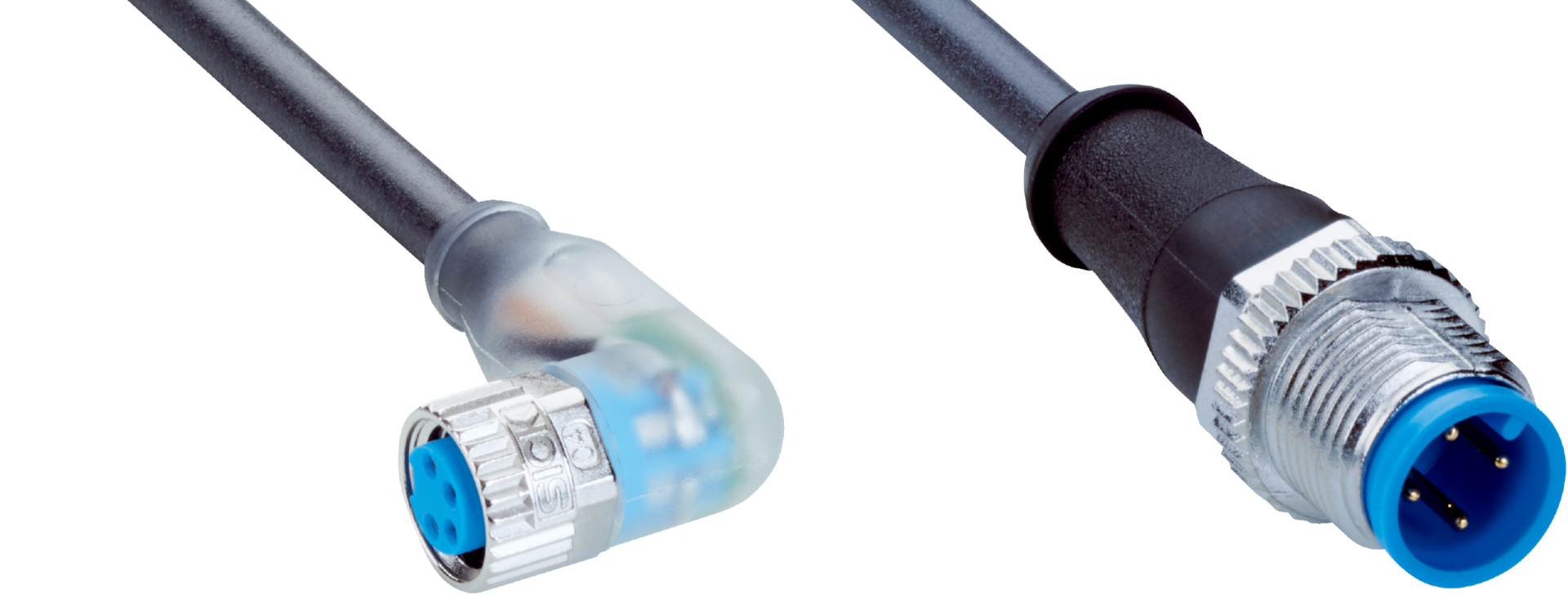

The SICK YI8U14-C60UA3M2A14 is a durable sensor/actuator cable featuring M8 and M12 connectors, designed for use in robotics and industrial automation with high resistance to bending, torsion, and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

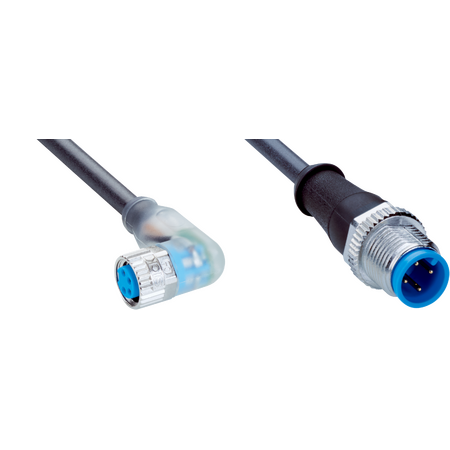

Product Name/Title: YI8U14-C60UA3M2A14 | Connectors and cables
Brand: SICK
SKU: 2122408
Alternatively Known As: Sensor cable M8 to M12, Actuator cable, Industrial connector cable, Robot sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable length: 0.6 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Reference voltage: 24 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –40 °C to +80 °C, Drag chain operation –25 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled, A-coded
- Male connector, M12, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with zinc die-cast, nickel-plated locking nut
- Cable: 0.6 m, 4-wire, PUR, halogen-free
- Operating temperature range: -40 °C to +85 °C depending on use
- Enclosure rating: IP65 / IP66K / IP67
- High bending and torsion resistance with 10,000,000 bending cycles and 2,000,000 torsion cycles
- Suitable only for PNP sensors
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YI8U14-C60UA3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
