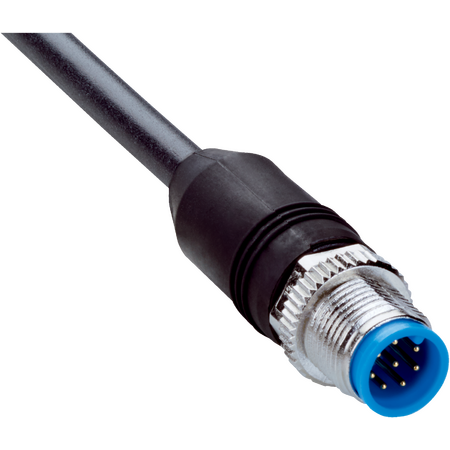

YM2A18-150UA5XLEAX | Connectors and cables

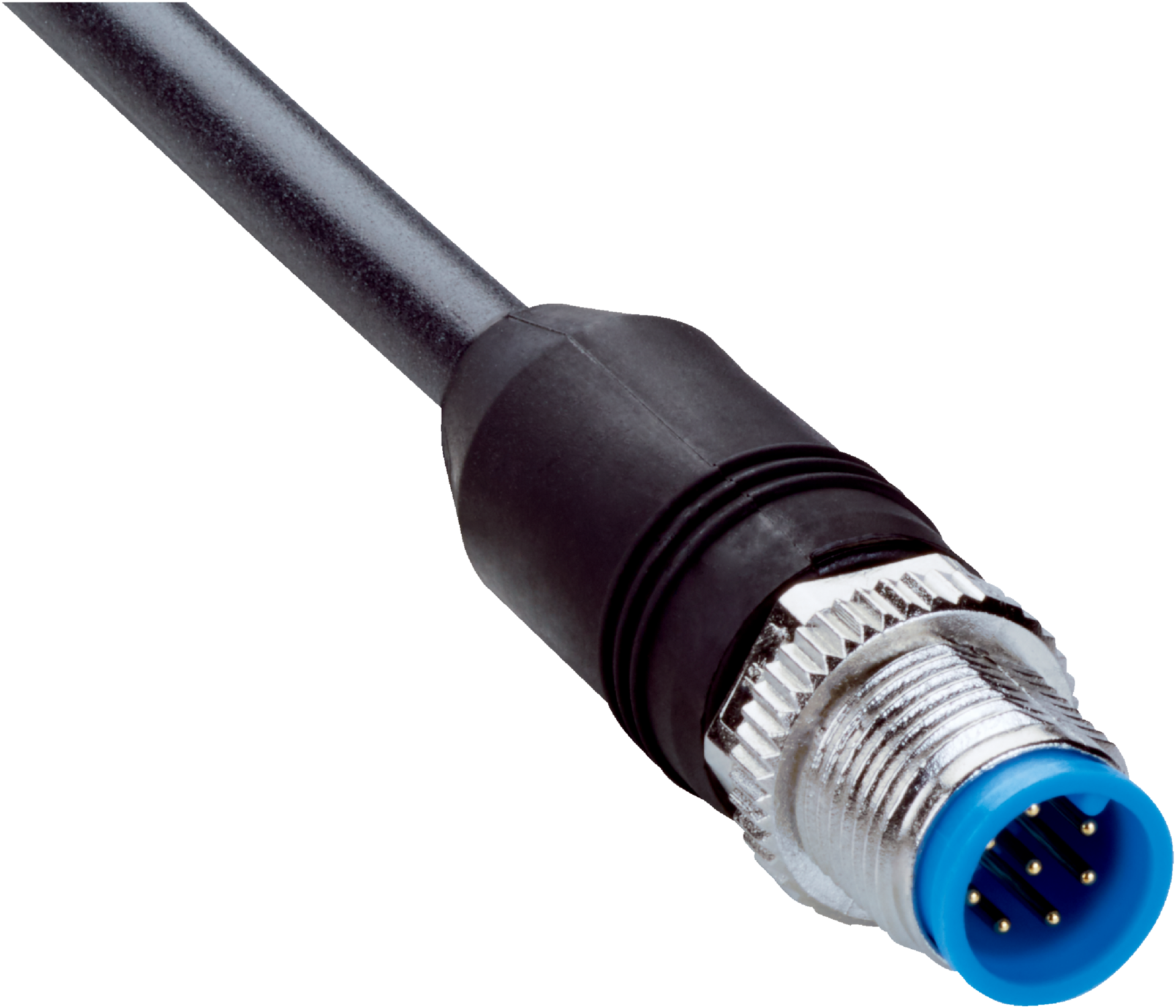

The SICK YM2A18-150UA5XLEAX is a durable M12 8-pin male connector cable with a 15 m PUR halogen-free jacket, designed for sensor and actuator applications in industrial automation, robotics, and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A18-150UA5XLEAX | Connectors and cables
Brand: SICK
SKU: 2104371
Alternatively Known As: M12 8-pin male connector cable, sensor actuator cable, PUR cable M12 connector, industrial automation connector cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 15 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Reference voltage: 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12, 8-pin, straight, A-coded connector
- 15 m PUR halogen-free cable with 8 wires
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Torsion capability of 180° per meter with 2,000,000 torsion cycles
- Nominal voltage of 300 V AC and current loading of 2 A
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator connections in automation systems
- Robotics and drag chain operations
- Use in uncontaminated zones and zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire
- Flame retardant materials enhance fire safety compliance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YM2A18-150UA5XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor/actuator applications.
