YM2A24-050UB4XLEAX | Connectors and cables

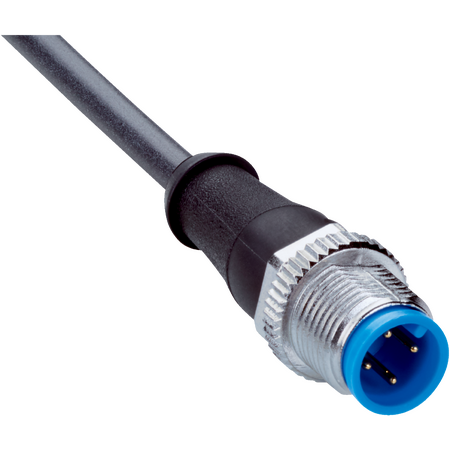

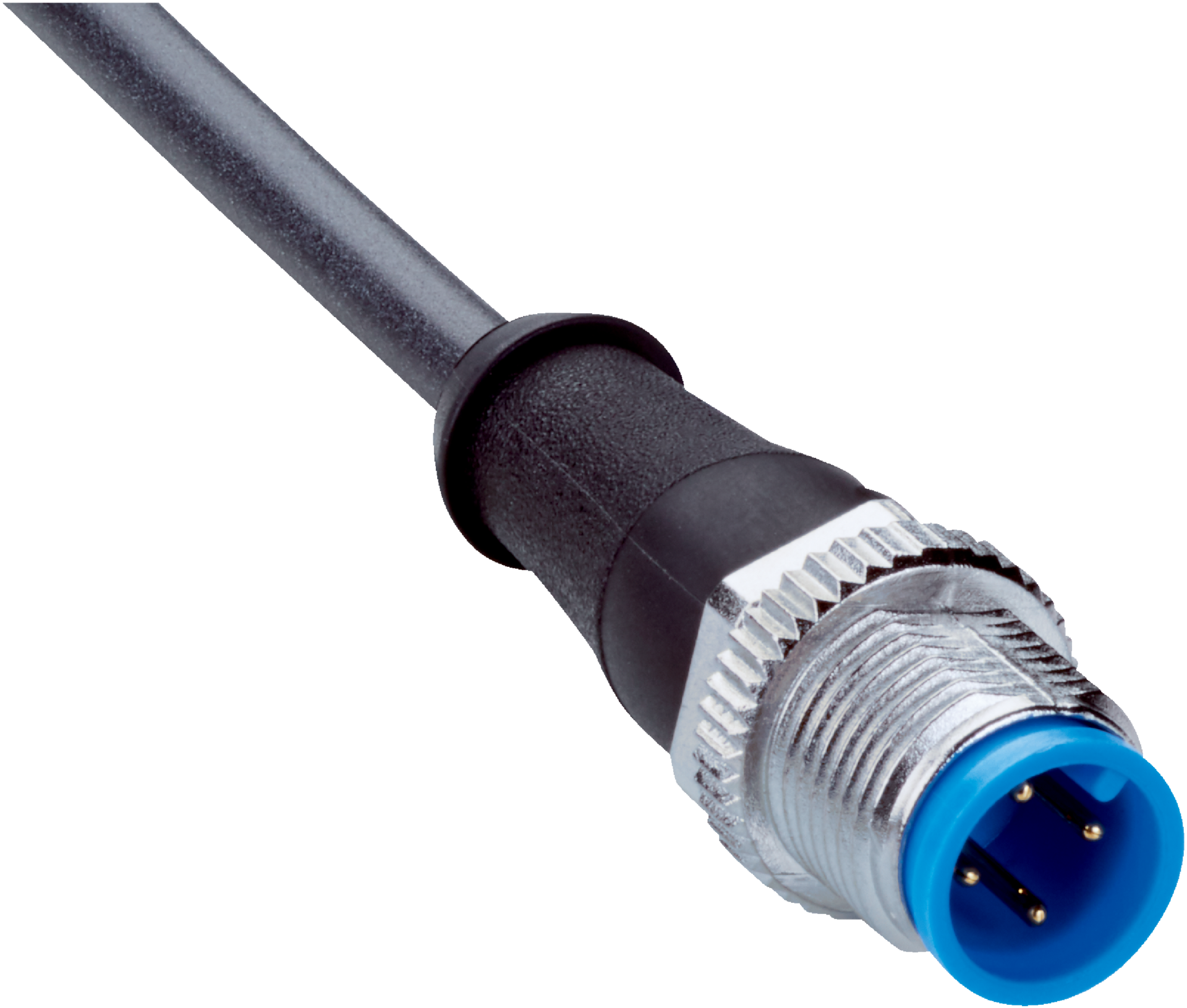

The SICK YM2A24-050UB4XLEAX is a durable sensor/actuator cable featuring a male M12 4-pin connector and flying leads, designed for use in robots and drag chain operations with high flexibility and robust environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A24-050UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2114709
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 4-pin, Robot Sensor Cable, Drag Chain Cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector material: TPU with zinc die-cast nickel-plated locking nut
- Cable: 5 m, 4-wire, PUR, halogen-free
- Bending radius suitable for flexible use, stationary position, and drag chain operation
- High bending cycles up to 10,000,000
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading up to 4 A
- Enclosure rating IP65 / IP66K / IP67
- Operating temperature range from -40 °C to +85 °C depending on use
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A24-050UB4XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
