YM2A24-C50UB4XLEAX | Connectors and cables

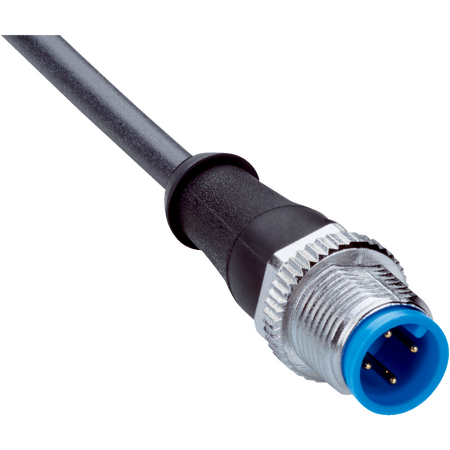

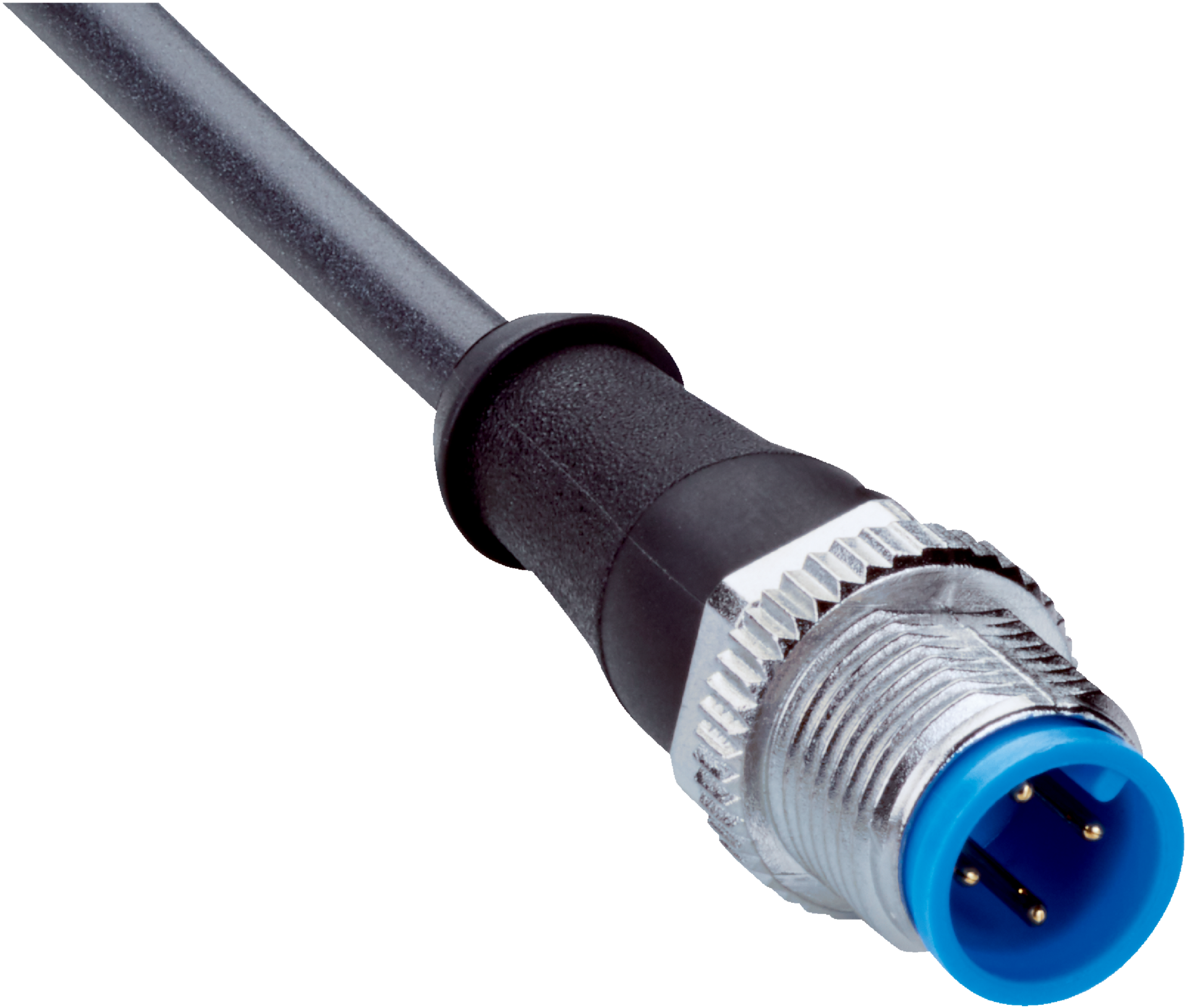

The SICK YM2A24-C50UB4XLEAX is a robust M12 4-pin male connector with a 0.5 m PUR halogen-free cable designed for sensor and actuator applications in industrial environments including robots and drag chains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A24-C50UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2114712
Alternatively Known As: M12 4-pin male connector cable, Sensor actuator cable M12, PUR cable connector, Industrial sensor cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 0.5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Bending cycles: 10,000,000
- Signal type: Sensor/actuator cable
- Overvoltage category: III
- Insulation resistance: 100 MΩ
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 500mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, straight, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 0.5 m PUR halogen-free cable, 4-wire, black jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- High durability with 10,000,000 bending cycles and 2,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones
- Zones with oils and lubricants
- Robot and drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM2A24-C50UB4XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring durable and reliable connections.
