YM2A28-015UA6XLEAX | Connectors and cables

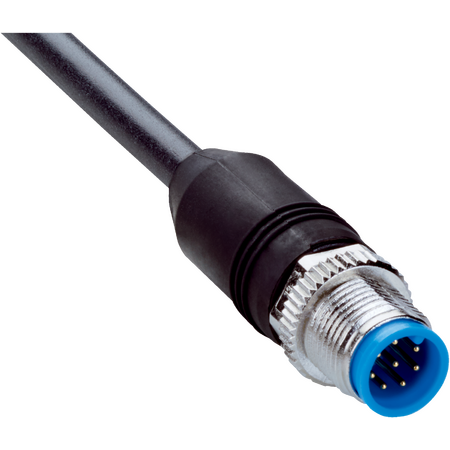

The SICK YM2A28-015UA6XLEAX is a robust M12 8-pin male connector sensor/actuator cable with a 1.5 m PUR halogen-free jacket, designed for industrial automation and robotics applications with high durability and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A28-015UA6XLEAX | Connectors and cables
Brand: SICK
SKU: 2123374
Alternatively Known As: M12 8-pin male sensor cable, M12 8-pin actuator cable, SICK sensor connector cable, industrial sensor cable M12
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1.5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 13mm x 1500mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 8-pin, straight, A-coded
- Shielded sensor/actuator cable with PUR halogen-free jacket
- Screw connection locking plug
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000 with 30°/1 m torsion force
- Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A28-015UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
