YM2A28-050UA6XLEAX | Connectors and cables

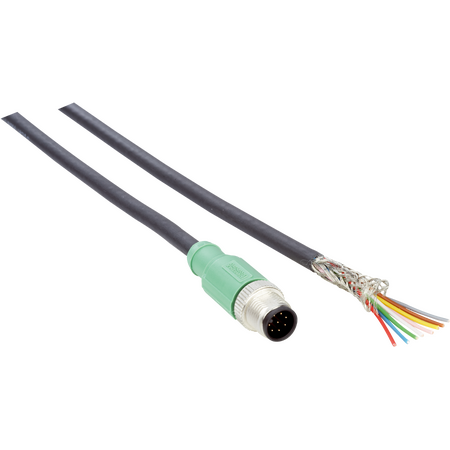

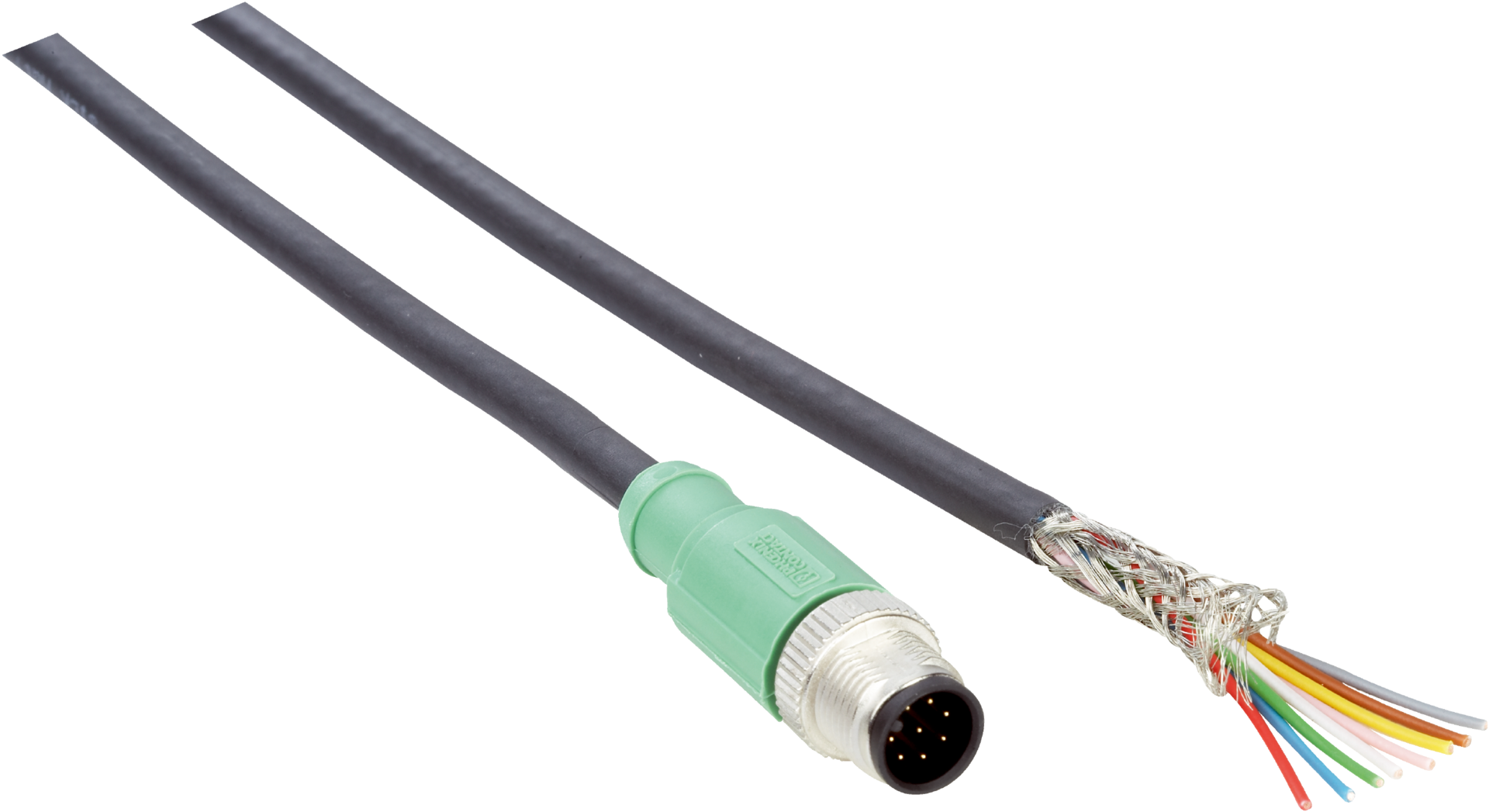

The SICK YM2A28-050UA6XLEAX is a high-quality M12 8-pin male connector with 5 m PUR halogen-free flying leads cable, designed for sensor and actuator applications in industrial automation with robust shielding and IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A28-050UA6XLEAX | Connectors and cables
Brand: SICK
SKU: 6036155
Alternatively Known As: M12 8-pin male connector cable, sensor actuator cable, PUR cable with flying leads, industrial automation connector cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 5.9 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Bending cycles: 2,000,000
- Reference voltage: ≤ 30 V
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.15 kg
Key Features
- Male M12, 8-pin, straight, A-coded connector on head A
- Flying leads on head B with 5 m length
- Cable made of PUR, halogen-free, black jacket
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius for flexible use and stationary position
- Operating temperature range from -40 °C to +90 °C
- Flame retardant cable according to UL 1581 VW1, CSA FT1, IEC 60332-1, IEC 60332-2-2
- Enclosure rating IP65/IP67 for protection against dust and water
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in automation systems
- Robotics and drag chain operations
- Use in uncontaminated zones and zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and flame retardant materials increase product lifespan and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A28-050UA6XLEAX connector cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable sensor and actuator connections.
