YM2A2B-200UD3XLEAX | Connectors and cables

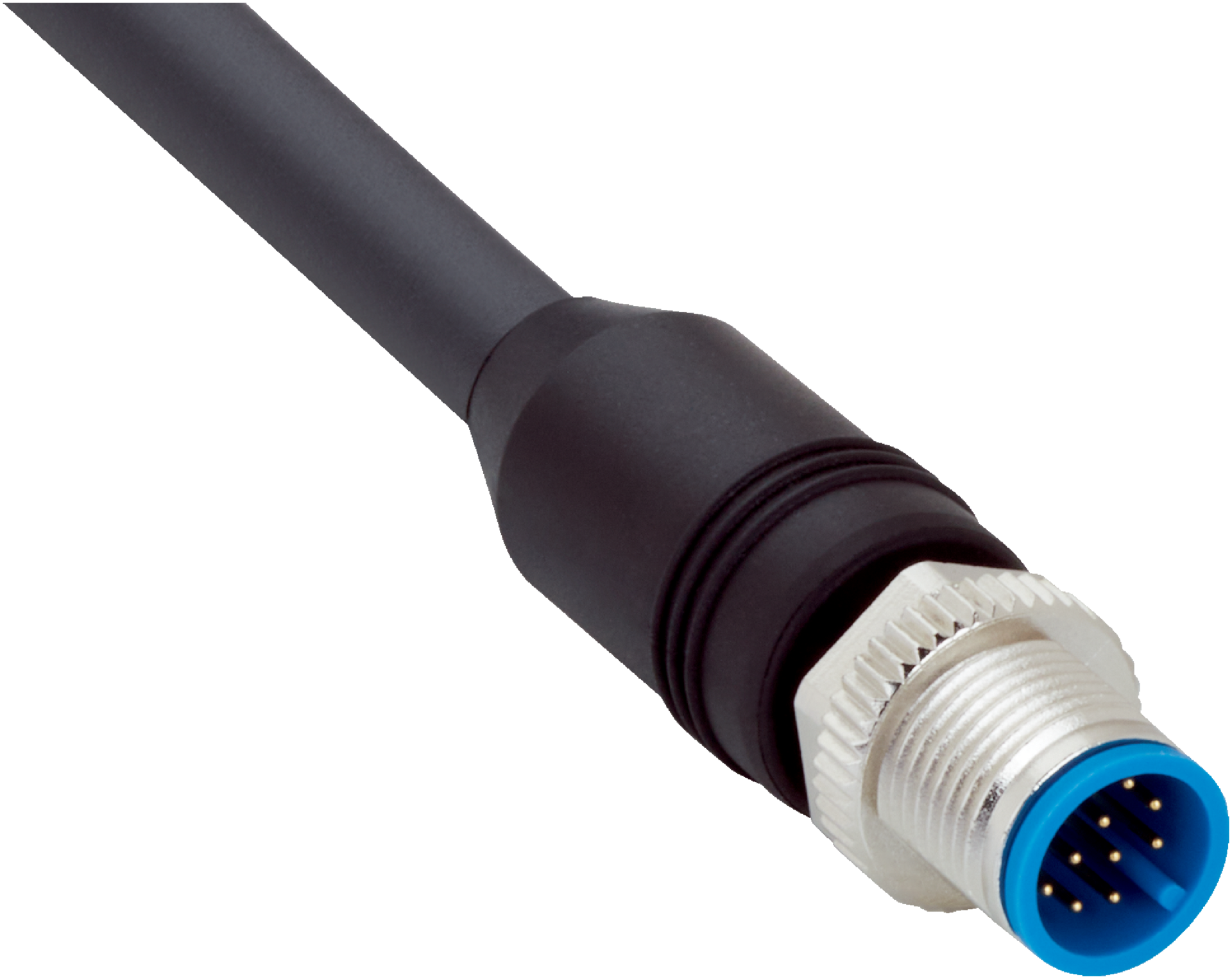

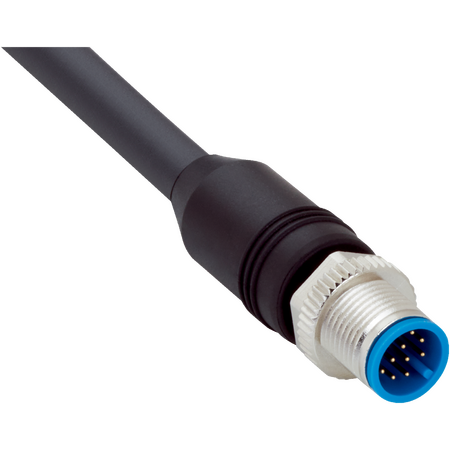

The SICK YM2A2B-200UD3XLEAX is a robust M12 12-pin male connector with flying leads, designed for sensor and actuator cable applications in industrial environments including robots and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A2B-200UD3XLEAX | Connectors and cables
Brand: SICK
SKU: 2131095
Alternatively Known As: M12 12-pin male connector cable, sensor actuator cable, industrial connector cable, PUR halogen-free cable assembly
Technical Specifications
- Connection type head A: Male connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 20 m
- Cable type: 12-wire, PUR, halogen-free
- Cable diameter: 7.2 mm
- Conductor cross section: 2 x 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 5,000,000
- Torsion cycles: 500,000
- Rated impulse voltage: 0.8 kV
- Current loading: 1.5 A
- Enclosure rating: IP65 / IP66K / IP67
- Overvoltage category: III
- Signal type: Sensor/actuator cable
- Dimensions (H x L x W): 20mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 12-pin, straight, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 20 m PUR halogen-free cable with 12 wires
- Shielded cable with 7.2 mm diameter
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Rated impulse voltage of 0.8 kV and current loading of 1.5 A
- High durability with 5,000,000 bending cycles and 500,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials and high cycle ratings reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2A2B-200UD3XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor/actuator applications.
