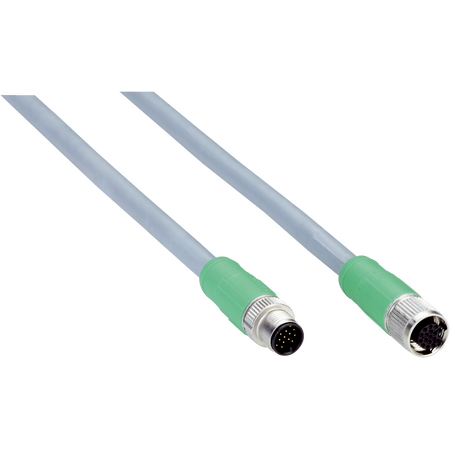

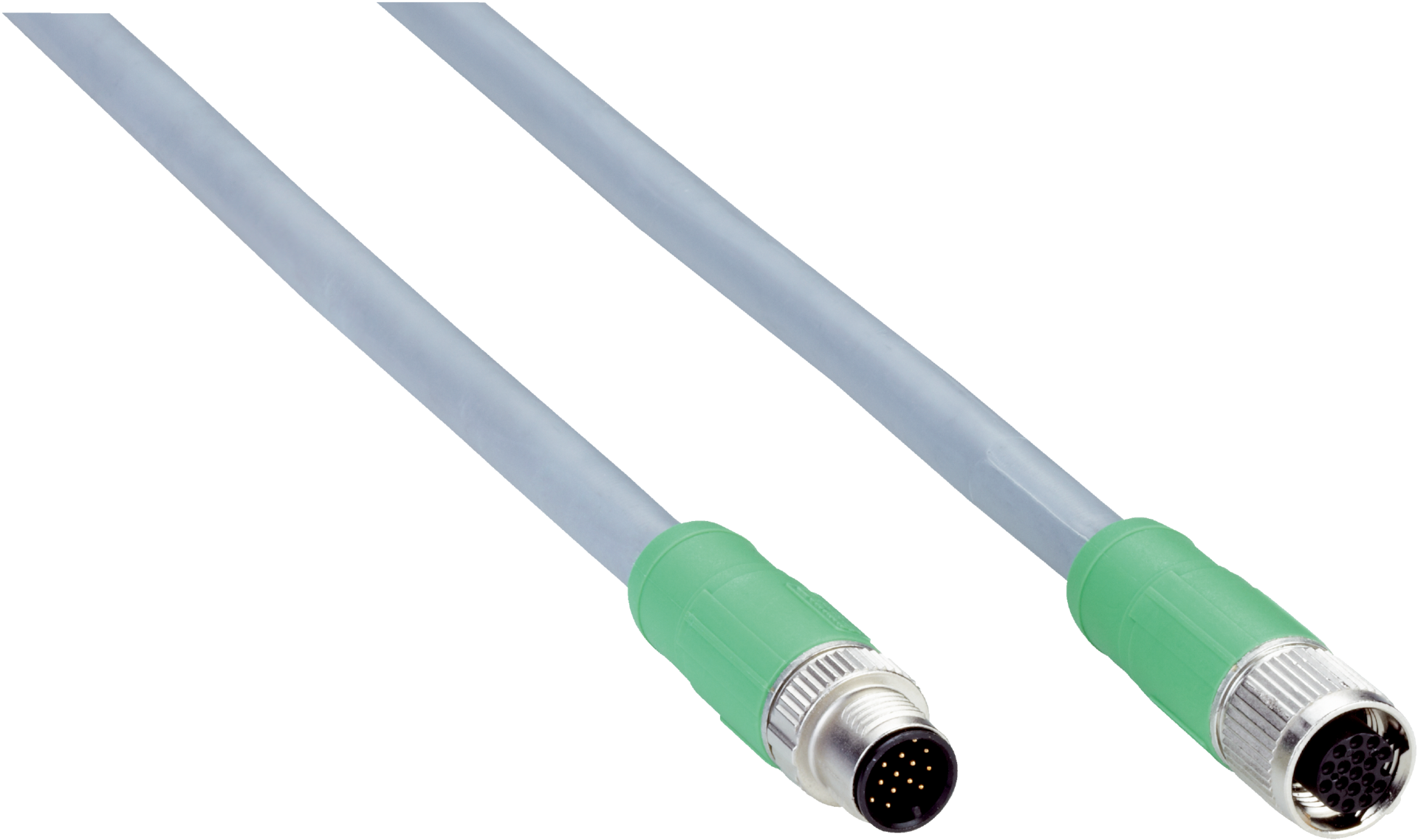

The SICK YM2A8D-C90XXXF2A8D is a high-quality M12 17-pin connector cable designed for industrial applications requiring reliable power and data transmission with robust IP68 protection and excellent flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YM2A8D-C90XXXF2A8D | Connectors and cables
Brand: SICK
SKU: 6052945
Alternatively Known As: M12 17-pin connector cable, M12 A-coded cable, Industrial connector cable, Shielded M12 cable
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Male connector, M12, 17-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Cable length: 0.9 m
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Signal type: Power, serial, CAN, digital I/Os
- Special feature: Suitable for 2 A
- Application: Drag chain operation
- Enclosure rating: IP68
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Dimensions (H x L x W): 15mm x 900mm x 15mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 17-pin, straight, A-coded connectors
- Quick screw locking plug connector for secure connections
- Shielded 0.9 m, 17-wire cable with 9.1 mm diameter
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Durable for 1,000,000 bending cycles
- Operating temperature range from -40 °C to +80 °C
- Enclosure rating IP68 for dust and water resistance
- Suitable for 2 A current
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Power, serial, CAN, and digital I/O signal transmission
- Drag chain operation environments requiring flexible and durable cabling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A8D-C90XXXF2A8D connector cable is available now for immediate purchase. Ideal for industrial automation and control system applications requiring robust and flexible cabling.
