YN2X18-050EG1M2X18 | Connectors and cables

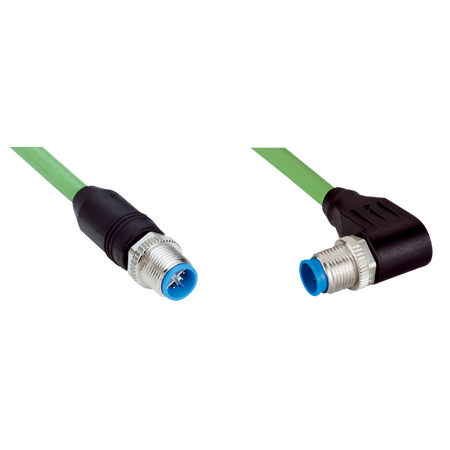

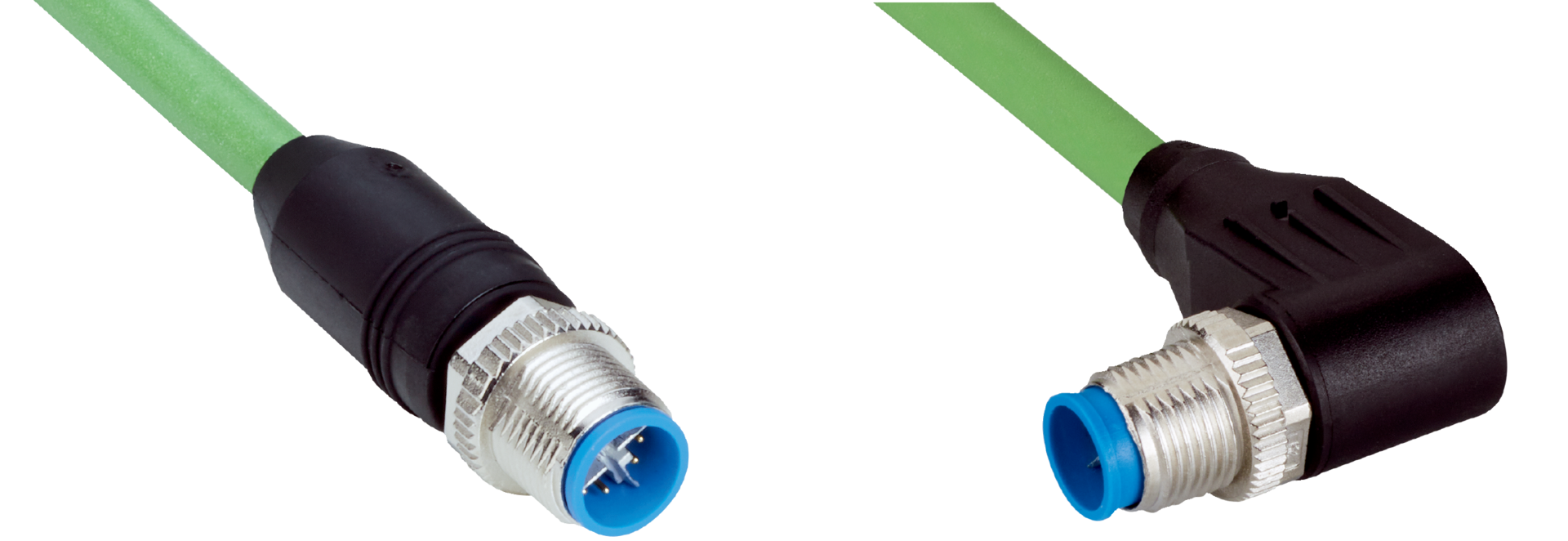

The SICK YN2X18-050EG1M2X18 is a high-performance M12 8-pin X-coded Ethernet cable connector with a 5 m shielded PUR cable, designed for industrial Ethernet applications in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YN2X18-050EG1M2X18 | Connectors and cables
Brand: SICK
SKU: 2150033
Alternatively Known As: M12 X-coded Ethernet Cable, Industrial Ethernet Connector, Shielded M12 Ethernet Cable
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, M12, 8-pin, angled, X-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature head: -25 °C to +85 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 10mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 8-pin connectors, straight and angled, X-coded for Ethernet
- Shielded PUR cable, halogen-free with 5 m length
- High data transmission rate up to 10 Gbit/s (CAT6A)
- IP65 / IP66K / IP67 rated for dust and water protection
- Flame retardant cable jacket according to UL 1581 and IEC 60332-1-2
- Screw locking plug connector with zinc die-cast nickel-plated nut
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission for automation and control systems
- Environments requiring robust, shielded Ethernet cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YN2X18-050EG1M2X18 Ethernet cable connector is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and reliable connections.
