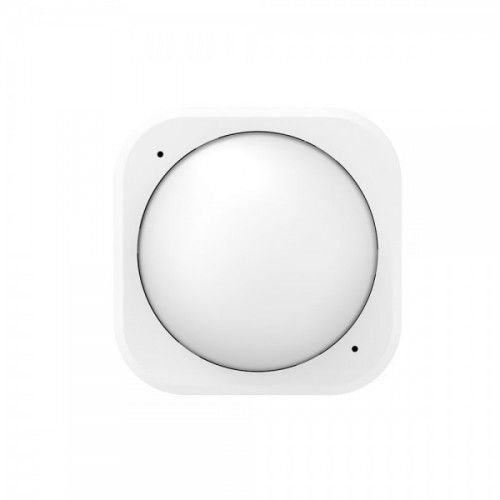

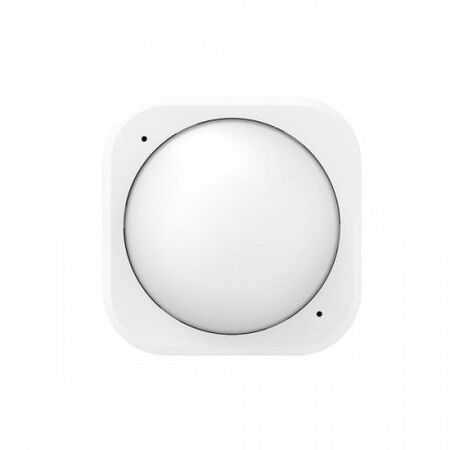

Z-Wave Multisensor 6 Motion Temperature and Light Detection Ness
Ness Z-Wave Multisensor 6 features motion, temperature and light detection. Ideal for smart home and alarm automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 106-234 MultiSensor 6, Aeotec MultiSensor 6, ZW100 Z-Wave Sensor, 6-in-1 Smart Home Sensor
Technical Specifications
- Model: 106-234 / ZW100
- Wireless Protocol: Z-Wave Plus
- Sensors: Motion, temperature, humidity, light, ultraviolet and vibration
- Motion Detection Range: Up to 5 m
- Motion Detection Field of View: 120°
- Temperature Measurement Range: -10°C to 50°C
- Temperature Accuracy: ±1°C
- Light Measurement Range: 0 to 30,000 lux
- Power Supply: USB DC 5 V or 2 x CR123A batteries
- Battery Life: Up to approximately 24 months, depending on usage
- Operating Temperature: 0°C to 40°C
- Ingress Protection: IP20
- Australian Frequency: 921.42 MHz
- Dimensions (H x L x W): 38mm x 47mm x 47mm
- Weight: 0.1 kg
Key Features
- Six integrated sensors for motion, temperature, humidity, light, UV and vibration monitoring
- Z-Wave Plus wireless communication for smart home and alarm automation
- Motion detection with up to 5 m range and 120° field of view
- Can be powered by USB or two non-rechargeable CR123A batteries
- Configurable reporting and motion timeout settings
- Tamper and vibration detection
- Suitable for wall, ceiling, corner or shelf mounting
- Designed for use with compatible Z-Wave gateways and controllers
Applications
- Smart home automation
- Alarm and security system integration
- Occupancy and presence detection
- Automated lighting and scene control
- Room temperature and humidity monitoring
- HVAC, fan and ventilation automation
- UV, ambient light and vibration monitoring
Standards & Compliance
- AS/NZS 4268:2017 – applicable short-range radio device requirements for Z-Wave wireless equipment in Australia and New Zealand
Environmental Benefits
- Supports energy-saving automation by using occupancy, temperature and light data to control connected devices
- Low-power battery operation reduces standby energy use
- USB power option enables use with an efficient low-voltage supply
- Long operating life can reduce battery replacement frequency and product waste
Warranty Information
Three-year warranty against defects from the date of purchase, subject to Ness Corporation warranty terms and conditions.
Available Now
Available through Ness and authorised Australian security, automation and electrical distributors.
